Specifications
Brand Name :
Lingman
Model Number :
F290JF
Place of Origin :
Changzhou, Jiangsu, China
MOQ :
1 set
Price :
USD 3823 set
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
10-15 work days
Packaging Details :
Wood carton
Product name :
simple pneumatic double-acting chuck
Claw stroke :
280mm
Maximum clamping force :
4KN
Allowable pressure :
0.3-0.9MPa
Limit speed :
200r/min
Clamping range :
10-290mm
Central height :
350mm
Rotational inertia :
10.2kg.㎡
Feature :
Higher clamping precision
Description

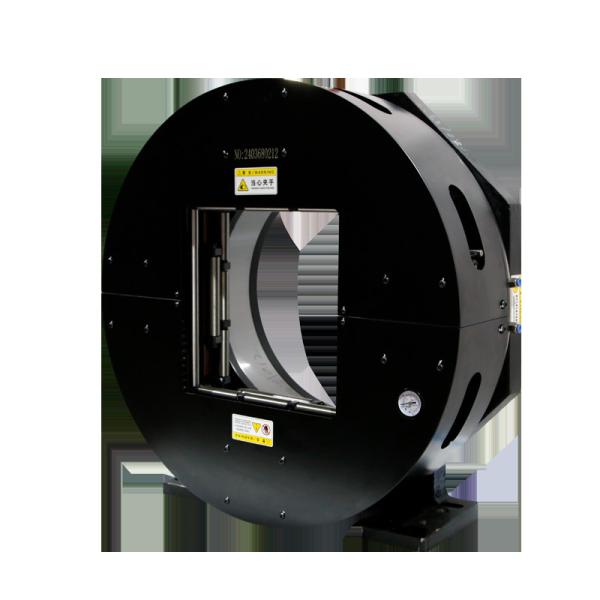

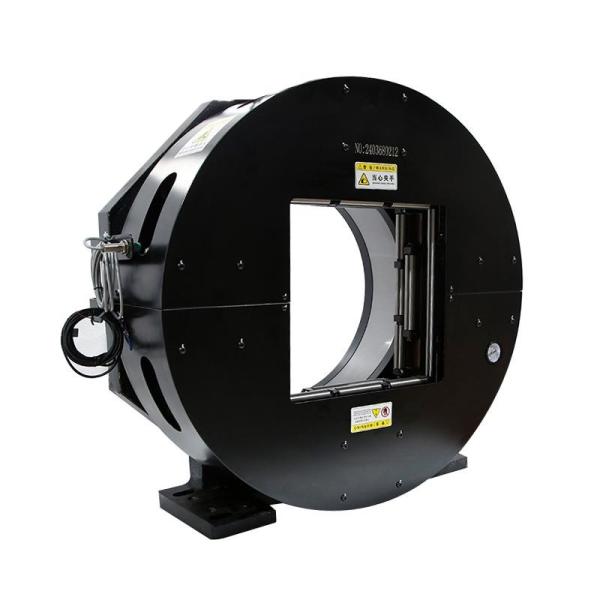

Four-Jaw Pneumatic Chuck Rotary Chuck For Laser Pipe Cutting Machine

1. Description

This chuck is a four-jaw full-stroke main chuck designed for laser tube cutting equipment. This one has a chuck in the middle that can hold the workpiece firmly and rotate at the same time. After the product base is fixed, only the matching motor is added and connected with the gear, and then the compressed air source(0.1-0.9Mpa) is connected to achieve clamping work-piece and driving the work-piece to rotate. The quick clamping and releasing action is realized by rotating the air intake sideways. Compared with similar products on the market, this chuck has higher rotation accuracy and repeatability, and higher clamping force.

The product can be widely used in special-purpose laser pipe cutting machine and other pipe processing machine tool systems.

2. Performance Parameters

Model number

F290JF
Claw stroke 280mm
Maximum clamping force 4KN
Alloable pressure 0.3-0.9MPa
Limit speed 200r/min
Clamping range 10.-290mm
Central height 350mm
Rotational inertia 10.2kg.㎡
Rotating part weight 138kg
Whole unit weight 205kg

Note: above numbers are standard parameters. We can also design products according to clients' special requirements.


3. Advantages

a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life

e. Multiple configurations are available

e.1 Solid or hollow

e.2 Comb-type or mortise-groove type claws

4. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.

6. Production Line
