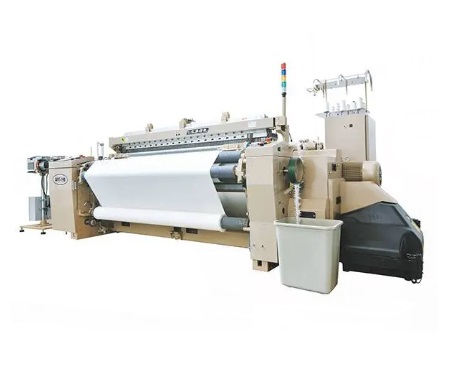

Smart JA93 Air Jet Loom Fabric Weaving Machine Textile Industry
Smart JA93 Air Jet Loom Fabric Weaving Machine Textile Industry
Specifications
Brand Name :
QTC
Model Number :
JA93
Certification :
ISO
Place of Origin :
China
MOQ :
2 sets
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
500 sets / month
Delivery Time :
30-40 days
Packaging Details :
export packing
Reed space :
170 - 390cm
Drive :
Rush start motor
Weft Insertion :
Main and sub-noules combined system
Shedding :
dobby, cam
let-off Flange Dia :
800mm
take-up Dia :
600cm
Mob/Wsap :
+86 15253270037
E-mail :
topbright@yeah.net
Description

JA93 Smart Air Jet Loom Machine Weaving Machinery For Fabric Textile Industry

JA93 series Air Jet Loom is new generation, it is well-developed after years of efforts, its performance can be the first of today's international loom comparable. More reasonable frame and warp tensin control system enables high-speed heavy woven fabric more stable weft insertion system more energy efficient. JA93 series air-jet looms will be its superior performance to lead the Chinese manufacturing industry looms.

Smart JA93 Air Jet Loom Fabric Weaving Machine Textile Industry

1. New super-stable rack
The air jet weaving loom with new rack connections increased rigidity,reducing rack deformation during operation, and enhance the stability of the whole operation is more suitable for high-speed heavy.


2. More support balanced beating
Sley with a power balance arm structure, increasing the beating force is reduced while the maximum level of vibration generated by beating, is to improve the performance of the important part of high speed weaving.


3. Overlapping Taub board structure
Changes need to be changed in the weaving varieties width, the structure can be easily adjusted on the right side brace, brace avoid truncation or replace cloth.


4. New rear spar strucrure
Achieve External easing drive, to facilitate the adjustment and maintenance; about through the tension sensing axis warp tension accurately transmitted to the tension control system; shortened tension Liang length, to prevent weaving heavy fabrics caused by bending of the width direction of the warp tension difference.

Smart JA93 Air Jet Loom Fabric Weaving Machine Textile Industry

Contact us:

Mob/ Whatsapp +86 15253270037

E-mail: topbright@yeah.net

JA93 air jet loom specifications

Item Specification Optional

Reed space		 Nominal 170.190.210.230.250.260.280.300.310.320.340.360.390cm
Useful reed width Same as nominal width maximum
reduction 60cm(190-250crn)
Same as nominal width maximum reduction 80cm(280cm)
Working range Short yam:100S/1 ~5.8S/1
Weft seledion 2-color mixing, 2-color at-will. 4colors. 6colors

Drive

 Rush start motor
Programmed and direet drive &stop mechanism by electromagnet brake
Direct drive motor (directly drive the loom, reduce the energy loss of belt drive, and reduce the weaving cost)

Weft Insertion

 Main and sub-noules combined system Stretching nozzle
Profile reed
Auxiliary main nozzle Double swing main jet
Double fixed main spray
Shedding Positive cam shedding: shaft number up to 10
Dobby shedding: shaft number up to 16
let-off Electronic let-off(el-o)with kickback funcbon
Positive easing
Flange Dia 800mm 914 ,1000mm


Take-up

 MTU:mechanical take-up ETU electronic take-up
Max take-up Dia 600cm
Pick density MTU:6.6 ~80.5 pickes/cm
(16.7 ~204.4pickes/inch)
Length count board display,take the function of fixed measure stop
Temple floor-mounted

Beating

 Crank type beating,multiple sley sword beating
4 links(Reed space 190 ~280cm)
6links(Reed space280 ~360cm)
Intermediate rocking supporter
Measuring/storing FDP Free drum pooling
Filling supply stand Floor-mounted for 4 parckages(2colors),Floor-mounted for 8 parckages(4colors)
Selvedge Planetary gear motion(lenoselvedge of middle cord yam) Electronic edge
Waste filling removal Catch cord type
Cutter Mechanical cutter Electronic scissors
Lubrication Oil bath system for main drive parts,centralized lubrication(manual grease)

Auto-stop motion

 Weft yam Reflective weft feeler
Warp yam Electric feeling system
other Stop motion for selvage and catch cord yam
Stop cause indication Message on board,
4-color lamp for indicating cause
Middle scissors Mechanical type(Tisser double width)
