Specifications
Applications:
1) Germany Sapphire crystal and xenon lamp

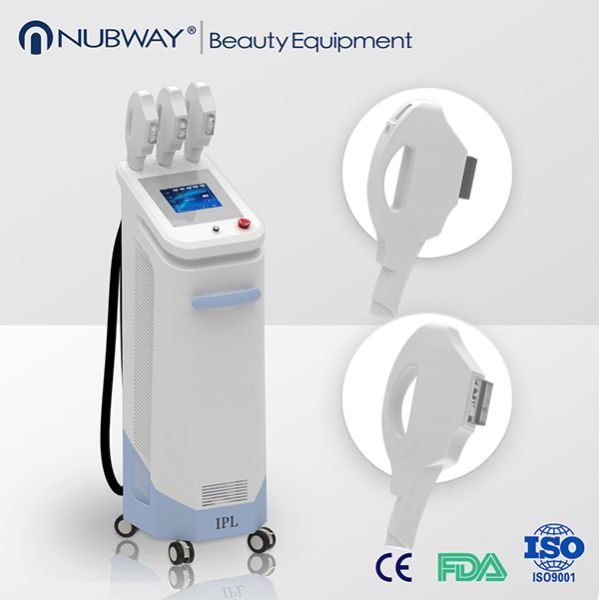

2).Three hand pieces (SR, HR,VR) on the unit
3) 16 * 50 mm large flare depilation crystal For HR/SR/VR, big enough spot can save o lot of treatment time.
4).Germany Special Real Gem, which makes sure the shot pulse 99.9% purity quotient
5) Three capacitances to store power, Capacity is12000uF/one.
6) Super cooling system: Japanese pump + 8 L big water tank +copper condensers + strong Semiconductor+4 big DC fans, which can make sure the machine continue working 12 hours.
7)Permanent hair removal for various hair color
8) Powerful software: the control screen plate can set any shoot number,so it can be used as shoot number, or rent machine to anybody( by setting number of the shoot
Light source | Intense pulsed light |
Spectrum range | SSR:560-1200nm, SHR: 640-1200 nm |
Energy density | 10~50J/cm2 ;10~36J/cm2 |
Pulse method | Intense pulsed technology (adjustable) |
Repeat frequency | 3,4,5,6,10Hz |
Continue working time | 1-60s |
Spot size | 18*34mm, 16*57mm |
Cooling system | Water , air and semiconductor cooling |
Cooling temperature | -4°c~0°c |
Power supply | 220v/50Hz or 110v/60Hz |
Input power | 3000W |
Scope of treatment
Permanently remove unwanted hair on all parts of the body and for hair colors
, more durable.
2. Crystal--Pure sapphire ultilized in the device to let the light illuminate skin well to get best result.
3. Xenon lamp--Xenon lamp imported from Germany to promise long workign life.
Cooling system
Booster pump: High power booster pump, which can output 6.5L water per min, ensure good water circulation.
Water tank: 8L stainless big water tank.
Temperatrure of crystal: The crystal can reach -5 ℃ , when the machine is working. Super strong cooling system has been proved very well.
Copper Radiator: 2 big Japan imported copper radiator much better heat conduction than the Aluminum ones.
DC fans: Copper radiator with 4 big DC fans, strong wind.
Semiconductor cooling pads: 2 electronic cooling pieces in the handle to make its temperature reach 0 celsius degree quickly.
More details
Inside structure: inside structure is very reasonable and every line is clearly, the machine is not easy to have problem and very easy to fix if problem happen. All the spare parts are fixed to a special metal shelf, reduce the harm of the collision during shipping to the least.
Connection: Special screw design in the connector, make the connection firm and never fall off.
Electrode: The electrode connected with the handle adopt the gilded copper-beryllium alloy, which has the excellent electrical conductivity and it is the professional materials specially for the electrode.
Power supply: Special custom-made power supply, stable constant current output,protect the machine and self-designed intelligent control system.
Capacitor: 3 big&professional panosonic capacitor with high quality, durability used in the machine.
1.we supply three years of warranty
2. we supply lifetime after-service for all machines.
