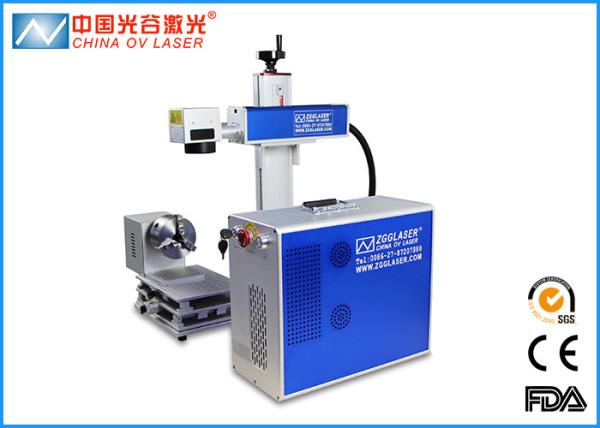

Cheap Laser Marking Machine JPT MOPA Stainless Steel Color Laser Engraving Machine For Sale

Mopa Laser Marking Advantages

The Mopa fiber laser can maintain the peak power at the same level for different pulse repetition frequency. Mopa platform more diversity and flexibility, a wide range of pulse width to ensure that the narrow pulse width conditions to achieve higher peak power. Compare with conventional solid state lasers,the MOPA fiber lasers with higher slope efficiency is more compact and easy to carry,enables higher beam quality of the laser output.

Mopa Laser Marking Content

It can mark time, date,text, serial and part numbers, company logos, icon, symbol,bar codes, or 2D codes,matrix and vector fonts on all plain, painted, powder coated, anodized, or plated metal surfaces, whether they are flat sheets, curved surfaces, or cylinders.

High Quality Spare Parts

1. China Famous JPT MOPA Fiber Laser Source

The Mopa fiber laser can maintain the peak power at the same level for different pulse repetition frequency.

Compare with conventional solid state lasers,the MOPA fiber lasers with higher slope efficiency is more compact and easy to carry,enables higher beam quality of the laser output.It has advantage in high-speed marking application.

2. Digital Galvanometer Scanning Head

Fast speed ablity ＜0.7ms,can realize

high speed marking and high precision.

4. Control System

EZ-CAD control system with stable performance and high reliability.
Shield-utilizing part of complex functions,ensuring higher stability.

5. Red Light Pointer

Adpot double red ligh pointer to show the laser patch since laser beam is invisible..

6. Lifting Handle / Electric Design Optional

Shake hand wheel and electric lifting optional.
Laser focus distance can be adjusted easily.
Operation is simple and convenient.

7. Switching Power supply and Control System

Control system use famous Taiwan ”MW” power supply

with stable performance.

Professional technology and long lifetime.

8. Control Switch

(1)Emergence Stop: Press it when meets error,the machine will stop working immediately to avoid loss.
(2)Key Swith : Using key switch to control the power of the machine.
(3)Power Switch: It is designed as a easy button, safe and efficient.

9. Rotary Device optional for cylinder

Diameter Size: 50mm , 65mm, 80mm, 100mm, 125mm, 160mm etc. Any size be customized.

Technical Parameter Data

After-sale service

1. 24hours Technical support by Email or Calling.

2. English manual and CD video for machine using and maintaining.

3. Hardware: 1 years for machine (without person damaged).

Software: Whole life on update for free.

Maintenance and technological support: Whole life.
