20W Portable Fiber Handheld Laser Marking Machine for Jewelry Stores
20W Portable Fiber Handheld Laser Marking Machine for Jewelry Stores
Specifications
Brand Name :
OV Laser
Model Number :
OV SF-30
Certification :
CE & ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sets / month
Delivery Time :
5-8 days
Packaging Details :
Packed with plywood wooden box which suitable for sea or air shipping .
Product name :
10W/20W Handheld Fiber Laser Marking Machine
HUMIDITY :
5% to 75% (no condensation)
POSITIONING :
Visible red power
Laser power :
20W ( other power can be optional )
Description

20W Portable Fiber Handheld Laser Marking Machine for Jewelry Stores

MACHINE MODEL F10 F20 F30
LASER POWER 10W 20W 30W
LASER WAVELENGTH 1064nm 1064nm 1064nm
FIBER LENGTH 2.5m 2.5m 2.5m
LASER UNIT USING LIFE 100,000hours 100,000 hours 100,000 hours
MARKING SPEED

<= 7000mm/s

Character marking speed and production line speed depend on material , character size and desired marking quality
MARKING SPEED 2-3 digital(2*3mm)/ 0.01s 3-5 digital(2*3mm)/ 0.01s 5-8 digital(2*3mm)/ 0.01s
MARKING DEEPTH 0.01-0.2MM 0.01-0.2MM 0.01-0.5mm
MIN. LINE WIDTH 0.01MM 0.01MM 0.01MM
MIN. CHARACTER HEIGHT 0.2MM 0.2MM 0.2MM
MARKING FILED

(110*110mm

(focal length f=160mm)

(110*110mm (focal length f=160mm)

Optional

175mm lens

(110*110mm (focal length f=160mm)

Optional

175mm lens , 250mm lens
POWER SUPPLY 220V 50HZ / 2A 220V 50HZ/2A 220V 50HZ/2A
POWER CONSUMPTION 300 W/ hours 800W/ HOUR 1000W/HOUR
COOLING AIR AIR AIR
POSITIONING Visible red power Visible red power Visible red power
HUMIDITY 5% to 75% (no condensation) 5% to 75% (no condensation) 5% to 75% (no condensation)

Application

The machine can be used in components of automobile and motorcycle, astronautic apparatuses, chips of integrate circuit electronics, packages of food, drink and cigarettes, keys of mobile phone, batteries, electric apparatuses, fittings and peripheral equipments of computer, ironware tools, stainless steel wares, electric products, communication products, medical devices, sanitation, cleaning and bathing wares, clocks and watches, jewelries, industrial bearings, electric wire and cable, garment.It can mark both words and graphs

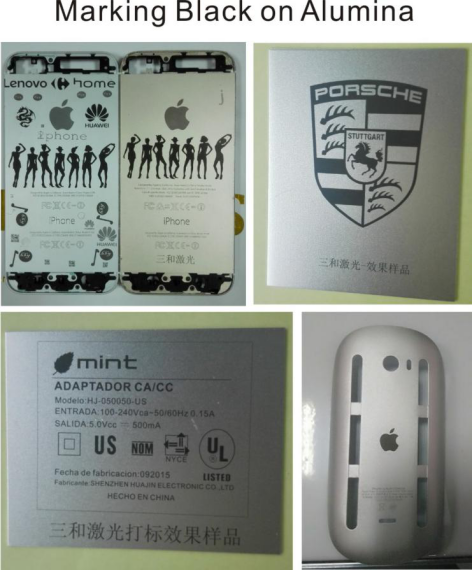

Marking sample

Advantages of mini laser marking

1) Fast processing speed:Its processing speed is 2-3 times of traditional laser marking machine.

2) Good Stability and Free Maintenance: No need maintenance for laser device, also not need adjust or clean the lens.

3) Long Using Time: the average using time more than 100000 hours.

4) Large Marking/Engraving Range: the max rang can be made to 100*100mm

5) Applicable to a variety of materials such as metal and nonmetal.


After-service of laser marking

1. International quality certificate, FDA, CE, SGS, ISO9001

2. 100,000 hours lifetime, free maintenance.

3. 24 months warranty against manufacture defect.

4. Engineers available to service machinery overseas.

5. Free training for machine installation and operation.

Our principle

Perfect products quality is the life of our company;

New technology is the basis of our development;

Innovation is the key point of our progress;

Excellent after-sale service makes us gain wide markets.

Samples

20W Portable Fiber Handheld Laser Marking Machine for Jewelry Stores
