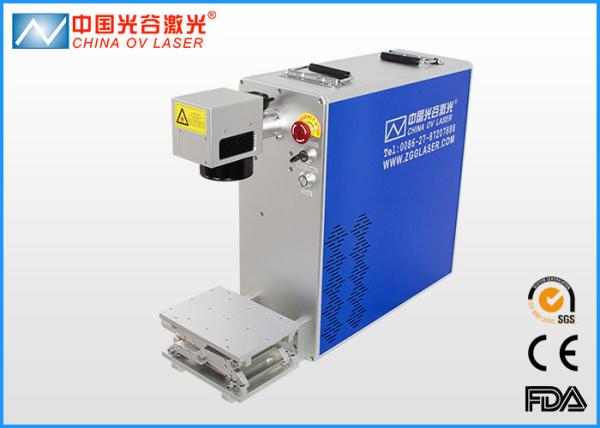

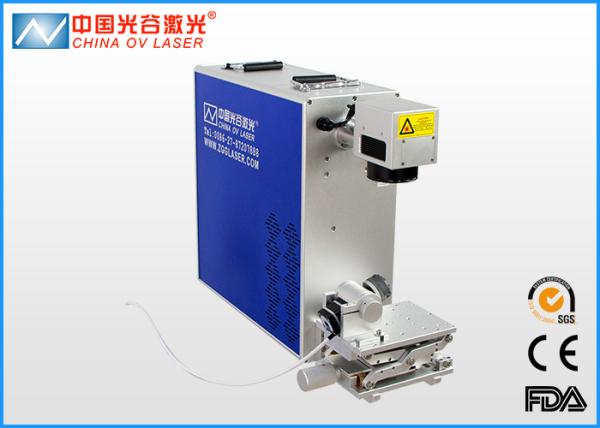

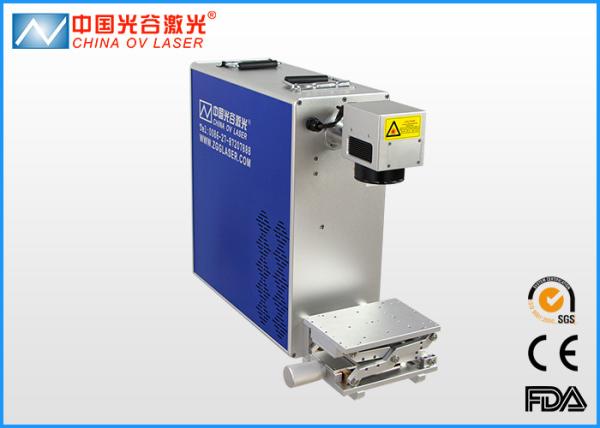

10W Metal Laser Marking Machine , Fiber Laser Marker OV-PM20
10W Metal Laser Marking Machine , Fiber Laser Marker OV-PM20
10W Metal Laser Marking Machine , Fiber Laser Marker OV-PM20
10W Metal Laser Marking Machine , Fiber Laser Marker OV-PM20
10W Metal Laser Marking Machine , Fiber Laser Marker OV-PM20
10W Metal Laser Marking Machine , Fiber Laser Marker OV-PM20
10W Metal Laser Marking Machine , Fiber Laser Marker OV-PM20
10W Metal Laser Marking Machine , Fiber Laser Marker OV-PM20
Specifications
Brand Name :
OV Laser
Model Number :
OV-PM20
Certification :
ISO / CE
Place of Origin :
China (Mainland)
MOQ :
1 set
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
1000 Unit per Month
Delivery Time :
5-7 working days
Packaging Details :
Package have 3 layers : 1. Outside: choose wood craft cse outside, and it is suitable for custom applying and cleaning 2. Middle: use EPS foam in the middle to protect machine from shaking during transporting; 3. Inside: Adopt thick plastic to cover the
Laser Power :
10W/20W/30W/50W (Optional)
Wavelength :
1064±10nm
Marking Area :
70*70/110*110/140*140/175*175/300*300mm(optional)
Power Supply :
AC110V±10%, 60HZ / AC220V±10%, 50HZ
Laser Lifespan :
100,000 hours
Control Software :
EZCAD
Working Accuracy :
0.001mm
Graphic Format :
AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
Description
10W Metal Laser Marking Machine , Fiber Laser Marker OV-PM20

Product Description

Portable laser marking machine Application Materials

Materials
Metal Stainless Steel, Mild Steel, Brass, Aluminium, Iron, Gold, Silver, etc.
Non-metal ABS, Nylon, PES, PVC, Makrolon, etc


Portable laser marking machineApplicable Industries

Application
Electronic Components Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc.
Mechanical Parts Bearings, Gears, Standard Parts, Motor, etc.
Instrument Panel Board, Nameplates, Precision equipment, etc.
Hardware Tools Knives, Tools, Measuring Tools, Cutting Tools, etc.
Automobile Parts Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

Portable laser marking machine Technical Data

Product

OV PM-20 Portable Laser Marking Machine

Power

10W /20W / 30W/ 50W

Optional Marking Area

50mm*50mm / 100mm*100mm / 200mm*200mm / 300mm*300mm

Marking Depth

≤1mm

Marking Speed

7000mm/s

Controller

JCZ (Software--EzCad)

Life-span

100,000-200,000 hours

Cooling Mode

Air cooling--Built-in

Voltage

220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH

Computer Requested

One set of PC included

Dimension (L*W*H)

750mm*200mm*500mm

Package Size

850mm*300mm*600mm

Net Weight

30KG

Optional

Rotary Device, Moving Table, customized Automatic Matching System

Portable laser marking machine Advantages:

Longer Lifespan

China best Raycus laser source lifespan is more than 100,000 hours. That says, if the machine works 10 hours per day, 360 days a year, the laser source can work more than 27 years.

Light pumping YAG: Hundreds hours; Semi-conductor: 10,000 hours.

Lower Use Cost

Air cooling system is built-in, save space;

The fiber laser source works with no need for consumables at least 10 years;

Higher photoelectric conversion efficiency, save electric cost;

Two years warranty, save maintenance cost

More satisfied after sale service

Training videos are copied in USB drive, packed to send customer;

24 hours technician online, prompt reply;

Remote online support;

Engineers overseas avaliable;

Free marking/engraving samples.

Buying Guides

Laser Marking Machine Buying Tips:

Please let us know following information so we can recommend the most suitable model for you:

1. What material you want to process with? (Stainless steel, Aluminum, Wood, Plastic, Jewelry...)

2. Effective marking size? (75*75mm, 110*110mm, 300*300mm ...)

3. Do you need to mark on cylindrical or round surface?

4. Do you purchase for personal use or distribution?

Sampling Show

Customer Feedback
