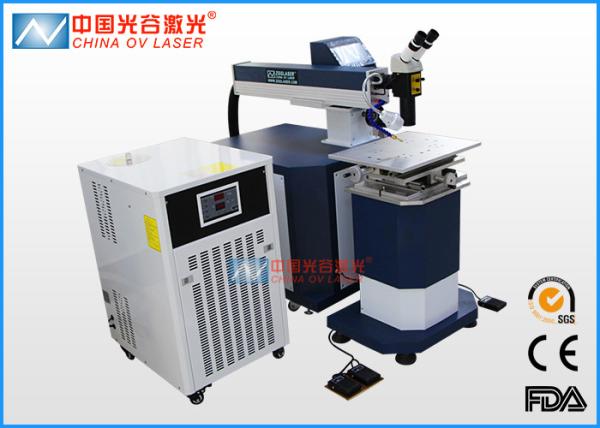

ND YAG Metal Tool Laser Soldering Machine with 3mm Welding Depth
ND YAG Metal Tool Laser Soldering Machine with 3mm Welding Depth
Specifications
Brand Name :
OV LASER
Model Number :
OV- LW400
Certification :
CE ISO9001
Place of Origin :
Wuhan, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
100 sets / month
Delivery Time :
30 - 45 days
Packaging Details :
Standard Ply-wooden case for exporting
Keyword :
Metal Tool Laser Welding Machine
Power requirements :
220V±10%
Pulse Frequency :
1-50Hz
Spot Adjustment Range :
0.2mm-2mm
Power Supply :
380VAC±5%/50Hz/63A
Warranty :
One year
Description

ND YAG Metal Tool Laser Soldering Machine with 3mm Welding Depth

Laser Welding in Metal Tool Mould Industry

In mould and tool making laser metal deposition welding provides a new way of creating novel tool designs as well as the reconditioning of used tools. A great advantage is seen in the ability to establish multiple layers of different materials on one work piece in a single process. This can result in a specific structure of tools that allows a certain hardness or abrasion gradient towards the active surface or even a layer heat transfer inside the tool. One scientific approach is to influence the distribution of carbides. Furthermore the manipulation of the surface tension by the use of specific shielding gases provides an attempt.

Machine Feature

1. Ceramic converging cavity made in UK: corrosion resistant and high temperature resistant, with 8-10 years service life.

2. Most advanced light shielding system can eliminate the irritation to eyes by laser during working.

3. The laser head can rotate for 360°, lift up and down, move left and right, go forward and backward.

4. The parameters are controlled by intelligent remote controller, which is simple and convenient for the operator. simple and convenient for the operator.

5. The work bench can be lifted, and moved in three dimensions.

Parameter Data

Model

OV LW400

Rated output power

400W

Laser Type

Nd:YAG Pulse xenon lamp

Laser Wavelength

1.064μm

Max Pulse Energy

90J/10ms

Pulse width

0.5ms-20ms

Pulse Frequency

1-50Hz

Spot Adjustment Range

0.2mm-2mm

Welding Depth

≤3.0mm

Observing system

Microscope (Optional CCD image amplification monitoring system)

Boom Work Parameters

Three-axis induction infinitely variable speed, working radius1.5m

X=100MM

Y=100MM(Dynamic rocker adjustment)

Z=4800mm 270°Swing welding

X,Y,Z

Work Table

Bearing 200Kg , Panel 500*350mm (50*50mm-M6 location hole)

Table Travel

X=200mm

Y=100(manual control)

Z1=150mm(foot-plate electrical control)

Z2=150mm(manual control)

Maximum Power Consumption

12KW

Cooling System

Integrative forced cooling intelligent water tank

Power Supply

380VAC±5%/50Hz/63A

Working Environment

Clean and dust-free/no source/13℃-28℃

Humidity 5%-75%

Protective Gas

One Way(Argon)

Welding Wire Diameter

0.1mm～0.6mm

Optional

anti-laser glasses/rotary fixture/CCD Monitor

Outline Dimension

(L*W*H)Mainframe:500×1200×1280mm Water Chiller:540×650×780mm(In kind prevail)

Applications
Mainly Used for Mould Making Industry of Cell phone, Digital Products, Auto and Motorcycle, etc.

Applicable Types of Metals

  • Stainless Steels

  • Carbon Steels

  • Gold & Silver

  • Aluminum

  • Tool Steels

  • Nickel Alloys

  • Brass & Copper
