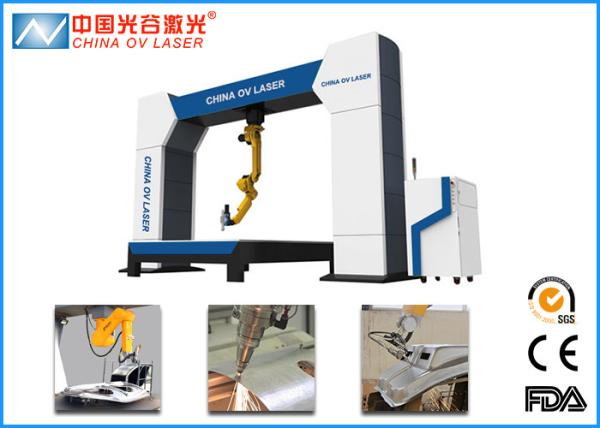

Robotic Arm 10mm Metal 3D Laser Cutting Machine 1070 nm wavelength
Robotic Arm 10mm Metal 3D Laser Cutting Machine 1070 nm wavelength
Specifications
Brand Name :
OV LASER
Model Number :
OV 3DR-2000
Certification :
CE FDA ISO9001
Place of Origin :
Hubei, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
100 sets / month
Delivery Time :
30 - 45 days
Packaging Details :
Standard Wooden Case
Laser wavelength :
1070 nm
Laser Power :
500W 1000W 2000W
Electricity requirements :
380V 50Hz / 60Hz
Position :
CCD or Red Light
Mini Line Width :
0.16mm
Position accuracy :
0.03
Description

Robotic Arm 10mm Metal 3D Laser Cutting Machine with 2000W Fiber

What is Robot Laser Cutting?

OV LASER robot cutting workstation consists of fiber laser source (include laser power supply, water chilling unit, transmission fiber, laser guidance system and so on),laser cutting head (include follow-up sliding table) and robot produced by world famous robot supplier.

Robot laser cutting machine produced by OV LASER is a CNC laser equipment. It consists of world advanced fiber laser source, imported fiber cutting head from America, light follow-up sliding table and 6-axis robot. It Highly integrated laser cutting technology, precision machinery manufacturing and CNC technology.

Applicable Industry

It’s mainly used for carbon steel, stainless steel, spring steel, alloy steel, aluminum alloy and other metal materials such as cutting and forming with the characteristics of high speed, high precision, high efficiency, high performance price ratio and so on. And it’s widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising and other manufacturing industries.

Specification

Model OV-3DR2000
Laser Type Imported Fiber Laser
Laser Power 500W/1000W/2000W According to the material type and thickness of workpiece
Robot specifications IRB2600-20-1.65
Weight bearing of arm ≤20kg
Max radius of arm span 1650mm
2D Working Area 3000mmX1500mm
Axis1(Rotation) 180° to -180° 175°/S
Axis2(Arm) 155° to -95° 175°/S
Axis3(Arm) 75° to -180° 175°/S
Axis4(Wrist) 400° to -400° 360°/S
Axis5(Bending) 120° to -120° 360°/S
Axis1(Turn over) 400° to -400° 360°/S
Robot repetitive of positioning accuracy ±0.03mm
Cutting Speed 0-13m/min According to the power of the selected laser,
material type and thickness of workpiece
Cooling Mode air cooling/ water cooling According to the power of the selected laser
Robot protection lever IP67


Warranty and Service


1) Guarantee for 1 year.
2) Maintenance free of charge for 3 years .
3) We will provide the consumable parts at an agency price.
4) 24 hours online service, free technical support.
5) Machine has been adjusted before delivery, operation disk is included in the delivery.If there is any other questions, pls kindly tell me.
6) We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance.
