ISO9001 CO2 Laser Marking Machine for ABS PVC Polymers PE Plastic Bottles
ISO9001 CO2 Laser Marking Machine for ABS PVC Polymers PE Plastic Bottles
Specifications
Brand Name :
OV Laser
Model Number :
OV LM-30
Certification :
CE & ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000 sets / month
Delivery Time :
5-8 days
Packaging Details :
Packed with plywood wooden box which suitable for sea or air shipping .
Product name :
PE Plastic Bottles CO2 Laser Marking Machine
Adjustable Marking Area :
100mm*100mm/140mm*140mm
Min Character :
0.4mm
Description

CO2 Laser Marking Machine for ABS PVC Polymers PE Plastic Bottles

Model OV LM-20
Max. Laser Power 10W/30W/50W/100W co2 laser wire marking machine
Laser Wavelength 10.64um
Marking Area 70mm*70mm(Standard)
Adjustable Marking Area 100mm*100mm/140mm*140mm
Marking Depth ≤2mm/≤3mm/≤5mm/≤8mm
Marking Linear Speed ≤7000mm/s
Min Linear Width 0.1mm
Min Character 0.4mm
Repetition Accuracy ±0.01mm
Rated Power Consumption 300W/1.2KW/2KW/4.4KW
Supply Voltage 220V/50HZ


OV LM-20 CO2 laser marking machine

CO2 laser device is gas laser device,it can produce 10.6um wavelength which belongs to mid infrared band.

CO2 laser device has large power and higher electronic-optical conversion rate.At present ,this kind of laser device has the largest power.

CO2 laser marking machine adopts America advanced RF metal laser tube and high-speed laser scanning system. Using software control modules,low power consumption,long life marking ,stable and perfect marking quality support . Maintenance-free.

-Advanced metal laser generator RF tube.

-The tube working life is more than 20000 hours

-High precision and permanent marking performance

-Supports continuous 24-hour work load

-Stable water cooling system

-Electric lifting platform,increase marking accuracy.

-Digital scan system,speed increase up 20%

-ISO9001:2008/ce approved

-Customization is available.

co2 laser wire marking machine Application

Applying in alcohol and tobacco packing ,mainly marking security bar code symbol coding ,widely used in cards,hang tags,garment washing,all kinds of tea drinks,medicines and other packing industry,electronic components wood carvings and other products serial number ,serial number,random number ,bar code,2d barcode and various arbitrary patterns and text.

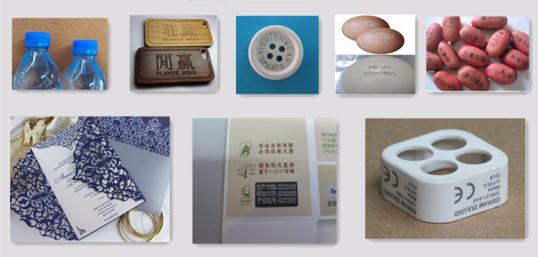

Samples

ISO9001 CO2 Laser Marking Machine for ABS PVC Polymers PE Plastic Bottles
