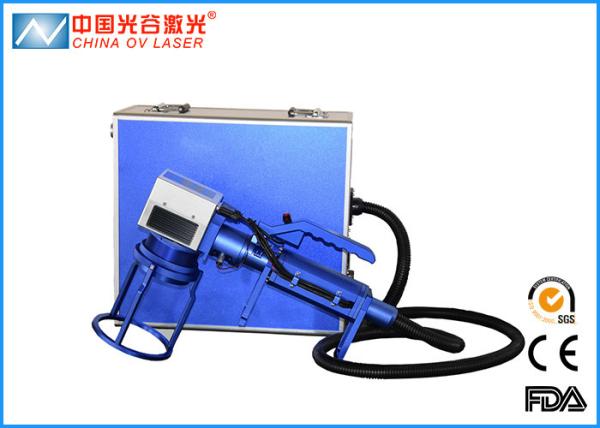

Air Cooling Cnc Laser Marking Machine , Handheld Laser Marker
Air Cooling Cnc Laser Marking Machine , Handheld Laser Marker
Specifications
Brand Name :
OV Laser
Model Number :
OV SF-30
Certification :
CE & ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 sets / month
Delivery Time :
5-8 days
Packaging Details :
Packed with plywood wooden box which suitable for sea or air shipping .
Product name :
cnc Laser Marking Machine
Standard Carving Area :
70x 70mm /90 X90mm/110 x 110mm(Optional)
Power Supply :
AC220V/50Hz5A
Lifespan of Laser Device :
100,000 hrs
Laser power :
20W ( other power can be optional )
Description

Air Cooling Cnc Laser Marking Machine , Handheld Laser Marker

Laser Type Fiber Laser
Working Accuracy ±0.01mm
Brand NameOV OV SF-30(or customized available)
Output Power 10W
Laser Wavelength 1064nm
Light Beam Quality <1.4
Laser Q-Switched Frequency 20KHz~100KHz
Standard Carving Area 70x 70mm /90 X90mm/110 x 110mm(Optional)
Carving Depth ≤0.2mm
Gross Power 500W
Minimum Line Width 0.01mm
Repeating Precision ±0.01mm
Power Supply AC220V/50Hz5A
Carving Speed 7000mm/s
Cooling Mode Air Cooling
Control Software EZCAD Software
Graphic Format Supported AI, DXF, PLT, BMP
Lifespan of Laser Device 100,000 hrs

Advantages of Fiber laser marking equipments


Portable design, easy to operate.
Air-cooling system, maintenance-free.
Compact machine, perfect output beam quality
Long life span (100000 working hours), no consumable parts
Import Germany IPG fiber laser
USB interface, output control
optical scanning system, high laser repetition rate

Product Application

This marking machine can be used in:
1. Metal:stainless steel,hardware,watch&clock,gold&silver jewelry,mould and etc.
2. Non-metal:PVC,PCB circut diagram,ABS casting,Chip industry,plastic marking ,ceramics and etc.
3. Surface treatment field:oil nad ink paint,anodic oxidation, electroplate,electrophoresis,surface marker,metal surface treatment.
4. Micro hole machining,metal wire cut,metal deep marking

Q1. Are you a factory or trading company?

A: Our company is a factory.

Q2. How does your factory do regarding quality control?

A: We use the a thermostat measuring room, three-dimensional measuring instrument, laser dynamometers, digital bridge to check the quality and performance of our industrial laser equipment in each production step.

Q3. What is your payment?

A: T/T and L/C.

Q4. Can your factory print my LOGO on the goods?

A: Yes,it is available.Just need you to send your logo that you want to printed on the goods.

Q5. How long is the warranty period ?

A: 2 year under normal conditions.
