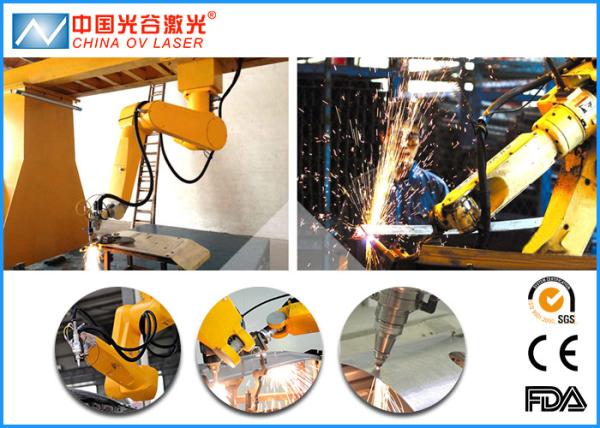

Galvanized Steel Fiber Laser Cutting Machine with 6 Axis Robot Arm
Galvanized Steel Fiber Laser Cutting Machine with 6 Axis Robot Arm
Specifications
Brand Name :
OV LASER
Model Number :
OV 3DR-500
Certification :
CE FDA ISO9001
Place of Origin :
Hubei, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
100 sets / month
Delivery Time :
30 - 45 days
Packaging Details :
Standard Wooden Case
Laser wavelength :
1070 nm
Laser Power :
500W 1000W 2000W
Cooling System :
Water cooling
Electricity requirements :
380V 50Hz / 60Hz
Position :
CCD or Red Light
InstallWay :
Ground or Bearing Pedestal
Mini Line Width :
0.18mm
Robot Weight :
252KG
Description

500W Fiber Galvanized Steel 3D Laser Cutting Machine with 6 Axis Robot Arm

3D Laser Cutting Description

Laser Cutting technology is the best cutting solutions among different various ways. Compared with traditional cutting ways, laser cutting boasts below advantages: small heat deformation, high cutting precision, no pollution, easy to realize automatic cutting. Though machine price is higher, operation costs are very low, very economical and cost effective. It improves efficiency and cutting quality effectively.

Fiber laser technology is a trend, which will gradually replace YAG and Co2 laser technology due to better beam quality, free maintenance, lower operation cost, faster cutting speed, higher conversion rate between electricity and light, etc.

3D laser cutting machine is widely used for metals cutting and metallic tube cutting.

About Six-Axis Robot

1. Six-Axis Robot Technical Data:

Model

RX160 L

Reated Loading

14kg

Max. Loading

28kg

Max. Working Area

2010mm

Axis Number

6

Repetition Precision

<±0.05 mm

Trace Precision

<±0.14 mm

Weight

300kg

Installation Type

Floor Type/Ceiling Type (Optioanl)

Control System

CS8C

Protection Grade

IP65


2. Working Environmental Requirement:

  • Electricity: Three Phases 380V±10%; 50Hz/60Hz
  • Electricity Instability: ±20%
  • Max. Input Power: 7.3KVA
  • Temperature: +5ºC--+55ºC
  • Relative Humidity: 75%RH (short time); 85%RH(within one month)
  • Protection Grade: IP65

About Fiber Laser Source (YLS-50)

1. Specifications

Working Mode

Continuous/Modulation

Wavelength

1070 nm

Rated Output Power

500w ( 700W, 1000W,2000W,3000W optional)

Rated Input Voltage

220±10% VAC

Power Consumption

≤2 KW

Modulation Frequency

1-5 KHz

Beam Quality (BPP)

≥2.0 mm*mrad

2. Laser Source Main Features

  • Excellent beam quality
  • Constant BPP
  • Small facular
  • Conversion rate of electricity and light>25%
  • Free maintenance
  • Modular design
  • Compact size and easy installation


About 3D Laser Cutting Machine

Main Technical Data

Machine Model

OV-3DR500

Robot Brand & Model

STAUBLI (Brand)
RX160L (Model)

Robot Working Radius

2010mm

Robot Max. Loading

28kg

Robot Rated Loading

14kg

Robot Repetition Precision

±0.05mm

Robot Trace Precision

±0.14mm

Axis 1 Max. Speed/Working Range

200°/s ,±160°

Axis 2 Max. Speed/Working Range

200°/s ,±137.5°

Axis 3 Max. Speed/Working Range

255°/s ,±150°

Axis 4 Max. Speed/Working Range

315°/s ,±270°

Axis 5 Max. Speed/Working Range

360°/s ,+120°/-105°

Axis 6 Max. Speed/Working Range

200°/s ,±160°

Fiber Laser Source Power

500W (IPG)

Wavelength

1.070μm

Axis Numbers

6 Axis

Robot Weight

252KG

Min. Line Width

0.18mm

Max. Cutting Speed

It depends on different cutting material and thickness
cutting speed of 1mm stainless: 8m/min.

Cooling System

Water Cooling System

Continuous Working Hours

24 hours

Electricity

380V±10% ;50Hz/60Hz

Coaxial Gas Requirement

1.2MPa
