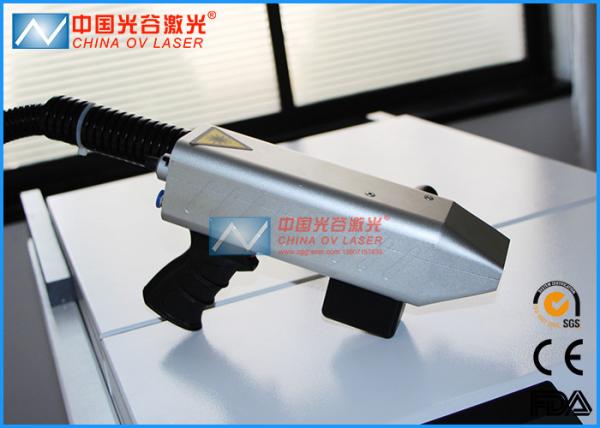

Laser Mould Laser Cleaner Machine For Coating Surface Pre - Treatment
The advantages of laser rust removal :
Compared with traditional cleaning methods such as mechanical friction cleaning, chemical corrosion cleaning, liquid solid strong impact cleaning, high frequency ultrasonic cleaning, laser rust removal has obvious advantages.
1 laser cleaning is a “green” cleaning method, without the use of any chemicals and cleaning fluid, cleaning down the waste is basically solid powder, small size, easy to store, recyclable, can easily solve the chemical cleaning Environmental pollution problems;
2 traditional cleaning methods are often contact cleaning, the surface of the cleaning body has a mechanical force, damage the surface of the object or cleaning the media attached to the surface of the object to be cleaned, can not be removed, resulting in secondary pollution, laser rust removal without grinding and The non-contact makes these problems solved.
Application industry :
Removal for rust, oil stain, grease, dirt, resin, mold release, oil paint, coating, weld residue, oxide, production residue, etc.
OV Q series Laser Rust Removal Machine Tech data
Model |
OV Q100 | OV Q200 | OV Q500 |
Laser power |
100W |
200W | 500W |
Laser gun weight |
1.5KG |
1.5KG |
1.8KG |
Working mode |
Manual or auto |
||
Cable length |
3 Mtrs (can be lengthened) |
||
Work distance |
150mm / 250mm / 500mm |
||
Laser wavelength |
1.064μm |
The practical application of laser cleaning technology :
Joining and Lacquering Pretreatment
Pretreat (locally) the joining parts in the junction area
De-greasing metallic parts (eg removal of drawing compounds)
Removal of passivation as well as oxide and corrosion layers
Roughening of bonding areas (surface extension)
Lower costs due to :
Fully automated in-line cleaning without interruption of the production process
Easy integration into existing manufacturing sequences
High cleaning speeds during the degreasing process
Warranty and Service :
1 . Guarantee for 2 years.
2 . Maintenance free of charge for 2 years .
3 . We will provide the consumable parts at an agency price.
4 . 24 hours online service, free technical support.
