1000W Carbon Steel Tube Laser Cutting Machine for Kitchenware Agricultural Equipment
1000W Carbon Steel Tube Laser Cutting Machine for Kitchenware Agricultural Equipment
Specifications
Brand Name :
OV LASER
Model Number :
OV PC-1000H
Certification :
CE FDA ISO9001
Place of Origin :
Hubei, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
100 sets / month
Delivery Time :
20 - 30 days
Packaging Details :
Exported Wooden Case
Laser Power :
500W - 3000W
Repeat Position Accuracy :
± 0.01mm
Electric Power Supply :
AC380V 50/60Hz
Maximum Loader Weight :
25kg/m
Acceleration :
1g
Cut Tube Type :
Round, Square, Oval, Rectangular, Triangle Tube
Laser Source :
IPG
Cut Tube Diameter :
20mm - 200mm
Description

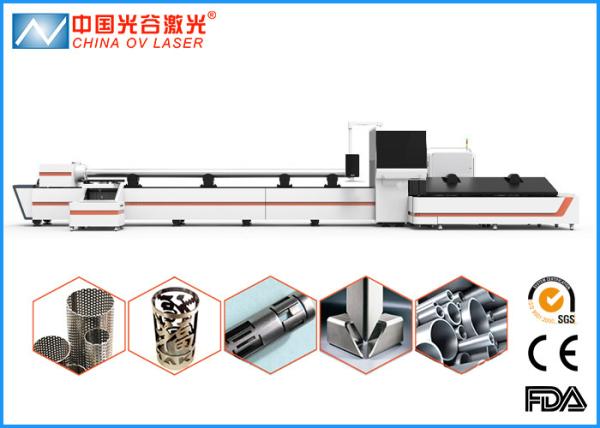

Fiber 1000W Carbon Steel Tube Laser Cutting Machine for Kitchenware Agricultural Equipment

Fiber Laser Cutting Tube Advantages

1. Far more efficient with much lower power consumption

The increased electrical efficiency of fiber laser technology compared to CO2 drastically slashes the electrical consumption of the system, yielding savings on the utility bills and on the initial installation due to reduced requirements.

2. Superior performance in thin wall materials

The faster cutting speed of nitrogen assist fiber laser cutting on thin materials more than doubles machine productivity compared to CO2 cutting: thinner wall mild steel, stainless steel and galvanized are the materials that benefit the most from fiber laser cutting.

3. Zero laser maintenance required

The fiber laser does not require routine adjustments, component replacement or rebuilds. It does not consume laser gas. Laser beam quality is stable and consistant over time. It is ready to cut as soon as you turn it on. No warm up is required.

4. New materials for new opportunities

Copper and brass, materials that cannot be cut with CO2 technology CO2 can be easily cut with fiber laser. Even tricky grades of aluminium and galvanized steel are easily processed.

Application Scope

Materials

Steel (A106, A500 Type 1-5, A513 Type 1-5, A53, ROPS)

Aluminum Grades: (B210, 1100, 2024, 3003, 5052, 6061, 6063)

Stainless Steel Grades:
(A249, A269, 303, 304, 304 L, 309, 310, 316, 316 L, 317L, 410, 416)
Tube Size

Round Tubing : Up to 8 5/8 inch diameter

Square Tubing: Up to 8 inch diameter
Tolerance

± 0.005 inches
Tube Shapes

Round, Square, Rectangular , Oval
Industries

Agricultural, Alternative Energy, Appliance, Automotive, Computers, Construction, Distribution, Electronic, Fabrication, Furniture, Hardware, Health and Fitness, Heating and AC, Heavy Equipment, Lawn and Garden, Material Handling, Petroleum and Mining, Race Car & Stock Car, Refrigeration, Retail & Display, Solar Energy, Wind Energy

Technical Parameter Dada

Laser power 500W/ 700W /1000W /2000W
Laser source IPG fiber laser generator
Laser generator
working mode		 Continuous/Modulation
Beam mode Multimode
Tube processing Φ=20-200mm, L=6m
Tube category Round, square, rectangular, oval tube etc,
(can customize if need to process other tubes)
Rotate speed 60 turn/minute
CNC control Germany PA
Nesting software Spanish Lantek
Power supply AC380V±5% 50Hz (3 phase)
Total electric power 17KW/18KW
Position accuracy 0.2mm
Repeat position accuracy 0.3mm
Maximum position speed 70m/min
Acceleration 0.8g
Format supported Solidworks,Pro/e,UG, etc
Flooring 12m x 4.5m
Machine weight 7.8T
