2 Spindles Double Axis Wood Turning Lathe For Chair Legs
2 Spindles Double Axis Wood Turning Lathe For Chair Legs
2 Spindles Double Axis Wood Turning Lathe For Chair Legs
2 Spindles Double Axis Wood Turning Lathe For Chair Legs
Specifications
Brand Name :
JINAN QUALITY CNC
Model Number :
QCW1516
Certification :
CE
Place of Origin :
JINAN,CHINA(MAINLAND)
MOQ :
1 set
Price :
7900--9000 USD
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
150 Set/Sets per Month
Packaging Details :
Standard export wooden cases
Product name :
Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm Posts, Furniture Columns
Control system :
RichAuto-AutoNow-A132S
Diameter of processing :
20mm-160mm (2-axis working); 20mm—300mm (1-axis working)
Length of processing :
200mm—1500mm (2000mm, 2500 and 3000mm optional)
Number of axis :
2 axis 4 cutters / blades and 2 spindles
Spindle :
Chinese high-quality Changsheng air-cooling 3.5 KW with FULING inverter
Main Rotary Motor :
5.5KW servo spindle with servo inverter
Transmission Method :
X Z axis: Taiwan HIWIN NO.25 square rail & TBI ball screw Y axis: Taiwan HIWIN NO.25 square rail & rack
Package dimension :
3100mm*1280*1750mm
Application :
Chair legs, chair arm posts, furniture columns and other cylindrical workpieces.
Description

Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm Posts, Furniture Columns

What is Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm Posts, Furniture Columns

Double axis wood lathe machine with double turning axis, which can turn 2 pieces wood columns with maximum 160mm diameter and 1500mm length at the same time. The 2 axis wood turning lathe machine processing length can be customized to 2000mm, 2500mm or 3000mm.

Double axis CNC wood lathe is not only used for 2D turning and broaching, but also used for 3D carving and cutting with the additional spindle, now the best 2 axis CNC wood lathe for sale with affordable price.

Advantages of Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm Posts, Furniture Columns

1. The whole lathe machine body is cast iron, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.

2. Double axis can double working efficiency, with 4 pcs wood lathe cutter make the wood cutting more smooth and stable.

3. The wood lathe machine is equipped with 2pcs spindles for twisting, grooving, slotting, etc.

4. The wood lathe adopts advanced DSP system with USB connection, operated with the handle, convenient operation. The lathe can completely work off-line and do not take any computer resources.

5. X and Y axis with Taiwan TBI ball screw and Taiwan Hiwin helical square guide rail with high transmitting precision and longevity. .

6. Y axis with Helical gear transmission way, which makes higher working speed, and with higher weight load, smooth running, and lower noise.

7. Rotating speed is adjusted by inverter, and the speed data is shown on controlling cabinet panel.

8. One time tool setting to finish the whole work piece.

9. Compatible with several CAD/CAM design software.

2 Spindles Double Axis Wood Turning Lathe For Chair Legs
2 Spindles Double Axis Wood Turning Lathe For Chair Legs

Applications of Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm Posts, Furniture Columns

The wood lathe machine is mainly used for staircases, stairway balusters, stairway newel posts, dining table legs, end table legs, sofa table legs, bar stool legs, chair legs, chair arm posts, chair stretchers, bed legs or rails, lamp posts, baseball bats, wood broom handle and other furniture columns.

Double Axis Wood Turning Lathe Machine is equipped with double spindles with the function of carving, slotting, hollowing on wood strip.

2 Spindles Double Axis Wood Turning Lathe For Chair Legs


Technical Parameters of Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm Posts, Furniture Columns

CNC Wood Lathe 1516 ---2 axis 4 cutters 2 spindles
Model QCW1516 with 2 axis 4 cutters 2 spindles
Processing Range

Diameter:

20mm-160mm (2-axis working); 20mm—300mm (1 axis working)

Length: 200mm—1500mm (2000mm, 2500 and 3000mm optional)
Main Rotary Motor 5.5KW servo spindle with servo inverter
Main Rotary Shaft Speed 0-3000r/min
Maximum Processing Speed 2000mm/min
Carving Spindle 3.5KW ChangSheng air-cooling spindle with inverter
Spindle steering device

Universal adjustable without motor

(The spindle can only work horizontally.)
Motor and Driver Stepper motor 450B, 450C and Drive YKA2811MA
Transmission Method

X Z axis: Taiwan HIWIN NO.25 square rail & TBI ball screw

Y axis: Taiwan HIWIN NO.25 square rail & rack

Lathe Frame Cast iron
Cutter brand FUWANG Alloy cutter * 4 sets
Other devices

Auto oil-lubricating system;

Air valve with water and oil separating

Operating System
http://www.richnc.com.cn/en/product/content-23.html

 Controlling Model RichAuto A132 DSP control
Internal Memory 512MB
Display Screen 128*64 Monochrome LCD
Communication Port U disk,USB cable
Breakpoint Processing Function Support
Soft/Hard Limit Support
Password Protection Support
Drawing software Autocad
Handle recognition file format

*.DXF

The engraving file uses G code (*.uoo, *.nc, *.mmg)
Position Precision ±0.01mm
Pneumatic Pressure 0.6-0.8Mpa
Lathe Net / Package Weight 1600 / 1800kg
Lathe Net / Package Dimension 3000*1250*1650mm / 3100mm*1280*1700mm
Power Supply AC380V,3PH,50HZ


Details of Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm Posts, Furniture Columns

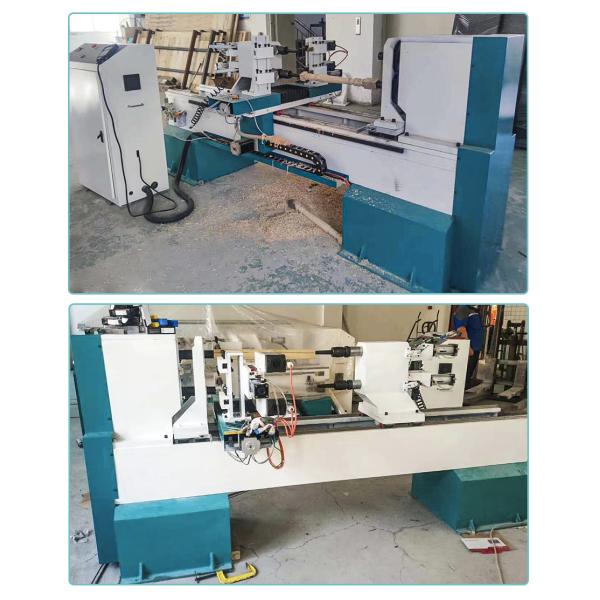

Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm Posts, Furniture Columns in factory:

2 Spindles Double Axis Wood Turning Lathe For Chair Legs

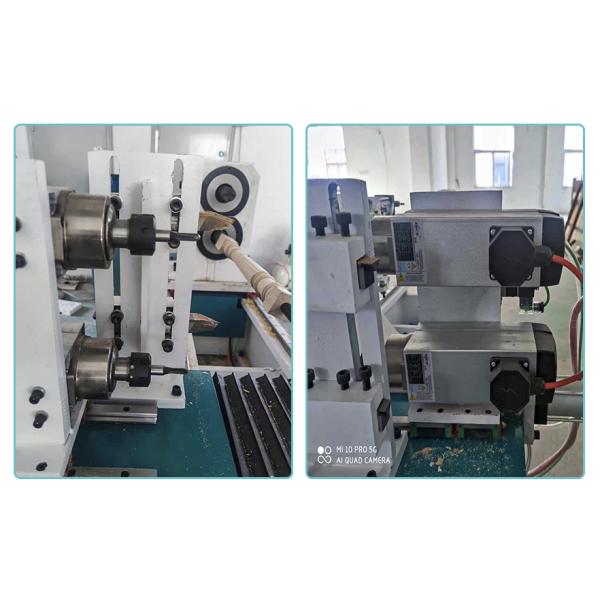

The spindles on Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm Posts, Furniture Columns:

2 Spindles Double Axis Wood Turning Lathe For Chair Legs

The 4 cutters on Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm Posts, Furniture Columns:

2 Spindles Double Axis Wood Turning Lathe For Chair Legs

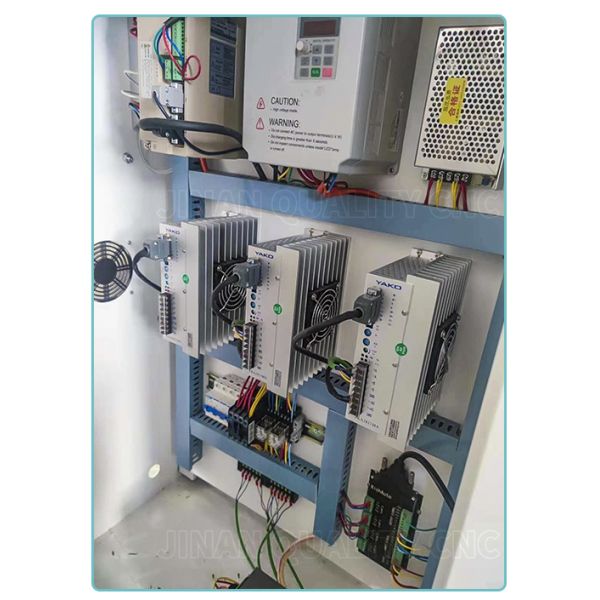

The control cabinet on Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm Posts, Furniture Columns:

2 Spindles Double Axis Wood Turning Lathe For Chair Legs

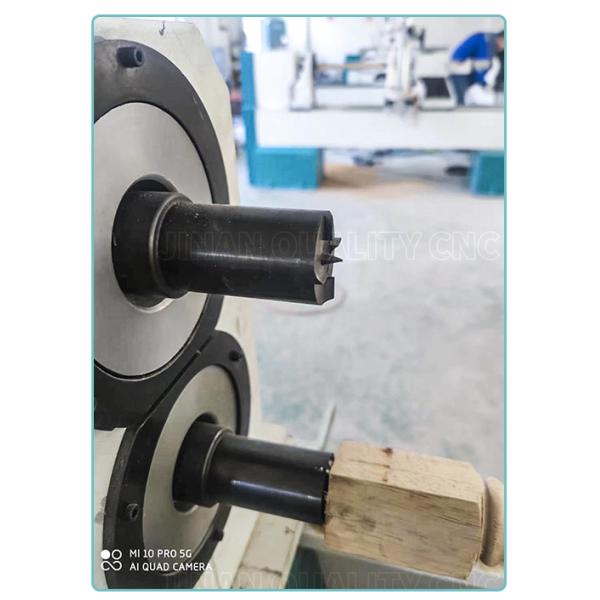

The rotary fixer on Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm Posts, Furniture Columns:

2 Spindles Double Axis Wood Turning Lathe For Chair Legs


Our service of Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm Posts, Furniture Columns


1. The company who initially provide 3 years warranty in the world.
2. 24-hour full after sales service.
3. All finished machine we delivered are 100% strictly tested by our QC department and engineering department.
4. OEM Service Customized and OEM orders are welcome due to our abundant experiences. All the OEM services are free.


About us

Q1: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone, email or other contact ways.

Q2: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".


Q3: What's the guarantee, in case the machine breaks down?
The machine has 3 years guarantee.

Q4: How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

Q5: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client’s specific requirements, it would be 15 to 30 days.

Q6: How's the payment?
Telegraphic Transfer (T/T).

Q7: Do You Arrange Shipment For The Machines?
Yes, we will arrange shipment for you for FOB or CIF price. For EXW price, clients need to arrange shipment by themselves or their agents.
