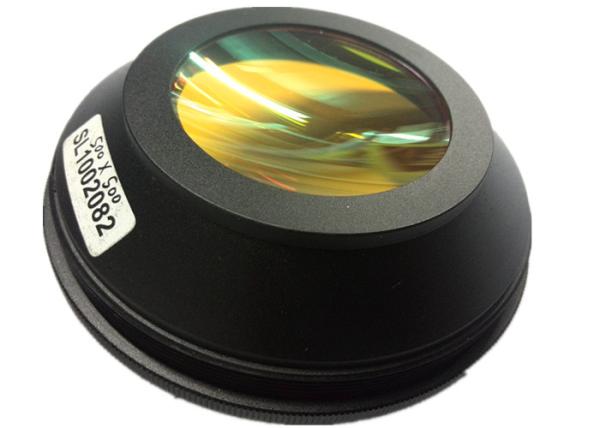

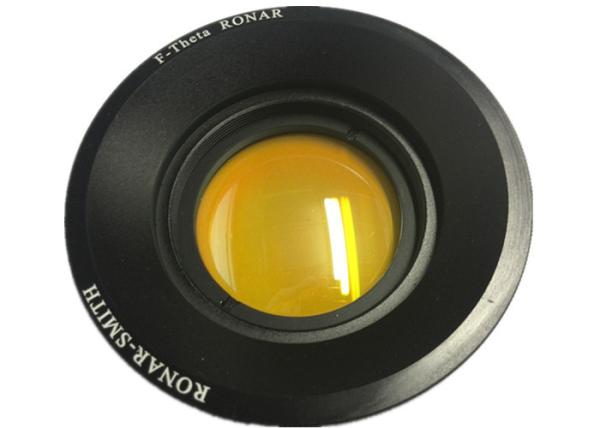

CO2 10.6um Laser Marking F-theta Scan Lens / Laser Galvo Lens
CO2 10.6um Laser Marking F-theta Scan Lens / Laser Galvo Lens
CO2 10.6um Laser Marking F-theta Scan Lens / Laser Galvo Lens
CO2 10.6um Laser Marking F-theta Scan Lens / Laser Galvo Lens
CO2 10.6um Laser Marking F-theta Scan Lens / Laser Galvo Lens
CO2 10.6um Laser Marking F-theta Scan Lens / Laser Galvo Lens
CO2 10.6um Laser Marking F-theta Scan Lens / Laser Galvo Lens
CO2 10.6um Laser Marking F-theta Scan Lens / Laser Galvo Lens
Specifications
Place of Origin :
Beijing, China
Brand Name :
JCZ
Certification :
CE
Model Number :
SL-10.6-300-420G
marking area :
300*300 mm
MOQ :
1 SET
Price :
Negotiable
Packaging Details :
carton
Delivery Time :
1 day
Payment Terms :
T/T western Union
Supply Ability :
1000 set/month
laser :
co2
wave lenght :
10.6um
Description

CO2 10.6um laser marking f-theta lens / laser galvo lens

Quick Detail:

CO2 laser f-theta lens can be used for laser marking and laser engraving, work with marking head(laser scanner).

Description:

A whole laser marking head (or called laser scanner) consists of two scan mirrors, two galvanometers (or called galvo-scanner motor) & drive cards, a XY mount, a scanning lens (f-theta lens), an interface card (or called D/A card), a set of marking software and a DC power supply.

Applications:

  • Marking
  • Engraving
  • Rapid prototyping
  • Drilling circuit board via holes
  • Cutting cloth
  • Cutting paper

Specifications:

Diameter Tolerance +0.0, -0.13mm
Thickness Tolerance ±0.25mm
Paraxial Focal Length ±2%
Centration 3 arc minutes
Clear Aperture >>80%
Surface Figure λ/2 per 1” @632.8nm
Surface Quality 40-20 scratch and dig
AR/AR Coating R<0.5% per surface @10.6um

other produxt:

CO2 10.6um Laser Marking F-theta Scan Lens / Laser Galvo Lens

Competitive Advantage:

  • The finest optical materials in the world
  • Special housing designs to optimize performance
  • Wavelength options from 9.2 to 10.6 µm
  • Via hole drilling diameters from 75 to 300 µm
  • Designs featuring one to five optical elements
  • Optional protection windows
  • Low-loss AR coatings
  • Precision optical elements
