Specifications
Brand Name :
JCZ
Model Number :
Camera marking system
Place of Origin :
CHINA
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
1000 set/month
Delivery Time :
1 day
Packaging Details :
carton
Color :
black
Texture of material :
Metal
Weight :
1.5kg
Dimensions :
2100X92mm
Processing range :
100X100mm
Description

Durable Coaxial Camera Laser Calibration Custom camera system Color black

Product description

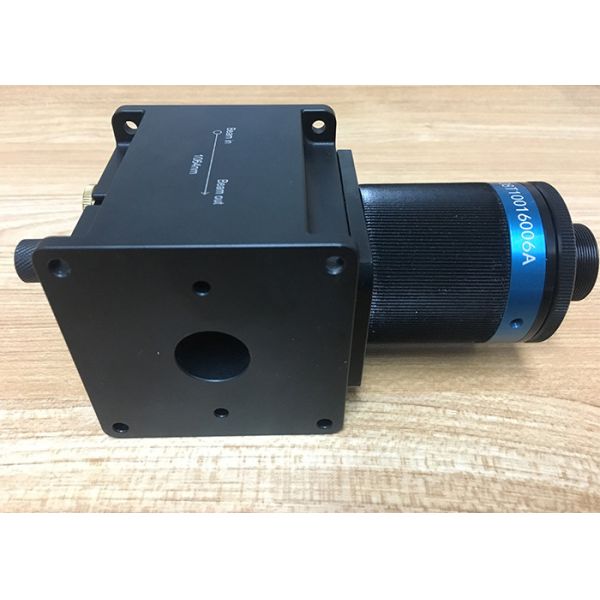

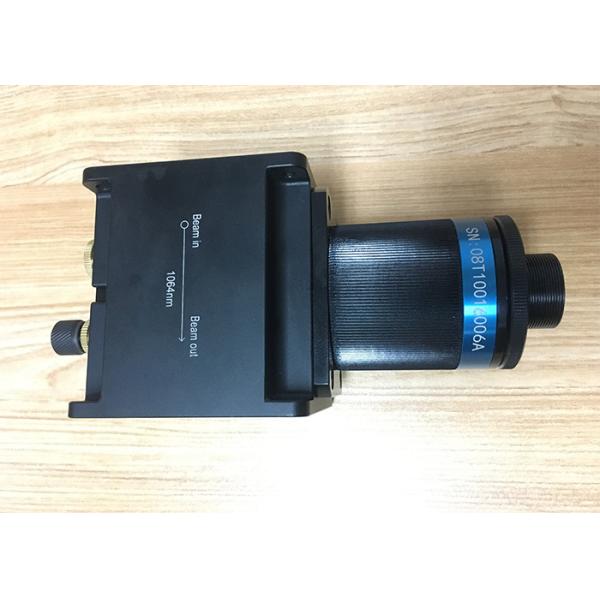

The camera adapter enables camera-based observation of a galvanometer scan head’s working field. Typical applications include process monitoring or determination of a workpiece’s orientation during laser processing.

Product details

The system allows 4 alternative orientations of the objective with camera

Used in small work piece positioning of video processing, high precision, accurate positioning

Cooperate with achromatic scanning focusing mirror can ensure scan within the scope of the spot uniform

BJJCZ special coaxial camera software, easy to use, easy to debug, stable operation, according to the actual needs of customers customized special software with achromatic scanning focusing mirror can ensure scan within the scope of the spot uniform.

Durable Coaxial Camera Laser Calibration Custom camera system Color blackDurable Coaxial Camera Laser Calibration Custom camera system Color black

Product parameters

Optional configuration

100/150/200mm lens

Dimensions

2100X92mm

Weight

1.5kg

Processing range

100X100mm

Positioning delay

100ms(suggest)

Precision

0.01mm(with 1.3m pixel

Camera range

0.2*8.5mm(with 100mm lens)

Work piece offset Angle

±15°

Number of work piece in one marking

User define

Competitive Advantage:

  • Cheap
  • Professional Software
  • Development team .
