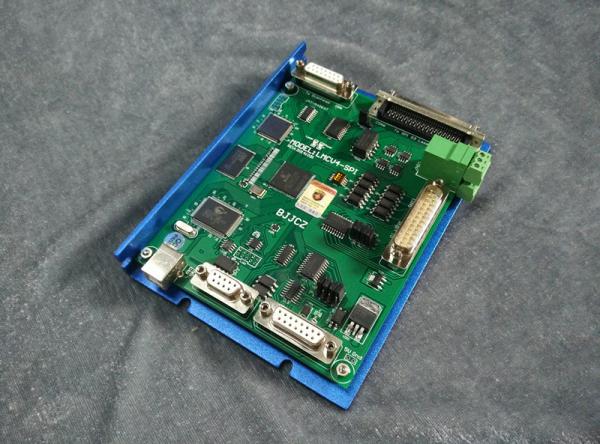

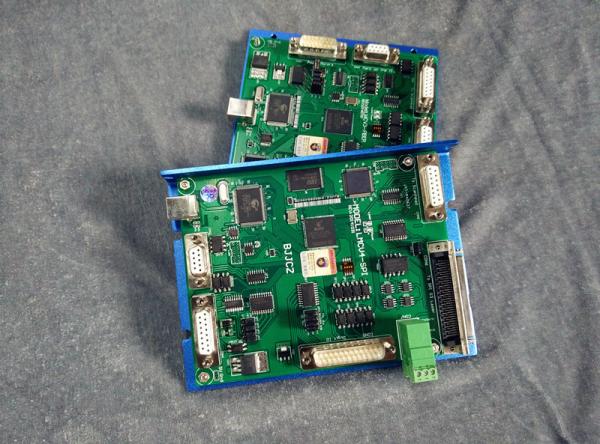

USB - SPI Laser Marking Card / Laser Control Card / SPI Controller Green Color
USB - SPI Laser Marking Card / Laser Control Card / SPI Controller Green Color
USB - SPI Laser Marking Card / Laser Control Card / SPI Controller Green Color
USB - SPI Laser Marking Card / Laser Control Card / SPI Controller Green Color
USB - SPI Laser Marking Card / Laser Control Card / SPI Controller Green Color
USB - SPI Laser Marking Card / Laser Control Card / SPI Controller Green Color
USB - SPI Laser Marking Card / Laser Control Card / SPI Controller Green Color
USB - SPI Laser Marking Card / Laser Control Card / SPI Controller Green Color
USB - SPI Laser Marking Card / Laser Control Card / SPI Controller Green Color
USB - SPI Laser Marking Card / Laser Control Card / SPI Controller Green Color
Specifications
Brand Name :
BJJCZ
Model Number :
BJJCZ
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
700USD
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
3-5Days
Packaging Details :
Carton
COLOR :
GREEN
Description

Quick Detail:

SPI laser marking card can be used to control the SPI G4.0 laser machine to marking,engraving,cutting on surface of material.Software EZCAD Support SPI laser type.

Description:

  • 68-pins SCSI 3socket is used on the board to connect SPI G3 laser module directly .
  • Support SPI laser type.
  • 8 routes general output signal .(TTL compatible).out 4/5/6/7 can be changed to open-drain mode by jumper to drive small power relay directly .
  • 13 routes of input(TTL compliant) .In0, In4-In13, XORG0(IN14), YORG0(IN15) .
  • Compatible with USB2.0 specifications.
  • Mark-on-fly: encoder can be connected to the board to measure the fly speed .
  • Remark function: this function is used to remark what ever is in the memory of the board,especially convenient for high speed marking of a same pattern.
  • Power supply:+-5V/3A
  • Dimensions: 167mm*125.5mm*23

Applicable scope:

  • Laser Marking
  • Laser Engraving
  • Drilling circuit board with holes
  • Cutting cloth
  • Cutting paper
  • Laser marking on metal
  • Wave Optional:0-39

Function:

  • Fly marking
  • Ruler mark
  • 4 kinds of Hatch
  • Two axis control
  • Multi-head
  • Vision mark

Specifications:

FEATURE
Output digital signals for digital scan head.
Mark-on-fly:encoder can be connected to the board to measure the fly speed .
Multiple boards on 1 computer: One computer can control up to 8 control board to mark different pattern simultaneously
Extend axis output:Two Direction/pulse signals,used to control stepping motor or servomotor for rotary marking and split marking.
13 routes of input(TTL compliant) .In0, In4-In13, XORG0(IN14), YORG0(IN15) .
8 routes of output(TTL compliant) .Out0-7 output from CON5 ,and out4-7 could be OC.
USB2.0 Compatible

CARD PARAMETER
Electrical Parameter
Power supply parameters: DC5V/3A
Connector: USB connector/DB connector
Signal: 8 routes general digital signal.(TTL compatible)

Precautions
Protect the board from humidity, dust, corrosive vapors and mechanical stress.
Carefully check your application program before running it. Programming errors can cause a break down of the system. In this case neither the laser nor the scan head can be controlled.

For storage and operation, avoid electromagnetic fields and static electricity.

These can damage the electronics on the product. For storage, always use the anti-static bag.
The allowed operating temperature range is 25℃ ± 10℃.
The storage temperature should be between –20℃ and +60℃.

ACCESSORIES
DB9 male/female sockets USB cable (1.5m)
DB15 male/female sockets CD

Competitive Advantage:

Work stable,operation simple,easy to learn,famous software EZCAD,low cost,USB connection.
