Auto - Focusing System Laser Ranging Sensor With 200mm Measuring Range , GHC-1200
Auto - Focusing System Laser Ranging Sensor With 200mm Measuring Range , GHC-1200
Auto - Focusing System Laser Ranging Sensor With 200mm Measuring Range , GHC-1200
Auto - Focusing System Laser Ranging Sensor With 200mm Measuring Range , GHC-1200
Auto - Focusing System Laser Ranging Sensor With 200mm Measuring Range , GHC-1200
Auto - Focusing System Laser Ranging Sensor With 200mm Measuring Range , GHC-1200
Auto - Focusing System Laser Ranging Sensor With 200mm Measuring Range , GHC-1200
Auto - Focusing System Laser Ranging Sensor With 200mm Measuring Range , GHC-1200
Auto - Focusing System Laser Ranging Sensor With 200mm Measuring Range , GHC-1200
Auto - Focusing System Laser Ranging Sensor With 200mm Measuring Range , GHC-1200
Specifications
Brand Name :
JCZ
Model Number :
GHC-1200
Place of Origin :
CHINA
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
1000Set
Delivery Time :
1 day
Packaging Details :
carton
Color: :
black
Measure the center distance :
200mm
Measuring range :
±80mm
Beam diameter :
About Ø300μm
Repeat accuracy :
200μm
Description

product description:

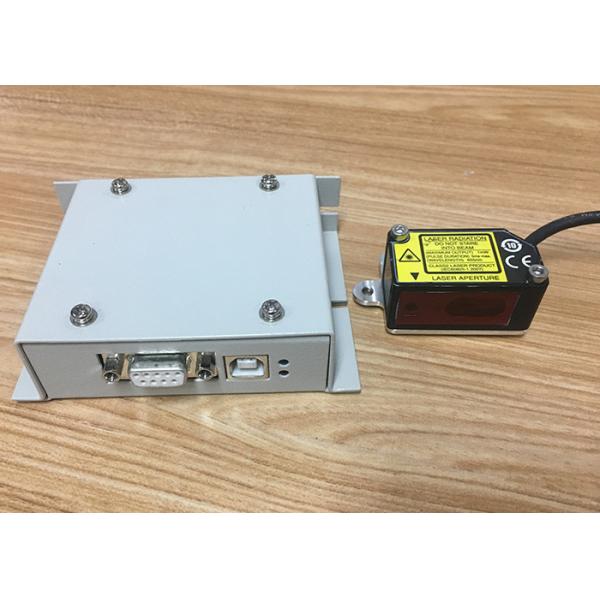

Autofocus system includes laser ranging sensor, communication board.
A special version of the ECZAD software is required.

working principle:
Laser Marking AF system is the use of distance sensor to galvanometer to the distance between the workpiece marking, and then dynamically adjust the Z-axis laser marking machine height, it is always marked in the time with the marking workpiece to maintain a fixed distance (focal length) .
EZCAD software is to get the distance value of the sensor, and then calculate the distance value and set the distance value (need to set the focal length position in advance) in the process of looking for the focal length of the Z axis, constantly corrected distance difference To achieve the function of auto-focus.

Auto - Focusing System Laser Ranging Sensor With 200mm Measuring Range , GHC-1200
