USB 2.0 single fiber liter card laser control card / 5V 3A power supply
USB 2.0 single fiber liter card laser control card / 5V 3A power supply
USB 2.0 single fiber liter card laser control card / 5V 3A power supply
USB 2.0 single fiber liter card laser control card / 5V 3A power supply
USB 2.0 single fiber liter card laser control card / 5V 3A power supply
USB 2.0 single fiber liter card laser control card / 5V 3A power supply
USB 2.0 single fiber liter card laser control card / 5V 3A power supply
USB 2.0 single fiber liter card laser control card / 5V 3A power supply
Specifications
Brand Name :
BJJCZ
Model Number :
BJJCZ
Place of Origin :
CHINA
MOQ :
1set
Payment Terms :
T/T
Delivery Time :
3-5days
Packaging Details :
carton
Description

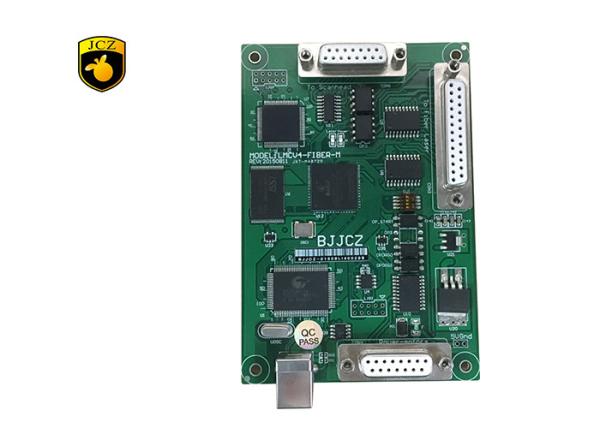

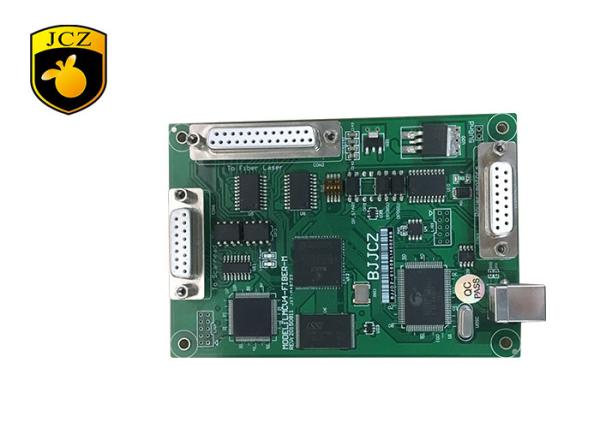

USB Fiber - Lite Laser Control Board Metal Black Photosensitive Material 5V 3A​

Applicable laser:

IPG / Raycus/Max/JPT,such as the common market fiber laser

Applicable material:

Metal/black photosensitive material

Support adjustable pulse width (MOPA) lasers

Supported operating systems: XP Win7 Win8 Win10 32/64 bit systems

Power supply: external 5V, 3A power supply

Equipment characteristics :
The operation is simple
The price is cheap
The work efficiency is high
USB 2.0 single fiber liter card laser control card / 5V 3A power supply
main feature
Standard DB25 connector, can be wire to IPG laser directly.
Galvo control signal is digital, which can be connect to most scanhead directly.
on-the-fly marking feature. A encoder can be used to surveillance the pipeline speed real-timely.
Multiple boards on 1 computer: One computer can control up to 8 control board to mark different pattern simultaneously
Extension axis(step motor or sever motor): two set of direction/pulse signal can be used to control 2 step(server) motors.
6 general input signals(TTL campatible): In0-In3, XORG0(IN14), IN15.
2 general output signals(TTL campatible): OUT4-OUT5 coming out of Con4.
Remark function: this function is used to remark what ever is in the memory of the board, especially convenient for high speed marking of a same pattern.
Compatible with USB2.0 specifications.
