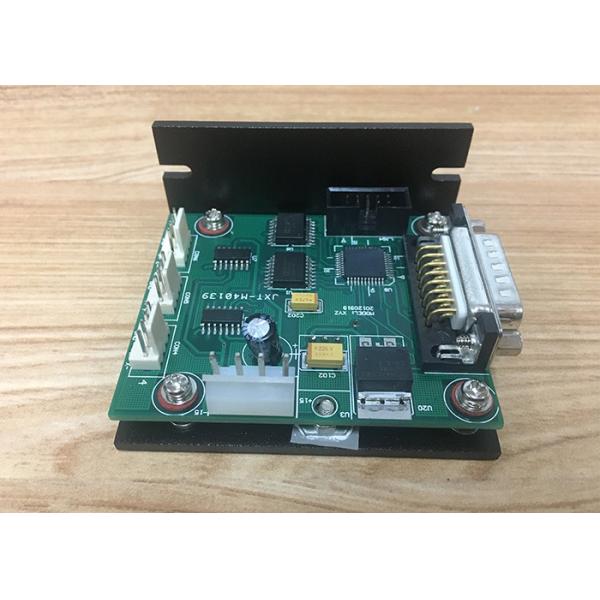

5V3 Axis Adapter Board / Digital To Analog Board Supports 3 Routes Outputs , CE Approved
5V3 Axis Adapter Board / Digital To Analog Board Supports 3 Routes Outputs , CE Approved
5V3 Axis Adapter Board / Digital To Analog Board Supports 3 Routes Outputs , CE Approved
5V3 Axis Adapter Board / Digital To Analog Board Supports 3 Routes Outputs , CE Approved
5V3 Axis Adapter Board / Digital To Analog Board Supports 3 Routes Outputs , CE Approved
5V3 Axis Adapter Board / Digital To Analog Board Supports 3 Routes Outputs , CE Approved
5V3 Axis Adapter Board / Digital To Analog Board Supports 3 Routes Outputs , CE Approved
5V3 Axis Adapter Board / Digital To Analog Board Supports 3 Routes Outputs , CE Approved
5V3 Axis Adapter Board / Digital To Analog Board Supports 3 Routes Outputs , CE Approved
5V3 Axis Adapter Board / Digital To Analog Board Supports 3 Routes Outputs , CE Approved
Specifications
Brand Name :
JCZ
Model Number :
BJJCZ
Place of Origin :
china
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
1000Set
Delivery Time :
1 day
Packaging Details :
carton
Color :
green
os :
xp /win7 /win8 win10 32/64 bit
material :
PCB
Description

Product description:
Outside power supply ±15V / 500 mA
Input the 3 routes digital signal of Galvo.
Output the simulate ±5V control signal.
It supports maxim 3 routes outputs (default 2 routes), and the digital protocol has the extended coding.

Description:

CON1: Digital input signal socket.
The socket must be connected with the Galvo output signal of digital interface board, optic interface board. Using this conversion board, we must set the Galvo protocol of digital interface board, optic interface board to be None-extend encoding format (not connect JP9).

CON2: Power socket.
We need connect outside ±15V power. The range of the voltage is [±12V—±15V] which supplied by outside power.

CON4—CON6: Analog Voltage signal

5V3 Axis Adapter Board / Digital To Analog Board Supports 3 Routes Outputs , CE Approved

Competitive Advantage:

Good quality ,work stable
