QCW Control Box QCW Fiber Laser Marking Machine / QCW Laser Source
QCW Control Box QCW Fiber Laser Marking Machine / QCW Laser Source
QCW Control Box QCW Fiber Laser Marking Machine / QCW Laser Source
QCW Control Box QCW Fiber Laser Marking Machine / QCW Laser Source
QCW Control Box QCW Fiber Laser Marking Machine / QCW Laser Source
QCW Control Box QCW Fiber Laser Marking Machine / QCW Laser Source
QCW Control Box QCW Fiber Laser Marking Machine / QCW Laser Source
QCW Control Box QCW Fiber Laser Marking Machine / QCW Laser Source
Specifications
Brand Name :
BJJCZ
Model Number :
BJJCZ
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
1000set
Delivery Time :
3-5days
Packaging Details :
carton
Description
Name Description
To DLC this interface is connected to the JCZ-DLC control card CON2 port
RS232 laser serial communication interface
power air plug interface, 220V AC power supply
Fiber output (optical fiber is not shown) the laser outputs the fiber from this position

QCW Control Box QCW Fiber Laser Marking Machine / QCW Laser Source

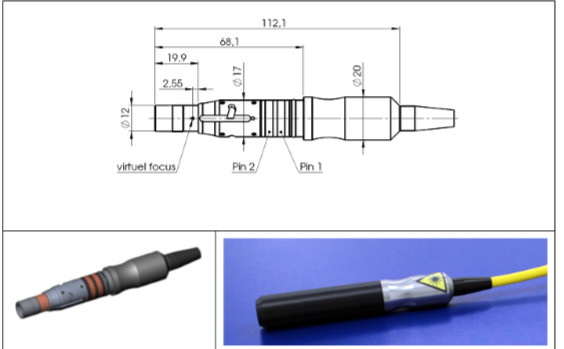

Optical output fiber termination
The QBH optical fiber output head (Figure 1 - QBH end output) is provided with a protective cap for protecting the optical end surface and the electrode that transfers the internal safety loop of the optical fiber when not in use. When connected to an external optical head, the protective cap must be removed. The cover shall be removed prior to optical cleaning and immediately fixed to the laser cleaning device for cleaning.

QCW Control Box QCW Fiber Laser Marking Machine / QCW Laser Source

2. Function introduction
1. This product contains the YLM-150_1500-QCW-MM-AC-Y12 laser module of IPG company, the laser power supply module provided by JCZ and the laser control card.
2, with the JCZ Ezcad3 software system, customers can set the laser waveform sequence according to the demand, support up to 64 waveforms, with software function preservation, called waveform parameters, greatly facilitate the process of debugging the application, production and processing.
3, the JCZ Ezcad3 software system, can monitor the internal state and abnormal state of laser in laser, laser control card for error state timely response, effectively reduce the misoperation of laser damage.
4, JCZ, Ezcad3 software system, for laser parameter settings to optimize the processing, greatly reducing the emergence of laser alarm.
5, JCZ, Ezcad3 software system, with vibration mirror welding function, can meet most of the vibration mirror welding process software functional requirements, software operation is simple and easy to understand, friendly interface.
