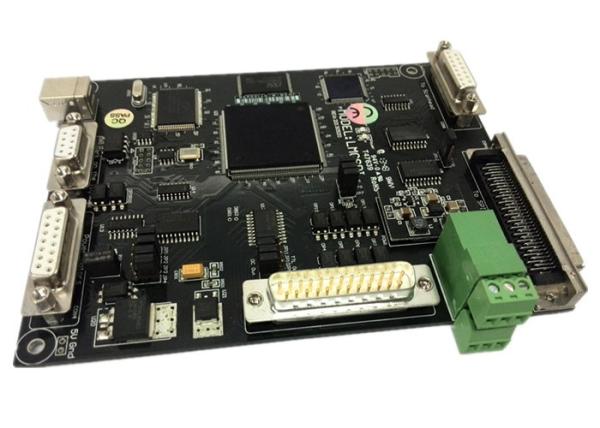

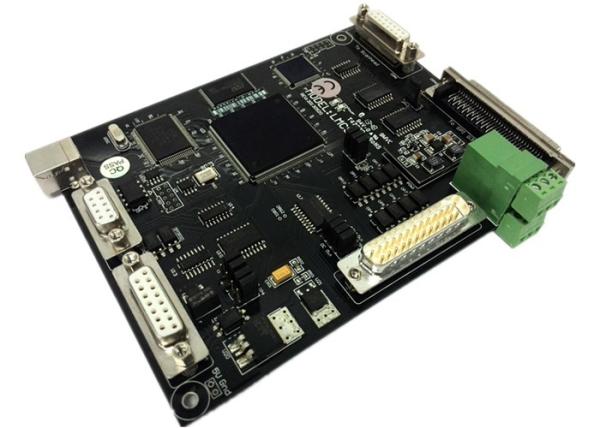

SPI Laser Control Board Fly And Rotary Axis For Metal / Black Nonmetal Marking
SPI Laser Control Board Fly And Rotary Axis For Metal / Black Nonmetal Marking
SPI Laser Control Board Fly And Rotary Axis For Metal / Black Nonmetal Marking
SPI Laser Control Board Fly And Rotary Axis For Metal / Black Nonmetal Marking
SPI Laser Control Board Fly And Rotary Axis For Metal / Black Nonmetal Marking
SPI Laser Control Board Fly And Rotary Axis For Metal / Black Nonmetal Marking
SPI Laser Control Board Fly And Rotary Axis For Metal / Black Nonmetal Marking
SPI Laser Control Board Fly And Rotary Axis For Metal / Black Nonmetal Marking
Specifications
Place of Origin :
Beijing, China
Brand Name :
JCZ
Certification :
CE
Model Number :
USB-SPILMCB
MOQ :
1 SET
Price :
USD700-900/SET
Packaging Details :
carton
Delivery Time :
1 day
Payment Terms :
T/T western Union
Supply Ability :
1000 set/month
Description

SPI Laser Control Board Fly And Rotary Axis For Metal / Black Nonmetal Marking

Quick Detail:

SPI laser control board can control whole type SPI laser machine for laser marking and laser engraving .The software EZCAD Support CO2,YAG,IPG,SPI laser, adjusting currents, frequency, duty ratio in software

Description:

  • Use 68-pins SCSI 3 socket,connect SPI G3 laser module via 68-pin cable directly.
  • Adjustable digital/analog output used for scan head
  • Mark-on-fly function with an encoder connected
  • Extend axes output:Two Direction/pulse signals,used to control stepping motor or servomotor
  • 25 routes general digital signals(TTL compatible), 4 of the IO ports can be OC IO, can connect with relay.
  • Original start signal:Used when marking contents are the same and high speed is required Compatible with USB2.0 ..

Applications:

  • Laser Marking
  • Laser Engraving
  • Rapid prototyping
  • Drilling circuit board via holes
  • Cutting cloth
  • Cutting paper

Specifications:

FEATURE

68-pins SCSI 3 socket is used on the board to connet with SPI G3 laser directly

Output digital signals for digital scan head.

Mark-on-fly

Support single machine with multi-card.One computer work with 2 pieces of USBLMC card and marking different content.

Extend axis output:Two Dierction/pulse signals,used to control stepping motor or servomotor for rotary marking and split marking.

8 routes general input signal.(TTL compatible)/8 routes general output signal(TTL compatible).4 Output can be OC

USB2.0 Compatible

CARD PARAMETER

Electrical Parameter

Power supply parameters:DC5V/3A

Connector:USB connector/DB connector

Signal: 16 routes general digital signal.(TTL compatible)

Mechanical parameters

Storage temperature: - 20 ℃ ~ + 60 ℃

Working temperature: 25℃ ± 10℃

ACCESSORIES

DB9 male/female sockets

USB cable (1.5m)

DB15 male/female sockets

D/A board

DB25 male/female sockets

CD

SPI Laser Control Board Fly And Rotary Axis For Metal / Black Nonmetal Marking

Competitive Advantage:

  • Good quality
  • Work stable
  • Famous software EZCAD.
