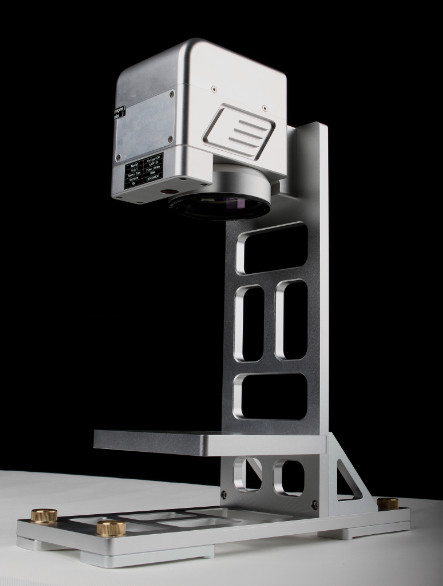

Automatic Calibration Laser Scan Head , CCD Machine Vision Laser Marking Head
Automatic Calibration Laser Scan Head , CCD Machine Vision Laser Marking Head
Automatic Calibration Laser Scan Head , CCD Machine Vision Laser Marking Head
Automatic Calibration Laser Scan Head , CCD Machine Vision Laser Marking Head
Automatic Calibration Laser Scan Head , CCD Machine Vision Laser Marking Head
Automatic Calibration Laser Scan Head , CCD Machine Vision Laser Marking Head
Automatic Calibration Laser Scan Head , CCD Machine Vision Laser Marking Head
Automatic Calibration Laser Scan Head , CCD Machine Vision Laser Marking Head
Automatic Calibration Laser Scan Head , CCD Machine Vision Laser Marking Head
Automatic Calibration Laser Scan Head , CCD Machine Vision Laser Marking Head
Specifications
Brand Name :
JCZ
Model Number :
Cyclops-100
Place of Origin :
Beijing, China
MOQ :
1 SET
Price :
1500-1500USD
Payment Terms :
T/T western Union
Supply Ability :
1000 set/month
Delivery Time :
1 day
Packaging Details :
carton
Color :
grey
Wavelenght :
10.6um 1046nm 532nm 355nm
Marking area :
70*70mm 110*110mm 174*174mm
Software :
EZCAD
Contain :
Scanner + camera + software + power + cable
Package :
Carton box
Mirror size :
10mm
Average marking speed :
5000mm/s
Max speed :
100000mm/s
Description

Automatic Calibration Laser Scan Head , CCD Machine Vision Laser Marking Head

Quick Detail:

  • No need camera ,
  • No need red light
  • No need manul focal length setting.

Description:

  • A new scan head.
  • Draw there!Mark there!
  • Close the red pointer!NO need red pointer when marking.
  • Cyclops system match the marking area and camera view area.
  • Used Background show software and Calibration software.
  • Scan speed of cyclops is above 5000mm/s
  • Machine vision ,can draw at anywhere you see in the software.
  • High precision , view image and actual image is calibrated to make view ratio 1:1
  • Can be used in covered machine to in case laser shot also can preview marking position.
  • Workspace and view space zoom together ,easy to operate.

Automatic Calibration Laser Scan Head , CCD Machine Vision Laser Marking Head

Applications:

  • Laser Marking
  • Laser Engraving

Automatic Calibration Laser Scan Head , CCD Machine Vision Laser Marking Head

Specifications:

The optical hole diameter

10mm

Corresponding time step

The deflection Angle of 1%

0.4ms

The deflection Angle of 10%

1.2ms

Speed

Marking speed

5000mm/s

Positioning speed

10000mm/s

Temperature drift(more than 8 hours)

<0.3mrad

Interface protocol

XY2-100 Standard

Optical performance

Scanning angle

±0.35 rad

Gain error

＜5 mrad

Zero offset

＜5 mrad

Working temperature

25℃ ± 10℃

Power

±15V/5A

Automatic Calibration Laser Scan Head , CCD Machine Vision Laser Marking Head

Competitive Advantage:

  • Easy control ,cheap .
