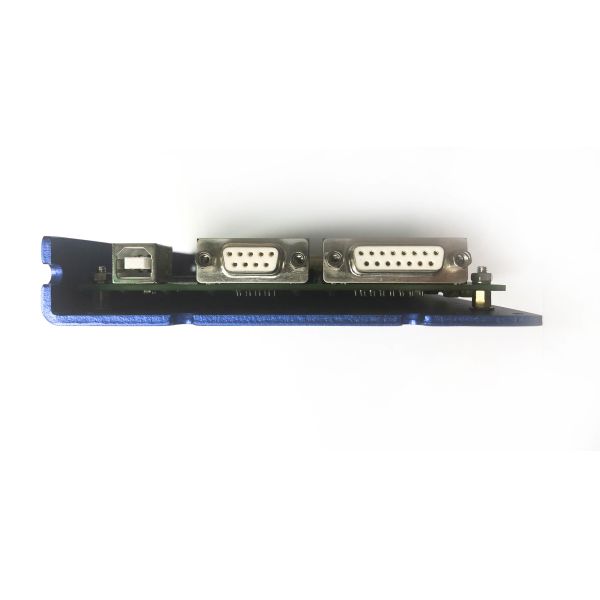

Diamond Laser Controller Card Supports IPG / RAYCUS / V-GEN Laser Type
Diamond Laser Controller Card Supports IPG / RAYCUS / V-GEN Laser Type
Diamond Laser Controller Card Supports IPG / RAYCUS / V-GEN Laser Type
Diamond Laser Controller Card Supports IPG / RAYCUS / V-GEN Laser Type
Diamond Laser Controller Card Supports IPG / RAYCUS / V-GEN Laser Type
Diamond Laser Controller Card Supports IPG / RAYCUS / V-GEN Laser Type
Diamond Laser Controller Card Supports IPG / RAYCUS / V-GEN Laser Type
Diamond Laser Controller Card Supports IPG / RAYCUS / V-GEN Laser Type
Specifications
Brand Name :
BJJCZ
Model Number :
BJJCZ-FB-B-H1
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
negotiated
Payment Terms :
T/T, Western Union
Supply Ability :
100AET
Delivery Time :
3-5DAYS
Packaging Details :
CARTON
Condition :
New
Cnc or not :
Yes
Control software :
EZCAD,JCZ-EZCAD
Warranty :
1 Year
Marking speed :
0-7000mm/s
Description

Diamond Laser Controller Card Supports IPG / RAYCUS / V-GEN Laser Type

Brand Name: BJJCZ
Model Number: BJJCZ-FB-B-H1
Certification: CE
Place of Origin:

China

Minimum Order Quantity: 1pcs
Price: negotiation
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month
Delivery Time: 3-5 working days after received your payment
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing

Description:

DB25 socket to connect IPG YLP and YLPM laser module via 25-pin cable directly.

Support IPG,RAYCUS,V-GEN,JPT,MAX PHOTONICS,MANLIGHT,QUANTEL laser type.

24 routes general digital signals(TTL compatible ), 16 general input signals(TTL compatible In0-In13, XORG0(IN14), YORG0(IN15)),8 general output signals(TTL compatible),Out4-7 can be configured as OC outputs or TTL outputs

Compatible with USB2.0 specifications.

Mark-on-fly: encoder can be connected to the board to measure the fly speed .

Power supply:+-5V/3A

Dimensions: 167mm*125.5mm*23

Applicable scope:

Laser Marking

Laser Engraving

Drilling circuit board with holes

Cutting cloth

Cutting paper

Laser marking on metal

Function:

Fly marking

Ruler mark

4 kinds of Hatch

Two axis control

Multi-head

Vision mark

Brand Name: BJJCZ
Model Number: BJJCZ-FB-B-H1
Certification: CE
Place of Origin: China

Applications:

Model Fiber
Connect Method USB2.0
Galvo control signal Can be directly connected to a universal digital galvao
Number of Input Ports 12 universal input ports
Number of Output Ports 8 way TTL/ OC
Remark Signal Cache content repeated engraving
Extended Axis Support for 2 extension axis
Flight Marking Support
Multi-head Carving Support
Software Second Development Support
Suitable Laser Fiber laser
Applicable Material Metal black photosensitive material
Support Operating System XP WIN7 WIN8 WIN10 32/64 Bit System
Built-in Encryption Chip Support
Power Supply 5V 3A

Diamond Laser Controller Card Supports IPG / RAYCUS / V-GEN Laser Type
