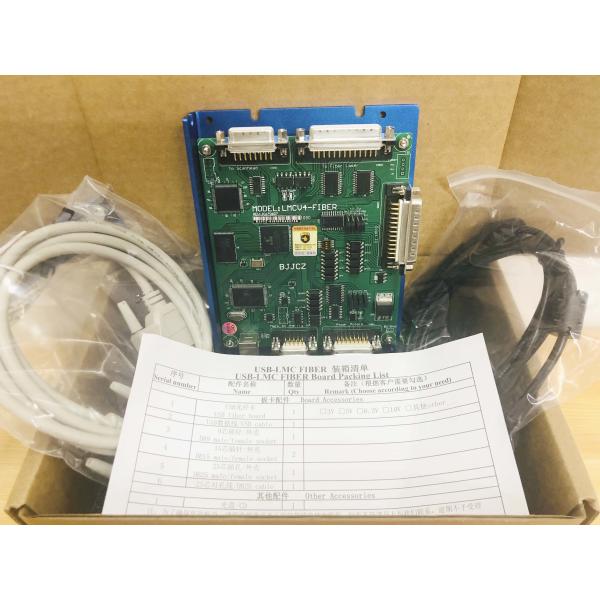

Compact Structure Co2 Laser Controller Board 1064nm 5V 3A For Egg Marking

Description:

IPG Laser Marking Controller , PCB Fiber laser control card run steadily

Fiber laser control card can control whole type fiber laser machine for laser marking and laser engraving The software EZCAD Support CO2,YAG,IPG,SPI laser, adjusting currents, frequency, duty ratio in software

IPG Laser Marking Controller , PCB Fiber laser control card run steadily

Use 25-pins DB25 socket,connect IPG YLP and YLPM laser module via 25-pin cable directly.

Adjustable digital/analog output used for scan head.

Mark-on-fly function with an encoder connected.

Extend axes output:Direction/pulse signals,used to control stepping motor or servomotor.

25 routes general digital signals(TTL compatible), 4 of the IO ports can be OC IO, can connect with relay.

Original start signal:Used when marking contents are the same and high speed is required. Compatible with USB2.0

Description: main feature

StandardDB25 connector,can be wire to IPG laser directly.

Galvo control signal is digital, which can be connect to most scan head directly.

on-the-fly marking feature. A encoder can be used to surveillance the pipeline speed real-timely. Multiple boards on 1 computer: One computer can control up to 8 control board to mark different pattern simultaneously

Extension axis(step motor or sever motor): two set of direction/pulse signal can be used to control2step(server) motors. 1 16generalinputsignals(TTL compatible):In0-In13,XORG0(IN14),YORG0(IN15).

8 general output signals(TTL compatible): Out0-7 coming out of Con5. Out0 - 3 are TTL outputs.Out4-7canbeconfiguredasOCoutputsorTTLoutputs.

Laser Err signal: this signal will be activated when there is an error occurs in the laser, OC output. Remark function: this function is used to remark what ever is in the memory of the board, especially convenient for high speed marking of a same pattern.

CompatiblewithUSB2.0specifications.
