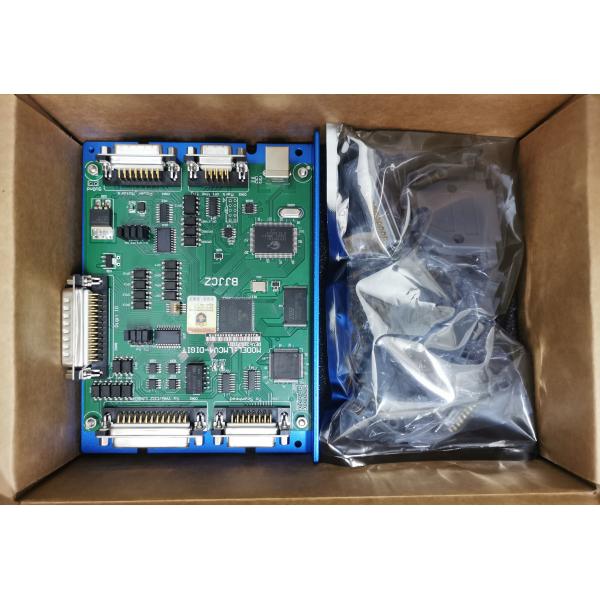

5V 3A Laser Control Card Wooden Laser Marking Controller For MAX Laser Source
5V 3A Laser Control Card Wooden Laser Marking Controller For MAX Laser Source
5V 3A Laser Control Card Wooden Laser Marking Controller For MAX Laser Source
5V 3A Laser Control Card Wooden Laser Marking Controller For MAX Laser Source
5V 3A Laser Control Card Wooden Laser Marking Controller For MAX Laser Source
5V 3A Laser Control Card Wooden Laser Marking Controller For MAX Laser Source
Specifications
Brand Name :
BJJCZ
Model Number :
BJJCZ-SZ-B-H1
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
negotiated
Payment Terms :
Western Union, T/T
Supply Ability :
1000SET
Delivery Time :
3-5 WORKDAYS
Packaging Details :
CARTON
Model :
BJJCZ-SZ-B-H1
Standard :
CE
Brand :
BJJCZ
Connect Method :
USB2.0
Flight Marking :
Support
Power Supply :
5V 3A
Description

Low cost Wooden Laser marking controller For MAX Laser source/ co2 laser controller board

Minimum Order Quantity: 1pcs
Price: negotiation
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month
Delivery Time: 3-5 working days after received your payment
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing

Description:

CON3: DB9 flying standard interface
Pin. Name Description
1 IN8 Input port 8
2,6 IN9+,IN9- Input port 9 positive
3,7 BCODEP/ BCODEN Input port 9 negative
4,5 ACODEP/ACODEN Encoder input B+/B-
8 VCC +5V output
9 GND Ground

Place of Origin:

China

Brand Name:

BJJCZ

Model Number:

LMCV4-DIGIT

Product name:

digital laser control board

Application:

CO2 laser marking/engraving

Wavelength:

10600/1064nm

Main Feature

Galvo control signal is digital, which can be connect to most scanhead directly.

on-the-fly marking feature. A encoder can be used to surveillance the pipeline speed

real-timely.

Multiple system function. One computer can control up to 8 control board to mark different

pattern simultaneously

Extension axis(step motor or sever motor): two set of direction/pulse signal can be used to

control 2 step(server) motors.

16 general input signals(TTL campatible): In0-In13, XORG0(IN14), YORG0(IN15).

14 general output signals(TTL campatible): Out0-7 coming out of Con5. Out8-13 coming out

of CON2. Out0 - 3 ,out8 and out13 are TTL outputs. Out4-7 can be configured as OC

output or TTL output by jumpers. Out 9-12 are OC outputs.

ReMark(REpeat MARKing signal): in the case of high speed marking of a same pattern, a

foot pedal can be connected to this pin. If some variables are in the pattern or the pattern is

too big for the cache in board, the foot pedal can be only connect to general input pins.

Laser signal: we provide both high level effective and low level effective signals.

PWM signal: both differential and TTL signal is provided.

A specified red light pointer signal is now added.

Two analog signal that control power/frequency is now added.

Using USB2.0 specifications.

Applications:

Model CO2
Connect Method USB2.0
Galvo control signal Can be directly connected to a universal digital galvao
Number of Input Ports 16 universal input ports
Number of Output Ports 14 way TTL/ OC
Remark Signal Cache content repeated engraving
Extended Axis Support for 2 extension axis
Flight Marking Support
Multi-head Carving Support
Software Second Development Support
Suitable Laser CO2 / YAG / UV Laser
Applicable Material Glass, Plastic, Wood, Rubber, Paper
Support Operating System XP WIN7 WIN8 WIN10 32/64 Bit System
Built-in Encryption Chip Support
Power Supply 5V 3A
