Specifications
Brand Name :
Hanniu Laser
Model Number :
H-TFZ
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 SETS
Delivery Time :
10 Working days
Packaging Details :
Wooden cases packing
Price :
US$3,285-6,428
Name :
YAG Laser Welding Machine
Description

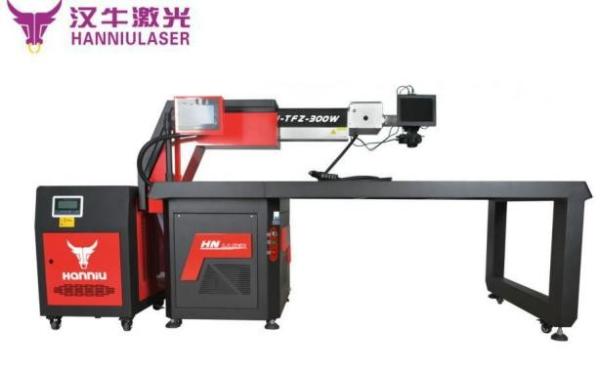

Advertising Welding 350W 500W Metal SS CS AL YAG Laser Welding Machine

350W 500W YAG Laser Welding Machine For Stainless Steel / CS Metal


Specification form of this laser welding machine

Manufacturer Guangzhou Hanniu Laser Machinery Co.,LTD
Brand Hanniu Laser
Model H-TFZ
Laser type ND:YAG
Laser power 350W/500W
Laser wavelength 1064nm
Welding minimum molten pool 0.1mm
Welding depth 1mm
Pulse width 0.1-20ms continuously adjustable
Pulse rate 1-200Hz continuously adjustable
viewing system CCD camera & Red light positioning
Power <7kw
Working table type High hardness fiber board
Cooling method Water cooling
Table format 1500*1200mm
dimension 2300*1300*1900mm
Net weight 250KG


Product configuration:

350W 500W YAG Laser Welding Machine For Stainless Steel / CS Metal

Toughened glass table:

350W 500W YAG Laser Welding Machine For Stainless Steel / CS Metal

Samples of the laser welding machine

350W 500W YAG Laser Welding Machine For Stainless Steel / CS Metal

Suitable for welding thin plates;3D work bench and the master unit are integrated;
This machine can weld space curve,LED metal,all kinds of words.Applied in medical,electronics components,circuit boards,IC,battery,instrument, etc.

Company Strength

350W 500W YAG Laser Welding Machine For Stainless Steel / CS Metal

Exhibition

350W 500W YAG Laser Welding Machine For Stainless Steel / CS Metal

Packaging & Shipping

350W 500W YAG Laser Welding Machine For Stainless Steel / CS Metal

1.Standard plywood case, no need to steam, can export directly.

2. car-lift machine up and down loading. more safe for machine.

3.when importing, the plywood case is with fumigation-free, the procedure is simple.

4.Delivery Detail: within 3-5 days after received your payment.

FAQ:

1.Q: Are you a factory or trading company?

A:We are a professional manufacturer specializing in laser for about 10 years with export license.

2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Tanbu Town, Huadu District, Guangzhou, close to Baiyun Airport.

3.Q: Can you do OEM?

A: Yes, we can do OEM products as you requested.

4.Q: Where will the machines be shipped from?

A: It will be shipped from Huangpu Port Guangzhou,China. And We will find the shipping company which will offer best and most economical freight for our customers. But If you have a preferred carrier,that will be more helpful for us.

5.Q:How does your factory do regarding quality control?

A:Quality is priority,we always attach great importance to quality control from the very beginning to the very end:

1)All raw material we used are environmental-friendly;

2)Skillful workers care every details in handling the producing and packing processes;

3)Quality Control Department is specially responsible for quality checking in each process.

6.Q:This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?

A: We are legitimate certification company (VIP), and we support payment terms Like L/C,Escrow to ensure your money safety.And we welcome you to visit our factory.

7.Q:There are too many models, I don't know which one to choose?

A: Welcome to contact us through Trade Manager,we will recommend most suitable machine according to your specific requirements.

8.Q:How to ensure that I received the machine undamaged?

A: Our package is standard for shipping, before packing,we will confirm product undamaged, otherwise, please contact us within 2 days. Because we've bought insurance for you, we or shipping company will be responsible!
