Metal YAG Laser Welding Machine 500W 1500*1200mm For Advertising
Metal YAG Laser Welding Machine 500W 1500*1200mm For Advertising
Metal YAG Laser Welding Machine 500W 1500*1200mm For Advertising
Metal YAG Laser Welding Machine 500W 1500*1200mm For Advertising
Specifications
Brand Name :
Hanniu laser
Model Number :
H-TFZ
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
US$3,285-6,428
Payment Terms :
TT/LC/
Supply Ability :
10 SETS
Delivery Time :
10 working days
Packaging Details :
Strong wooden case packing
Name :
YAG Laser Welding Machine
Watts :
500W
Machine color :
Black and Red
Max Peak Power :
<7KW
Pulse width :
0.1-20ms
Round Welding :
Yes
Welding depth :
1mm
Working area :
1500*1200mm
Viewing system :
CCD camera
Power Supply :
AC220V/50Hz
Positioning Precision :
±0.001mm
Application :
LASER CUTTING
Electric Power :
AC380V 50Hz/3.5kW
Substance :
Factory
Warranty :
1 Year
Description

Metal YAG Advertising Laser Welding Machine 500W

Technical parameter

Manufacturer Guangzhou Hanniu Laser
Brand Hanniu Laser
Model H-TFZ
Laser type ND:YAG
Laser power 350W/500W
Laser wavelength 1064nm
Welding minimum molten pool 0.1mm
Welding depth 1mm
Pulse width 0.1-20ms continuously adjustable
Pulse rate 1-200Hz continuously adjustable
Viewing system CCD camera & red light positioning
Power <7KW
Power source 220V/50Hz/40A
Working table type High hardness fiber board
Cooling method Water cooling
Table format 1500*1200mm
Dimension 2300*1300*1000mm
Net weight 250KG

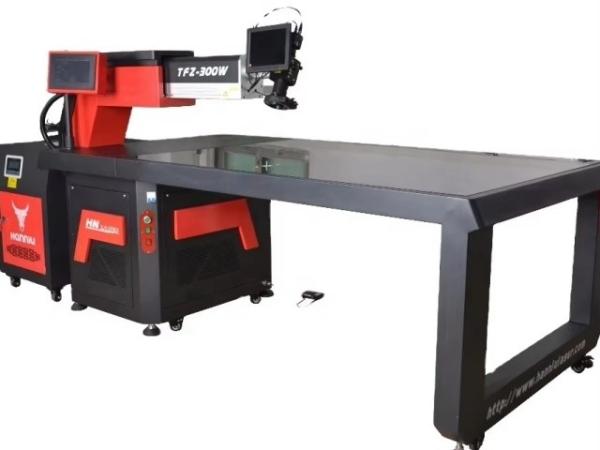

Machine Picture

Metal YAG Laser Welding Machine 500W 1500*1200mm For Advertising

Application area:

Advertising industry: welding without blackening, no deformation, firm without surface treatment, easy to weld difficult-to-weld font.

Machine characteristics:

1. high stability laser, long life, about 8-10 years, enough power, can work 24 hours.

2. the light path is flexible, double light path, mesa welding and handheld welding flexible switch, suitable for a variety of fonts, signs welding.

3. Simple operation, high efficiency, the equipment is ready to use, simple and easy to learn,

the speed of the welding machine is 8-10 times that of the traditional welding process.

4. Good welding effect, no blackness, no deformation, firm no surface treatment, easy to weld difficult font.

5. Cost-effective, beautiful appearance, increase bearing table, sufficient power, stable performance, good welding effect.

Samples of the laser welding machine

Metal YAG Laser Welding Machine 500W 1500*1200mm For Advertising

Suitable for welding thin plates;3D work bench and the master unit are integrated;

This machine can weld space curve,LED metal,all kinds of words.

Applied in medical,electronics components,circuit boards,IC,battery,instrument, etc.

Company Strength

Metal YAG Laser Welding Machine 500W 1500*1200mm For Advertising

Exhibition

Metal YAG Laser Welding Machine 500W 1500*1200mm For Advertising

Metal YAG Laser Welding Machine 500W 1500*1200mm For Advertising

Packing & Shipping

Metal YAG Laser Welding Machine 500W 1500*1200mm For Advertising

1.Standard plywood case, no need to steam, can export directly.

2. car-lift machine up and down loading. more safe for machine.

3.when importing, the plywood case is with fumigation-free, the procedure is simple.

4.Delivery Detail: within 3-5 days after received your payment.
