500W 1000W 1070nm 8mm CNC Laser Cutting Machine For Metal
500W 1000W 1070nm 8mm CNC Laser Cutting Machine For Metal
Specifications
Brand Name :
AoShuo
Model Number :
2040
Certification :
CE ISO
Place of Origin :
SHANDONG, CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
50/MONTH
Delivery Time :
4 weeks
Packaging Details :
Packing in steel pallet
Name :
1070nm 8mm CNC Laser Cutting Machine
Weight :
3000KG
Laser wave length :
1070nm
Output power :
500W 1000W
Cutting Thickness :
0.2 - 8mm
Working Area :
1500mm*3000mm 2000*4000mm
Cooling Mode :
Water Cooling
Cutting Area :
3000mm*1500mm
Control Software :
Cypcut Control System
Servo Motor :
France Schneider
Cutting Speed :
18m/min , 24m/min
Dimention :
44300mm*2348mm*1730mm
Applicable Material :
Metal
Description

500W 1000W 1070nm 8mm CNC Laser Cutting Machine For Metal

Model introduction of water cooling cnc laser cutting machine:

The water cooling cnc laser cutting machine adopts the most advanced German IPG or SPI or Rofin or Raycus fiber laser in China, combined with the gantry CNC machine tool and high-strength welding body designed by our company, and is processed into a CNC milling machine after high temperature annealing and large precision processing. Driven by precision ball screw and linear guide, it has good rigidity and stability.

The water cooling cnc laser cutting machine adopts IPG international advanced 500w/1000W/2000W/3000W/4000W power fiber laser, German ROFIN laser, imported high-precision ball screw, linear guide and other high-efficiency and high-precision driving mechanisms. The precision CNC fiber laser cutting machine combines imported servo motors with advanced CNC systems. It is a high-tech product integrating laser cutting, precision machinery, and CNC technology. It is suitable for cutting and forming carton steel plates, stainless steel plates, aluminum plates and other metal materials. With the characteristics of high speed, high precision, high efficiency and high cost performance, it is the first choice for industrial metal processing cutting machines.

Product parameter:

Type
AS-500W
AS-1000W
Output power
500W
1000W
The medium of laser
diode-pumped continuous yb-doped fiber
Laser wave length
1070nm
Power
380V/50HZ

Cutting area
3000mm*1500mm
Max cutting speed
18m/min
24m/min
Cooling method
Water cooling
Driving System
Imported Servo Motor
Min line Width
≤0.1mm
Cutting thickness
0.2-8mm (according to material)
Continuous working time
24hours
Weight
About 3000KG
Dimention
44300mm*2348mm*1730mm (length*width*height)
Environment Temperature
5℃ -35℃

Machine Features:

1. Heavy bed, high temperature tempering treatment, large gantry precision processing.

2. Aviation aluminum beam, aging treatment, light weight, corrosion resistance, oxidation resistance, light weight.

3. Taiwan original high-precision rail rack.

4. Japan servo system, Schneider electronic components high stability parts.

5. Industrial-grade high-precision fiber cutting head, water cooling system is stable and durable.

6. Configure large brand lasers with extremely high beam quality and excellent stability.

Cnc laser cutting machine advantages :

1. Excellent Laser Beam Quality: Fiber laser has smaller focus diameter and high work efficiency, high accuracy and cutting quality.


2 High Cutting Speed: cutting speed is more than 20M/min.


3. Stable Running: adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;


4. High Efficiency for Photoelectric Conversion : Compare with CO2 laser cutting machine ,fiber laser cutting machine have 3 times photoelectric conversion efficiency.


5. Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.


6. Free of Maintenance: Fiber optical transmission, fiber line transmission, no need reflect lens, without optical adjustment, save maintenance cost.


7. Easy Operations: fiber line transmission, no adjustment of optical path;


8. Super Flexible Optical Effects: compact design, compact and easy to flexible manufacturing requirements.

Applicable Industries:

Sheet metal processing, kitchen utensils industry, hardware cabinets, lighting industry, craft gifts, tool processing, advertising decoration, precision parts, environmental protection equipment and other manufacturing and processing industries.

What is the maximum cutting thickness?

The cutting thickness is related to the laser power.

300W: 1.5mm stainless steel, 4mm carbon steel

500W: 3mm stainless steel, 6mm carbon steel

1000W: 5mm stainless steel, 12mm carbon steel

2000W: 10mm stainless steel, 18mm carbon steel

Note: Only 1KW or above fiber laser can cut aluminum, copper, brass and other highly reflective metal plates.

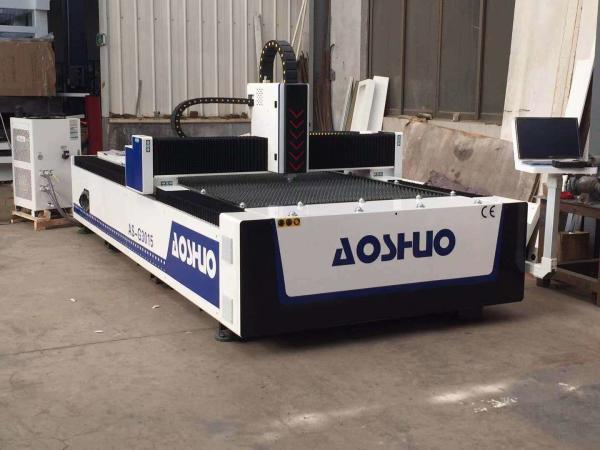

500W 1000W 1070nm 8mm CNC Laser Cutting Machine For Metal500W 1000W 1070nm 8mm CNC Laser Cutting Machine For Metal
