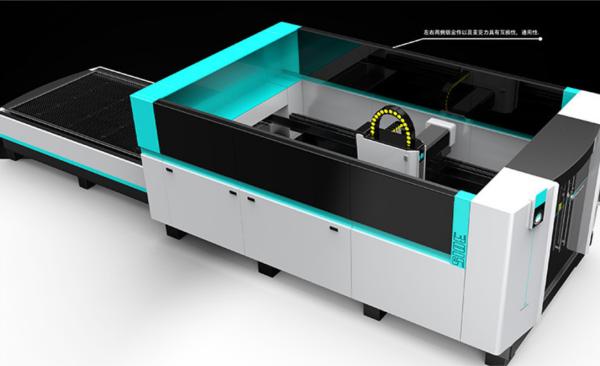

Water Cooling 18m/min 24m/minCNC Laser Cutting Machine
Water Cooling 18m/min 24m/minCNC Laser Cutting Machine
Specifications
Brand Name :
AoShuo
Model Number :
2040
Certification :
CE ISO
Place of Origin :
SHANDONG, CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
50/MONTH
Delivery Time :
4 weeks
Packaging Details :
Packing in steel pallet
Name :
24m/minCNC Laser Cutting Machine
Servo Motor :
France Schneider
Cutting Area :
3000mm*1500mm
Control Software :
Cypcut Control System
Working Area :
1500mm*3000mm 2000*4000mm
Cooling Mode :
Water Cooling
Cutting Thickness :
0.2-8mm
Cutting Speed :
18m/min, 24m/min
Dimention :
44300mm*2348mm*1730mm
Applicable Material :
Metal
Output power :
500W 1000W
Laser wave length :
1070nm
Weight :
3000KG
Key Selling Points :
High productivity
Function :
Cutting Metal Materials
Laser Type :
Fiber Laser
Description

Water Cooling 18m/min 24m/minCNC Laser Cutting Machine

Cnc laser cutting machine advantages :

1. Excellent Laser Beam Quality: Fiber laser has smaller focus diameter and high work efficiency, high accuracy and cutting quality.
2 High Cutting Speed: cutting speed is more than 20M/min.
3. Stable Running: adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High Efficiency for Photoelectric Conversion : Compare with CO2 laser cutting machine ,fiber laser cutting machine have 3 times photoelectric conversion efficiency.
5. Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Free of Maintenance: Fiber optical transmission, fiber line transmission, no need reflect lens, without optical adjustment, save maintenance cost.
7. Easy Operations: fiber line transmission, no adjustment of optical path;
8. Super Flexible Optical Effects: compact design, compact and easy to flexible manufacturing requirements.

Product parameter:

Type
AS-500W
AS-1000W
Output power
500W
1000W
The medium of laser
diode-pumped continuous yb-doped fiber
Laser wave length
1070nm
Power
380V/50HZ

Cutting area
3000mm*1500mm
Max cutting speed
18m/min
24m/min
Cooling method
Water cooling
Driving System
Imported Servo Motor
Min line Width
≤0.1mm
Cutting thickness
0.2-8mm (according to material)
Continuous working time
24hours
Weight
About 3000KG
Dimention
44300mm*2348mm*1730mm (length*width*height)
Environment Temperature
5℃ -35℃

Appication Industries

Widely used in electrical power, automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising signs, car decoration, sheet metal production, lighting hardware, display equipment, precision components, metal products and other industries;

Application materials

Specialized fast speed cutting of a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, steel, various alloy plate, rare metal and other materials

Professional cutting of 0.5 ~ 6mm carbon steel plate, 0.5 ~ 5mm stainless steel, galvanized sheet, electrolytic plate, silicon steel and other thin metal material.

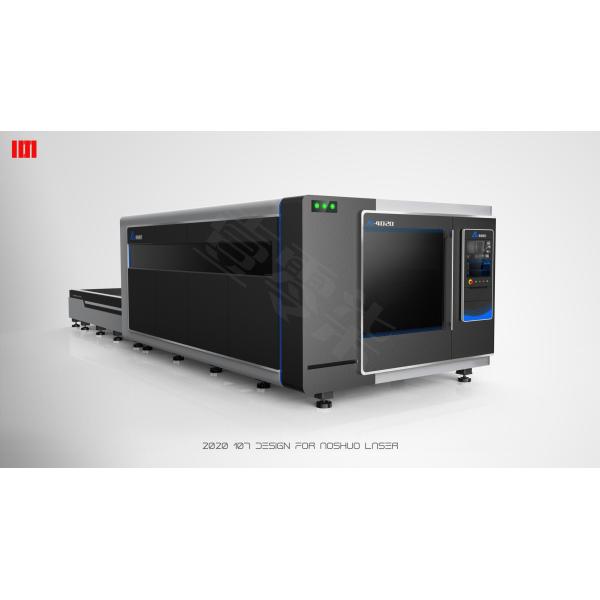

Water Cooling 18m/min 24m/minCNC Laser Cutting MachineWater Cooling 18m/min 24m/minCNC Laser Cutting Machine
