BT-230 Raytools Laser Cutting Head of 500w 800w 1000w Fiber Laser Cutting Machine
BT-230 Raytools Laser Cutting Head of 500w 800w 1000w Fiber Laser Cutting Machine
BT-230 Raytools Laser Cutting Head of 500w 800w 1000w Fiber Laser Cutting Machine
BT-230 Raytools Laser Cutting Head of 500w 800w 1000w Fiber Laser Cutting Machine
BT-230 Raytools Laser Cutting Head of 500w 800w 1000w Fiber Laser Cutting Machine
BT-230 Raytools Laser Cutting Head of 500w 800w 1000w Fiber Laser Cutting Machine
Specifications
Brand Name :
aoshuo
Model Number :
BT-240
Certification :
CE ISO
Place of Origin :
SHANDONG, CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50/MONTH
Delivery Time :
3 weeks
Packaging Details :
Packing in steel pallet
Product Name :
Cutting Head
Model :
BT-230
Appliaction :
Fiber Laser Cutting Machine
Weight :
1.5kg
Brand :
Raytools
High Light :
laser cutting machine parts, laser scan head
Description

Industrial Cutting Head of 500w 800w 1000w Fiber Laser Cutting Machine

BT210, BT230, BT240CUT SERIES

The series of laser heads BT230 are released by Switzerland RAYTOOLS AG in 2014, which are suitable for small and medium power fiber lasers in industrial applications. The heads have diversification interface settings that allow with a variety of fiber lasers. The optimization of optical design and digital height sensor can make cutting more efficiently.

Magnetic breakaway crash protection can be selected. When a collision occurs, the cutting head and the machine or the robot can be separated reliably, the signal will be output in time and the power supply will be cut off automatically.

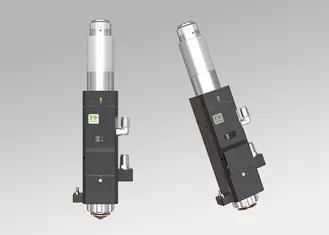

BT-230 Raytools Laser Cutting Head of 500w 800w 1000w Fiber Laser Cutting Machine

BT-230 Raytools Laser Cutting Head of 500w 800w 1000w Fiber Laser Cutting Machine BT-230 Raytools Laser Cutting Head of 500w 800w 1000w Fiber Laser Cutting Machine

Features of laser cutting head:

• Optimized optical configuration and smooth and efficient

airflow design.

• Knob type of focus adjustment, meticulous and flexible,

Adjustable range is 15mm, accuracy is 0.05mm.

• Drawer-type of lens mount, quick and easy access to the

cover glass.

• Modular design, can be equipped with crash protection

devices.

• Optional elongated nozzle link for 3D cutting.

• Optional with 2D/3D magnetic breakaway crash protection.

• With a variety of optical interfaces, can be adapted with a variety of fiber lasers.

Technical Parameters:

Cutting Head
Power Rating ≤1KW
Clear Aperture 25mm
Protection Lens φ27.9mm*4.1mm
Assist gas Pressure ≤20bar
Weight ～1.5kg
COLLIMATION LENS
Clear Aperture 25mm
HEIGHT SENSOR(EtherCAT or ±10V optional)
Standoff Distance Range(1mm Recommended) 0.3-10mm
Calibration Auto Calibrating/Manual Calibrating
Response Time <1ms
Temperature Stability ±5% of Standoff Setting,0℃ to 45℃
Power Requirement 24V
Output(Optimized Curve For Flat Metal or Liner Signal) ±10V Or 0~10V Analog

EtherCAT EDS-88C0(ECAT)

Reference to ECAT product manual

BT-230 Raytools Laser Cutting Head of 500w 800w 1000w Fiber Laser Cutting Machine
