Semi Automatic Package Machinery Die Cutting Machine With Double Location System
Semi Automatic Package Machinery Die Cutting Machine With Double Location System
Semi Automatic Package Machinery Die Cutting Machine With Double Location System
Semi Automatic Package Machinery Die Cutting Machine With Double Location System
Semi Automatic Package Machinery Die Cutting Machine With Double Location System
Semi Automatic Package Machinery Die Cutting Machine With Double Location System
Specifications
Brand Name :
Promega
Model Number :
Pro-SADCM
Certification :
CE
Place of Origin :
Zhejiang, China
MOQ :
One set
Price :
USD 30,000 to 50,000 per set
Payment Terms :
L/C, T/T
Supply Ability :
5 sets per month
Delivery Time :
15 working days
Packaging Details :
In wood case
Condition :
New
Automatic Grade :
Semi-automatic
Max. Paper Size (mm) :
From 1080x780 to 1680x1250
Min. Paper Size (mm) :
From 400x380 to 650x550
Max. Cutting Size :
From 1070x770 to 1650x1220
Die-cutting pressure :
200~300 tons
After Sale Service :
Oversea installation and training
Description

Semi Automatic Package Machinery Die Cutting Machine With Double Location System

The Introduction of Semi Automatic Die Cutting Series

This machine has a lot of features inculing scientific structure, reasonable design, simple operation, smooth running and wide field of application. It is suitable for thick paper board, grey board, corrugated board and carton.This machine can be in stead of manual die cutting machine to improve safety and work efficiency.

Further Feature

1. The Pre-stack Device (optional part) can increase work efficieny and save time to get more profits.

2. This machine use mechanical brush device to press paper. At the same time, it is equiped with bidirectional blowing device to send paper smoothly. Set the function of speed reduction or stopping machine after the paper is full.

Semi Automatic Package Machinery Die Cutting Machine With Double Location System

Semi Automatic Package Machinery Die Cutting Machine With Double Location System

3. The casting is made by high strength resin sand process to improve the precision. This machine uses high precision worm and worm wheel to ensure less deformation in high speed.

Semi Automatic Package Machinery Die Cutting Machine With Double Location System

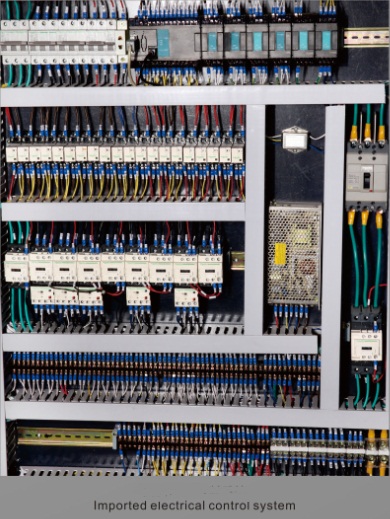

4. This machine uses imported electrical parts and bearing. It uses oil circulation system and PLC automatic control oil pump system to keep machine running smoothly under high speed which will increase the working life of machine.

Semi Automatic Package Machinery Die Cutting Machine With Double Location System

Main Specification

Model Pro-SADCM-1080 Pro-SADCM-1300 Pro-SADCM-1500 Pro-SADCM-1650
Max.Paper Size 1080x780 1320x980 1500x1100 1680x1250
Min. Paper Size 400x380 550x480 550x480 650x550
Max. Cutting Size 1070770 1300x950 1470x1070 1650x1220
Cutting Pressure 200 250 250 300
Thickness of Corrugated Board 1-7 1-8 1-8 1-9
Cutting Precision 0.25mm 0.30mm 0.4mm 0.5mm
Height of Peper Pile 1140 1260 1300 1320
Height of Peper Delivery Pile 1080 1200 1250 1260
Height of Peper Feeding Pile 1298 1400 1500 1580
The Total Power 16.75Kw 17.2Kw 18Kw 20.5Kw
