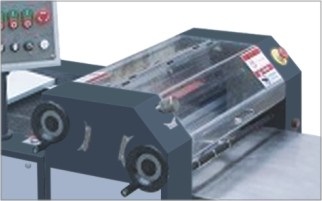

Coating Equipment Manual Control 660 Post Press Equipment 12.0KW
Coating Equipment Manual Control 660 Post Press Equipment 12.0KW
Specifications
Brand Name :
Promega
Model Number :
Prom-MC-660
Certification :
CE
Place of Origin :
Zhejiang, China
MOQ :
1 set
Price :
USD 8,000 ~ 10,000 per set
Payment Terms :
L/C, T/T
Supply Ability :
8 sets per month
Delivery Time :
5 days
Packaging Details :
In wood case
Condition :
New
Automatic Grade :
Manual
Max. Sheet Size :
620x820mm
Min. Sheet Size :
150x210mm
Power :
12.0KW
Weight :
850KG
Dimension :
3250x1180x1230mm
Description

Coating Machine Manual Control 660 Coating Equipment

Introduction

Prom-MC-660 small size manual control UV coating equipment is a newly development and designed machine in our company. Equiped with the features of easily operation and simply maintenance, together with excellent performance which is applicable to post-press small size papers' UV coating and water-base oil coating.

Features:

· This UV Coating Machine is equipped with UV curing and IR drying device.

· Digital frequency converter speed control. And independent conveyor driven.

· Larger diameter coating rollers makes the coating effect smoother & brighter.

· Full coverage splash guards to protect from splashing.

· Used vacuum airbed for maximum hold down the paper sheets on conveying.

· UV magnetic leakage transformer with parallel capacitor design can better endure the voltage fluctuating impact.

· Two level UV lamp power setting.

· Easy access UV lamp chamber and replacement.

· High velocity blower fan for cooling and exhaust.

· Safety locker on all machine doors and covers.

· Full coverage protection against UV radiation around the UV lamp chamber.

· Lower temperature control on the UV lamp chamber surface.

· Emergency stop switches at arms length throughout the machine .

· Interlocks design prevents against misoperation.

Coating Equipment Manual Control 660 Post Press Equipment 12.0KW

Technical Parameters
Model Prom-MC-660
Max. Sheet Size 620x820mm
Min. Sheet Size 150x210mm
Sheet Weight 80~500g/m2
Speed 0~40m/min
Power 12.0Kw
UV Lamp 1PCSx6.5Kw
IR Lamp 3PCSx1.2Kw
Weight

850kg
Dimension 3250x1180x1230mm
