Double Side Semi - automatic Commercial Laminating Machine Film Laminator Machine
Double Side Semi - automatic Commercial Laminating Machine Film Laminator Machine
Specifications
Brand Name :
Promega
Model Number :
PROM-540B
Certification :
CE
Place of Origin :
Zhejiang, China
MOQ :
One set
Price :
USD 6,000 to 10,000 per set
Payment Terms :
L/C, T/T
Supply Ability :
2 sets per week
Delivery Time :
10 days
Packaging Details :
Wooden case
After sale Service :
Oversea installation and training
Automatic Grade :
Fully automatic
The period of warrnty :
1 year
Laminating temperature :
20 ~ 130℃
Max Paper Width :
520mm
Gross Power :
13kw
Description

Double Side Semi-automatic Laminating Equipment Film Laminator Machine

Configuration

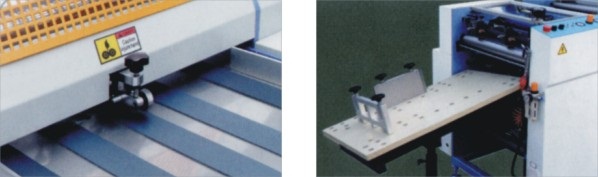

·Machine is equipped with no paper miss sensor, which are controlled by photoelectric and

mechanical systems. When no paper or paper break occurs, the machine will stop automatically

for self-protection.

·Man-machine interface system : color touch screen simplifies the machine operation. On the touch screen, working status of the machine can be checked at any time.

·Upper and down heating roller are equipped with special heater for raising temperature. Individual temperature control perfected the temperature keep steady, ensure the precision of double side lamination temperature.

·Pneumatic pressuring system provides automatically stable pressure to guarantee good laminating quality. And the pressure can also be adjusted upon requests.

·Pneumatic separator system realizes automatic paper separation.

·After separation,paper sheets are collected by jogger.

Technical Parameters
Model Prom-540B
Max Paper Width 680mm
Paper Thickness ≤130℃
Max Laminating speed 25m/min
Gross Power 13kw
Total Weight 1000kg
Overall Dimensions 3300x1150x1450mm

Double Side Semi - automatic Commercial Laminating Machine Film Laminator Machine

Features

Prom-540B semi-auto double side film laminating machine is a small laminator which is

designed and manufactured upon the market needs. The machine has the feature of compact

structure and easy operation. The electric and pneumatic system is controlled by PLC system,

color touch screen. And one person can perate it easily. When the operator inputs paper size on touch screen, the machine can realize automaticaJly paper lamination and cut processes, and is an excellent performance of lamination equipment which is a good choice for small and medium-size enterprises.
