CO2 Die Board Laser Cutting Machine Water Cooling 400W / 600W / 1000W / 1500W
CO2 Die Board Laser Cutting Machine Water Cooling 400W / 600W / 1000W / 1500W
CO2 Die Board Laser Cutting Machine Water Cooling 400W / 600W / 1000W / 1500W
CO2 Die Board Laser Cutting Machine Water Cooling 400W / 600W / 1000W / 1500W
CO2 Die Board Laser Cutting Machine Water Cooling 400W / 600W / 1000W / 1500W
CO2 Die Board Laser Cutting Machine Water Cooling 400W / 600W / 1000W / 1500W
CO2 Die Board Laser Cutting Machine Water Cooling 400W / 600W / 1000W / 1500W
CO2 Die Board Laser Cutting Machine Water Cooling 400W / 600W / 1000W / 1500W
CO2 Die Board Laser Cutting Machine Water Cooling 400W / 600W / 1000W / 1500W
CO2 Die Board Laser Cutting Machine Water Cooling 400W / 600W / 1000W / 1500W
CO2 Die Board Laser Cutting Machine Water Cooling 400W / 600W / 1000W / 1500W
CO2 Die Board Laser Cutting Machine Water Cooling 400W / 600W / 1000W / 1500W
Specifications
MOQ :
1 set
Payment Terms :
T/T, L/C
Packaging Details :
all parts will be packaged by wood case (plywood)
Application: :
LASER CUTTING
Applicable Material: :
Acrylic, Leather, MDF, Metal, Plywood
Cutting Area: :
1200*1800mm 1200*2400
Cutting Speed: :
0-2000mm/min
Laser Type: :
CO2, CO2
Graphic Format Supported: :
AI, Dwg, DXF
Cooling Mode: :
WATER COOLING
After-sales Service Provided: :
Online support, Video technical support
Laser power: :
400W / 600W / 1000W / 1500W
Laser Source: :
Co2 glass tube / Laser generator
Description
Product Description

The laser cutting machine is configured with a travelling table and stationary gantry design, to provide a rigid and stable platform as well as a small floor space.

A specialized laser cutting machining process package is supplied with the machine, it is very convenient to use or modify the different machine parameter correspond to different slit width or different thickness.

Each laser cutting machine includes the proprietary laser machining technology, the High-speed response Laser Power Slope adjusts the switch light –spot, tool path compensation, leapfrog movement, re-positioning and retracting machining.

The laser cutting machine is configured with a three directions optical design, available for different customer environments. The machine is enclosed optical path and positive pressure dust removal, to ensure the long life of the lens.

Technical parameters and machine capacity
NO.
Item Name
Pro-1218-400
Pro-1218-600
Pro-1218-1000
Pro-1225-1000
Pro-1225-1500
Unit
1
Maximum cutting board (machining material) size
1250x1850
1250x1850
1250x1850
1250x2500
1250x2500
mm
2
X-axis travel range
1850
1850
1850
2500
2500
mm
3
Y-axis travel range
1280
1280
1280
1280
1280
mm
4
Z-axis travel range
fixed
fixed
120
120
120
mm
5
X and Y axis positioning accuracy
±0.03
±0.03
±0.03
±0.03
±0.03
mm
6
X and Y axis repeatitive positioning accuracy
±0.01
±0.01
±0.01
±0.01
±0.01
mm
7
The largest machine positioning speed
30
30
30
30
30
mm/s
8
Cutting ability machining capacity
8
10
18
18
26
mm/s

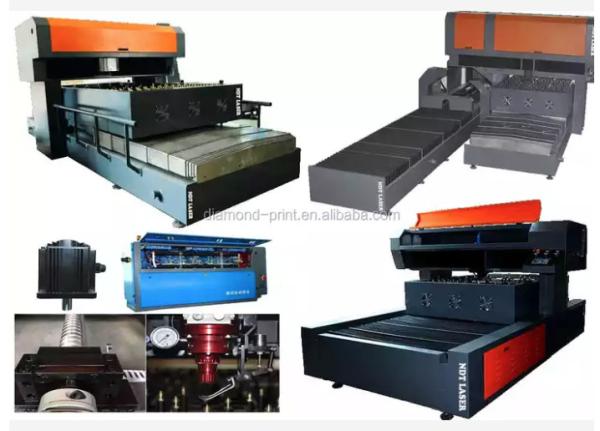

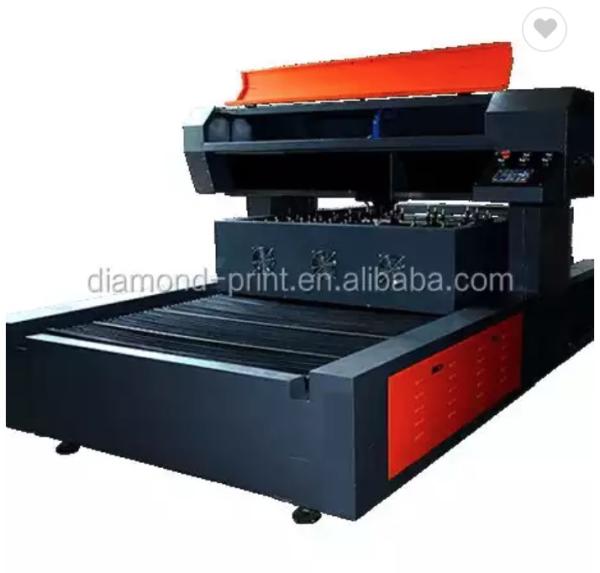

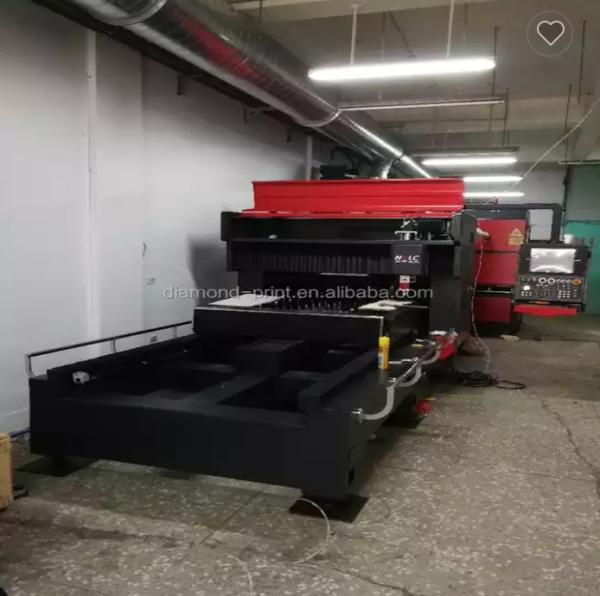

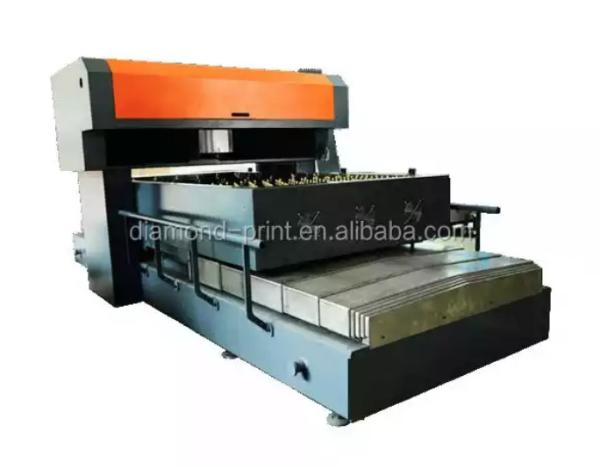

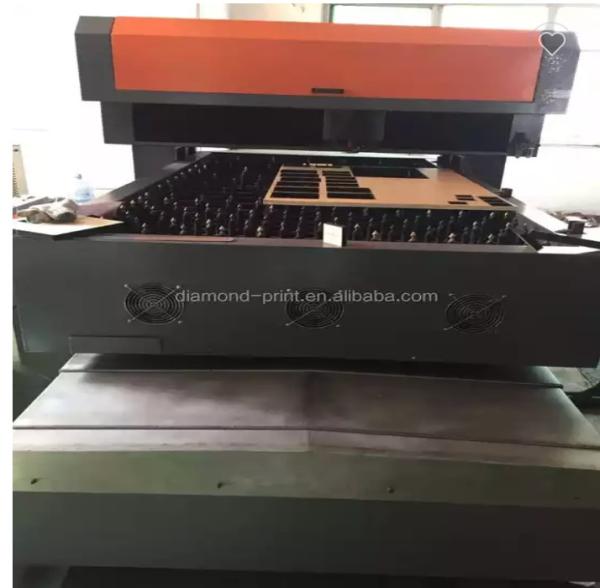

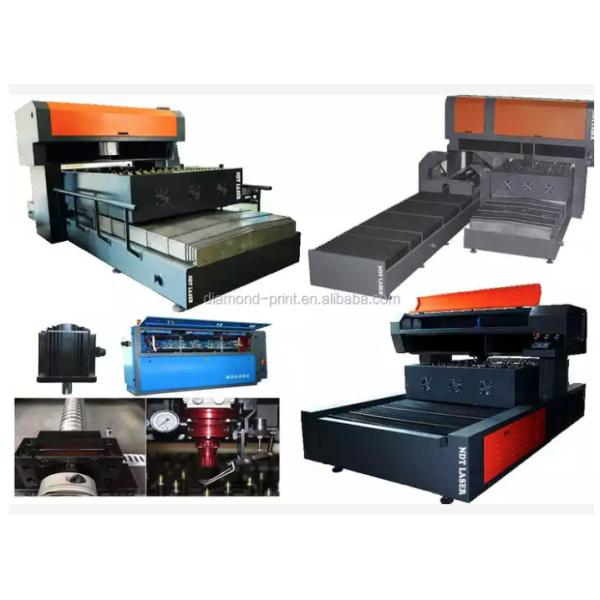

Products Show
CO2 Die Board Laser Cutting Machine Water Cooling 400W / 600W / 1000W / 1500WCO2 Die Board Laser Cutting Machine Water Cooling 400W / 600W / 1000W / 1500W
CO2 Die Board Laser Cutting Machine Water Cooling 400W / 600W / 1000W / 1500W
Our Service

※Manual and video will be sent to you for training and learning how to install the laser cutting machine.
Internet remote assistance is available everyday.
※Engineer could be sent to you for dealing with the installation and training.
Users will take responsibility to take care of tickets, accommodation, food and cooperating with the engineer we dispatch.
※You get 5 days for free training, if you are in our laser cutting machine factory.

Packing & Delivery

Packing Details : All parts will be packed in wooden case

Delivery Details : 3-30 days after order

Payment Terms: 30 as deposit, all balance before shipment
