100m Range Laser Measurement Solutions Module High Accuracy For Robot
100m Range Laser Measurement Solutions Module High Accuracy For Robot
100m Range Laser Measurement Solutions Module High Accuracy For Robot
100m Range Laser Measurement Solutions Module High Accuracy For Robot
100m Range Laser Measurement Solutions Module High Accuracy For Robot
100m Range Laser Measurement Solutions Module High Accuracy For Robot
Specifications
Brand Name :
JRT
Model Number :
B605B001
Certification :
FDA
Place of Origin :
Chengdu China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pcs/day
Delivery Time :
1-3 working days
Packaging Details :
neutro-packing
BRAND NAME: :
JRT
PRODUCT NAME :
B605B 100m Low Cost Laser Distance Sensor Module robot Measurement System
CERTIFICATION :
FDA/ISO9001
PLACE OF ORIGIN :
China
ACCURACY :
+-1mm
MODEL :
B605B
Description

100m Range Laser Measurement Solutions Module High Accuracy For Robot

Description:

This module can be called secondary development , which support TTL level and CMOS. JRT laser distance sensor module 100m can be widely used in professional surveying, mapping, construction, robots, hunting arrows, industrial monitoring and automated measurement applications in electricity, transportation, etc. OurLow Cost Laser Distance Sensor supports data communication via bluetooth,RS232,RS485, USB,BeagleBoard,Renesas controller,and also can be applied to Arduino, Raspberry Pi, UDOO, MCU etc. It`s different from other sellers ,we can produce low price laser distance module as your demand and provide consistently technique support and after sales service for customers.

Laser Measurement System Sensor Feature:

1. Data output: RXTX, USB, RS232, RS485, Bluetooth optional

2. Support single measurement/continous measurement

3. Good for Industrial Application Measurement System

Specifications of Laser Measurement System Sensor:

Accuracy ±1 mm (0.04 inch)
Measuring Unit meter/inch/feet
Measuring Range (without Reflection) 0.03-150m
Measuring Time 0.125~4 seconds
Laser Class Class II
Laser Type 635nm, <1mW

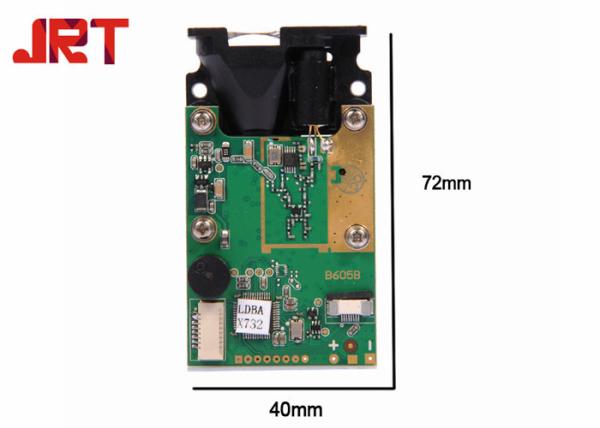

Size 72*40*18mm (±1 mm)
Weight About 25g
Voltage DC2.0~3.3V
Electrical Level TTL/CMOS
Frequency 8Hz
Operating Temperature 0-40 ℃ (32-104 ℉ )
Storage Temperature -25~60 ℃ (-13~140 ℉)

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.

3.120m,150m can be customized.

4. Voltage can be changed by power converter LDO

5. Frequency would be affected by environment.

6. Operating temperature -10 ℃~50 ℃ can be customized.
