B87A Bluetooth High Precision Laser Distance Sensor Smart Measurement Transducer
B87A Bluetooth High Precision Laser Distance Sensor Smart Measurement Transducer
Specifications
Brand Name :
JRT
Model Number :
B87A
Certification :
CE ,ISO9001,ROHS, FCC ,FDA.
Place of Origin :
Chengdu China
MOQ :
1
Price :
Welcome to contact us for discussion
Payment Terms :
T/T, Western Union, Pay pal
Supply Ability :
10000 pcs/day
Delivery Time :
1-3 working days
Packaging Details :
neutro-packing
PRODUCT NAME :
Bluetooth High Precision Laser Distance Sensor
ACCURACY :
+-1mm
size :
63.7*40*18mm (±1 mm)
Weight :
About 25g
Measuring Range :
0.03-120m
Voltage :
DC2.0~3.3V
Description

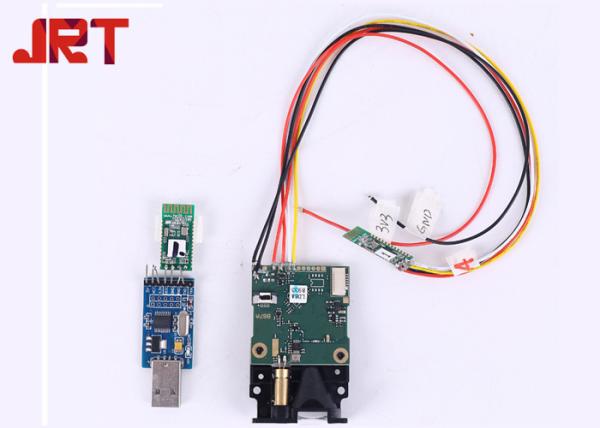

B87A Bluetooth High Precision Laser Distance Sensor Smart Measurement Transducer

Description:

The Bluetooth High Precision Laser Distance Sensor measuring rang is 0.03-120m and the size is 63.7*40*18mm. Usually this Smart Bluetooth High Precision Laser Distance Sensor frequency is 3Hz.
You can use for it connecting your mobile device,such as mobile phone and computer. It is very convenient.
For different measuring program, our modules can satisfy customers different requirement. 30m, 40m, 60m, 80m, 100m, 120m, 150m, each distance can be multifunctional, such as :Height/Distance/Area/Volume/Pythagorean Measurement. Voice, Bluetooth, angle measuring, beep, and any other functions can be customized.

High Precision Laser Distance Sensor Feature:

1. Good for Industrial high precision laser distance sensor

2. Support single measurement/continous measurement

3. Data output: RXTX, USB, RS232, RS485, Bluetooth optional

Specifications of High Precision Laser Distance Sensor:

Certification FDA/ISO9001/CE/ROHS/FCC
Product Name Bluetooth High Precision Laser Distance Sensor
Model Number B87A
Brand Name JRT
Place of Origin China
Accuracy ±1 mm (0.04 inch)
Measuring Unit meter/inch/feet
Measuring Range (without Reflection) 0.03-120m
Measuring Time 0.125~4 seconds
Laser Class Class II
Laser Type 635nm, <1mW
Size

63.7*40*18mm (±1 mm)
Weight About 25g
Voltage DC2.0~3.3V
Electrical Level TTL/CMOS
Frequency 3HZ~8Hz
Operating Temperature 0-40 ℃ (32-104 ℉ )
Storage Temperature -25~60 ℃ (-13~140 ℉)
Packaging Neutro-packing

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.

3.120m,150m can be customized.

4. Voltage can be changed by power converter LDO

5. Frequency would be affected by environment.

6. Operating temperature -10 ℃~50 ℃ can be customized.
