Carbon Stainless Steel Optical Fiber Laser Cutting Machine
Carbon Stainless Steel Optical Fiber Laser Cutting Machine
Carbon Stainless Steel Optical Fiber Laser Cutting Machine
Carbon Stainless Steel Optical Fiber Laser Cutting Machine
Carbon Stainless Steel Optical Fiber Laser Cutting Machine
Carbon Stainless Steel Optical Fiber Laser Cutting Machine
Carbon Stainless Steel Optical Fiber Laser Cutting Machine
Carbon Stainless Steel Optical Fiber Laser Cutting Machine
Carbon Stainless Steel Optical Fiber Laser Cutting Machine
Carbon Stainless Steel Optical Fiber Laser Cutting Machine
Carbon Stainless Steel Optical Fiber Laser Cutting Machine
Carbon Stainless Steel Optical Fiber Laser Cutting Machine
Specifications
Brand Name :
DWIN
Model Number :
DW1530
Certification :
CE FDA SGS
Place of Origin :
China
MOQ :
1set
Price :
14500-19000usd
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets / month
Delivery Time :
10-20 working days
Packaging Details :
Plywood box
working area :
1500*3000mm
laser type :
fiber laser
laser power :
1000w /1500w
motor :
Delta / FUJI
control system :
cypone control system
Cooling :
CWFL 1000 / 1500
Warranty :
24 months
Rails :
25mm HIWIN / PMI Liner guide rails
Reducer :
Japanese Shimp / Germany Neugart
Laser head :
Raytools / WSX
Transmission :
Taiwan YYC rack
Fiber source :
Raycus / Max
Description

fiber optic laser cutting machine price for carbon stainless steel

Features

The cutting machine adopts international famous brand advanced laser, which has high electro-optical efficiency, water-saving and power-saving. Especially important, it can be free of maintenance for a long time, save a lot of maintenance funds and time, and improve work efficiency.

The overall main frame adopts gantry structure worktable. The high damping bed has good rigidity, high precision and stable operation. The frame structure is made of high-quality steel honeycomb welding. The machine tool is annealed, twice aged and processed by large-scale gantry milling machine. These design and processing means ensure that the machine tool has excellent seismic resistance, high rigidity and stability. It fully meets the stability requirements of the machine tool in high-speed motion.
The high precision double side rack and pinion drive and linear guide rail are adopted, and the powerful dual drive servo motor drive system is used to effectively ensure the speed and accuracy of laser cutting.

Technical parameter:

MODEL DW3015F
Function METAL PLATE CUTTING
Laser power 800W/1000W/1500/2000/3000W
Working area 1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm
Transmission system Gear + Rails
MAX CUTTING SPEED 60m/min
X.Y axis location accuracy ±0.01mm
X.Y axis repeat location accuracy ±0.01mm
Cutting thickness Detailed in the following cutting thickness
Machine size 4800X2280X2300MM
Guiderail Brand HIWIN
Cutting Thickness 0-30mm
Cutting Speed 0-60m/min
Cutting Area 1500mm*3000mm
Applicable Material Metal

Carbon Stainless Steel Optical Fiber Laser Cutting Machine

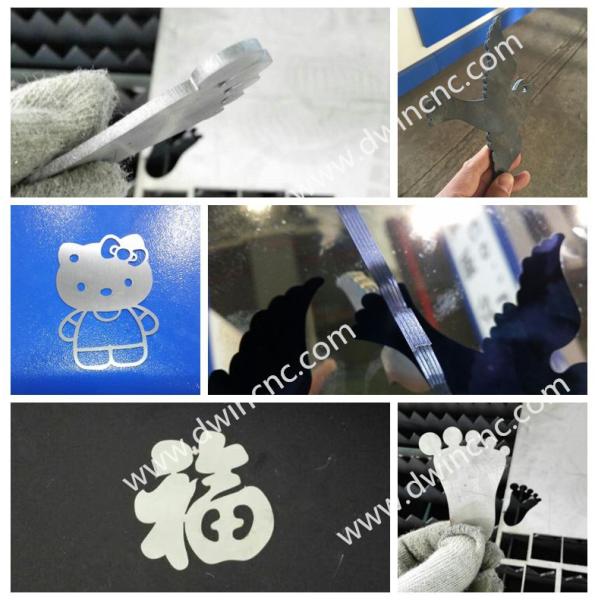

Samples

Carbon Stainless Steel Optical Fiber Laser Cutting Machine

Product tags

fiber laser cutting stainless steel

,

stainless steel laser cutting machine

,

laser cutting machine stainless steel
