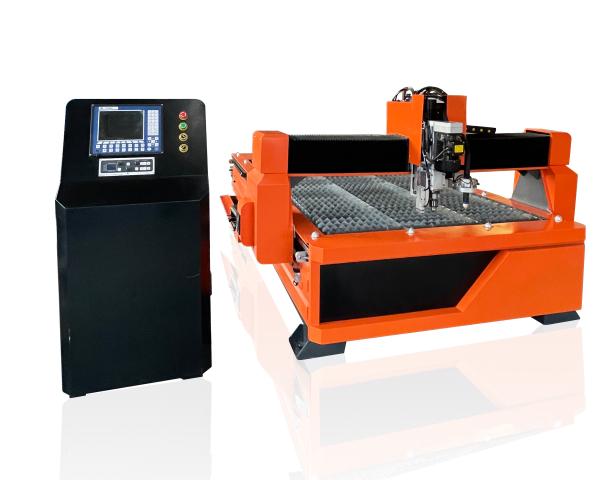

63A 100A 120A 160A 200A Plasma Machine 4x8 Feet CNC 1300x2500mm
63A 100A 120A 160A 200A Plasma Machine 4x8 Feet CNC 1300x2500mm
63A 100A 120A 160A 200A Plasma Machine 4x8 Feet CNC 1300x2500mm
63A 100A 120A 160A 200A Plasma Machine 4x8 Feet CNC 1300x2500mm
63A 100A 120A 160A 200A Plasma Machine 4x8 Feet CNC 1300x2500mm
63A 100A 120A 160A 200A Plasma Machine 4x8 Feet CNC 1300x2500mm
Specifications
Brand Name :
DWIN
Model Number :
DW1325
Certification :
CE FDA SGS
Place of Origin :
China
MOQ :
1set
Price :
5000-8000usd
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets / month
Delivery Time :
8-10 working days
Packaging Details :
Plywood box
working area :
1300*2500mm
laser type :
plasma laser
laser power :
63A / 100A / 120A /160A /200A
plasma source brand :
china Huayan/Hyperthem option
controller :
Beijing start
Motor :
Leadshine stepper motor and driver
Warranty :
24 months
Working table :
Blade working table
Rails :
25mm HIWIN / PMI Liner guide rails
Transmission :
Rack transmission
Description

4x8 feet plasma cutting machine cnc plasma metal cutter machine

1. Welded lathe bed of thick-wall profiled steel, more solid and stable.
2. Reasonable lathe table design, 10 mm thickness steel plates fixed on lathe table covered by castsheath with spikes. Steel plates will not be damaged even under raging flame. The level difference ofwhole double-deck platform remains in 0-1.5mm.
3. Advanced material inclined discharging design. All finished work pieces and fragments slide intoboth sides of tunnel for safe and convenient collection.
4. Panasonic Servo motor,Taiwan servo speed reducing device and high accuracy rack transmission.Lower noise, stable and accurate coordinate movement.
5. China made Huayuan Plasma source or American hyperthem or Thermadyne plasma source together with high sensitive arc pressure adjuster. Self-adjusting to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy.
6. Best choice for all kinds of different thickness material and heterotypic sheet cutting.

63A 100A 120A 160A 200A Plasma Machine 4x8 Feet CNC 1300x2500mm

Technical parameter:

Model Parameter Cnc plasma cutting machine
Model DW1325
Working size 1300*2500mm
Three axes Repeat positioning accuracy ±0.05mm
Process precision ±0.35mm
Transmission system 25mm HIWIN /PMI Rails + Taiwan Rack transmission Z the arc voltage control
Max. cutting speed 15000mm/min
Working voltage AC380v , 3 phase
Control system Start / Starfire
Software support FASTCAM, AutoCAD
Instruction format G code
Drive system Leadshine stepper motor and driver
Plasma power 63A / 100A /120A /160A /200A /300A Huayuan
Machine body 1500KG
Working pressure 0.65-0.8Mpa ( For 160A)

Samples :

63A 100A 120A 160A 200A Plasma Machine 4x8 Feet CNC 1300x2500mm
