6kw Tube And Sheet Fiber Laser Cutting Machine 1kw 2kw
6kw Tube And Sheet Fiber Laser Cutting Machine 1kw 2kw
6kw Tube And Sheet Fiber Laser Cutting Machine 1kw 2kw
6kw Tube And Sheet Fiber Laser Cutting Machine 1kw 2kw
Specifications
Brand Name :
DWIN
Model Number :
DW1530
Certification :
CE FDA SGS
Place of Origin :
China
MOQ :
1set
Price :
19800-35000usd
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets / month
Delivery Time :
10-20 working days
Packaging Details :
Plywood box
working area :
1500*3000mm
laser type :
fiber laser
laser power :
1000w /1500w
motor :
Delta / FUJI
control system :
cypcut control system
Cooling :
CWFL 1000 / 1500
Warranty :
24 months
Rails :
25mm HIWIN / PMI Liner guide rails
Reducer :
Japanese Shimp / Germany Neugart
Laser head :
Raytools / WSX
Transmission :
Taiwan YYC rack
Fiber source :
Raycus / Max
Description

Sheet & Tube 1kw 2kw-6kw FIber Laser Cutting Machine

fiber laser metal tube cutting machine fiber tube laser cutter cutting machine for stainless steelFiber tube and plate working processing combination, wide processing range, speed adjustable electric rotary shaft, saves cost and space. Best choice for professional processing of tubular construction!!

Technical parameter:

Product Name
Sheet & Tube 1kw 2kw-6kw FIber Laser Cutting Machine
Working Area
3000*1500mm
Tube length
3m/6m
Tube Diameter
20 ~ 200mm
Working Power
2000W
Laser Type
Fiber Laser
Cutting Speed
35m/min
Cooling Mode
Water Cooling
Positionig accuracy
0.03mm
Reposition accuracy
0.02mm
Min.line width
0.1mm
Drive system
Servo motor
Power allocation
380V/220V±10%,50Hz/60Hz
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

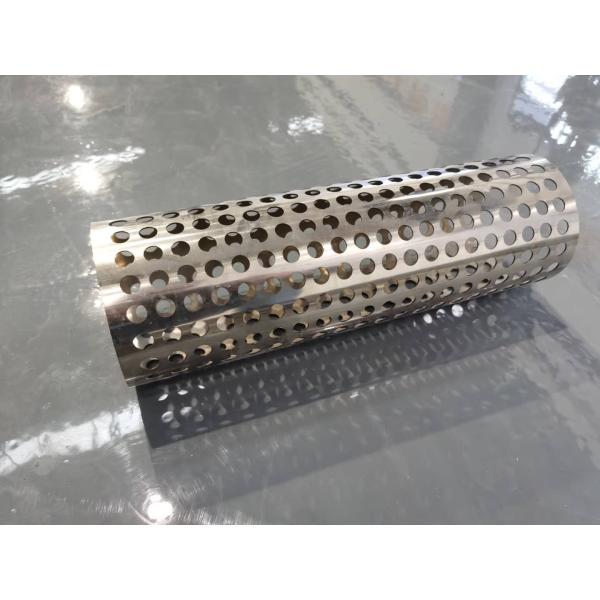

Samples

6kw Tube And Sheet Fiber Laser Cutting Machine 1kw 2kw
