CO2 Fiber Laser Engraving Cutting Machine 40W 60W 80W 2 In 1 CW3000
CO2 Fiber Laser Engraving Cutting Machine 40W 60W 80W 2 In 1 CW3000
CO2 Fiber Laser Engraving Cutting Machine 40W 60W 80W 2 In 1 CW3000
CO2 Fiber Laser Engraving Cutting Machine 40W 60W 80W 2 In 1 CW3000
Specifications
Brand Name :
DWIN
Model Number :
DW9060
Certification :
CE FDA SGS
Place of Origin :
China
MOQ :
1set
Price :
4500 usd-6000usd
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 sets / month
Delivery Time :
8 working days
Packaging Details :
Plywood box
Name :
Fiber & CO2 laser machine combined 2 in 1
Working area :
90x60cm
Power :
CO2 laser 40W 60W 80W 100W 130W fiber laser 20W 30W 50W
Cooling mode :
CW3000 or CW5000 water cooling
controller :
Ruida control system
Working table :
Honeycomb table /blade table
Net weight :
350KG
Warranty :
24 months
Brand name :
DWIN
Condition :
New
Description

Fiber & CO2 laser machine combined 2 in 1 for engraving both metal and nonmetal

Machine description:

This fiber & CO2 laser machine with both fiber laser source and CO2 laser tube ,can working on both metal sheets and nonmetal sheets . For the metal materials, mainly used for engraving, for the nonmetal can both engraving and cutting .

Engraving Materials:

Different metal sheets (steel,aluminum,galvanized sheet ,etc )Wood, acrylic, plastic, glass, leather, curtian, fabric, ceramics, mylar , pressboard and coated metal ,etc

Cutting Materials:

Wood, acrylic, plastic, delrin, cloth, leather, melamine, paper, rubber, veneer, cork, etc

Application Industries:

Advertising signs and boards, nameplates, arts and crafts, awards and trophies, paper-cutting,architectural model, lights and lamps, printing and packaging, electronics, photo frames and albums, garment leather and other industries.

Fiber & CO2 laser machine Parameter

Model DW9060 fiber & CO2 laser machine
Working area 900x600mm
Laser type CO2 laser tube
Cooling mode Water chiller CW3000
Fiber laser source 20W/30W/50W Raycus (lifespan 100,000 hours)
CO2 Laser power 90W /100W/130W RECI(lifespan 10,000 hours)
Engraving speed 0-60000mm/min
Cutting speed 0-10000mm/min
Minimum shaping character Letter 1mm, Chinese 2mm
Power supply 220V±10% /50HZ , 110V±10%//60HZ
Graphic format supported BMP, PLT, DST, DXF, AI,CDR,GIF,DWG
Software supported CorelDraw, PhotoShop, AutoCAD
Laser Output Control 1-100% software setting
Highest Scanning Precision 2500DPI
Resolution ratio <0.01mm
Location precision <0.01mm
Working temperature/ Operating humidity 5°C-40°C/ 5%-95%(without condensed water)
Net Weight 350kg

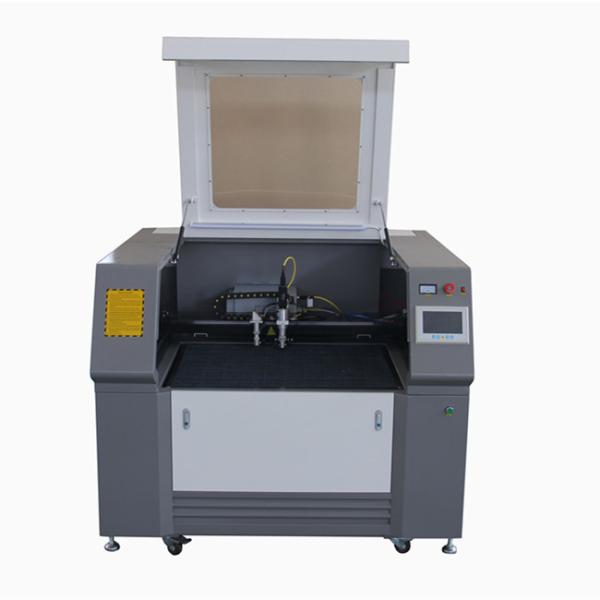

Fiber & CO2 laser machine with two laser heads , one is Fiber for engraving on metal sheets, another is CO2 fiber nonmetal materials engraving cutting:

CO2 Fiber Laser Engraving Cutting Machine 40W 60W 80W 2 In 1 CW3000

The fiber & CO2 laser machine with touch screen:

CO2 Fiber Laser Engraving Cutting Machine 40W 60W 80W 2 In 1 CW3000

Fiber & CO2 laser machine samples:

CO2 Fiber Laser Engraving Cutting Machine 40W 60W 80W 2 In 1 CW3000

FAQ:

Q1: This is the first time I buy this machine, what type of the machine should I choose?
Please tell us what material will be marked/engraved and the depth of marking/engraving, our professional sales will advise you the suitable model machines.

Q2: How do you ensure that it's the right machine I need? Or How can I check the quality?
You can ship us your sample material and marking content for testing, samples will be done within 1-2 days after get your sample material, then we take pictures and video for you or can ship it back to you for quality checking.

Q3: I don't have experience to operate this machine, what should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q4: What payment terms can you accept?
Any payment is possible for us, like TT, Western Union, Paypal, E-Checking, Master Card, Cash etc.

Q5: How do you ship the machine to me?
Generally, it was shipped by sea or by Air.

Q6: What’s the package? Is it safe enough to protect the products?
We have 3 layers package. For the outside, we use wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
