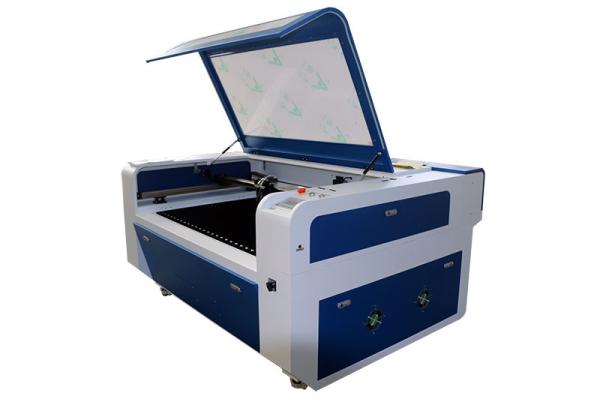

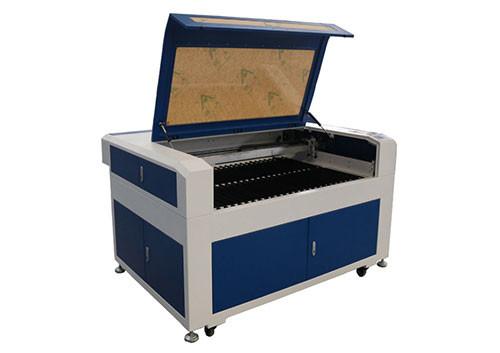

Multi - Function CO2 Laser Engraving Cutting Machine For Paper Wood Acrylic
Multi - Function CO2 Laser Engraving Cutting Machine For Paper Wood Acrylic
Multi - Function CO2 Laser Engraving Cutting Machine For Paper Wood Acrylic
Multi - Function CO2 Laser Engraving Cutting Machine For Paper Wood Acrylic
Specifications
Brand Name :
Hyunvan
Model Number :
HYY-1390
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Set Per Month
Delivery Time :
3 Days
Packaging Details :
Wooden Carton
Product Name :
Multi-Function Laser Engraving Cutting Machine for Paper Wood Acrylic
Cutting Speed :
0-30000mm/min
Drive Motor :
Stepper Motor
Cutting Area :
1300mmx900mm
Graphic Format Supported :
AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Guide Rail :
PMI
Description

Multi-Function Laser Engraving Cutting Machine for Paper Wood Acrylic

Specifications:

* Imported high-precision linear guide rail transmission makes the optical laser path and movement more stable,and better cutting and engraving effects.

* Advantage DSP control system,fast speed,easy operation,

* High engraving cutting speed,greatly improving the processing efficiency,

* Motorized up-down table optional to allow customers to process thick materials. Rotary optional for engraving cylindrical
objects, such as wine bottles and pen vases,etc.

* We can make double or more laser heads to improve work efficiency.

Technical Parameters

Product name CO2 laser engraving and cutting machine
Machine Models: HYY6040 HYY9060 HYY1290 HYY1390 HYY1490 HYY1610
Processing area 600*400mm/900*600mm/1200*900mm/1300*900mm/1400*900mm/1600*1000mm
Laser Power 60W-300W
Laser type Sealed Co2 glass laser tube
Cooling method Pure circulating Water cooling
Repetition accuracy <±0.01mm
Software Laser cut 5.3, CorelDraw AutoCAD Photoshop
Cutting speed 0-1000mm/min
Engraving speed 0-6000mm/min
Cutting thickness 0-25mm acrylic(others according to material)
Control system DSP offline control system,laser power software 0-100% adjustable
Interface USB
Support graphic format DST, PLT, BMP, DXF,DWG,AI,LAS,Support Auto CAD,CoreDraw software
Driving mode DC0.8A 24V stepper motor
Cooling way Circulation water cooling
Voltage AC 100 - 240V±10%, 50 - 60Hz
Operating temperature 0-45 ℃
Operating humidity 5-95%
Options Up and down working table/Rotary
Packaging Wooden box
Warranty time 1 years,laser tube 8 months
Operation Video instruction
Machine Configuration:

Type: pure circulating water cooling

Quality Assurance: 6 months

Advantages: good spot pattern, fast cutting speed, long life and good stability. The laser output mode will not change during the service life.

Multi - Function CO2 Laser Engraving Cutting Machine For Paper Wood Acrylic
The laser cutting head is an important part of the laser cutting machine.
Multi - Function CO2 Laser Engraving Cutting Machine For Paper Wood Acrylic

Aplication Industry:

Advertising signs and boards,arts and crafts,awards and trophies,paper-cutting,architectural model,lights

and lamps,printing and packaging,electronic appliances,photo frames and albums,garment leather and other industries.

Aplication Materials:

Wood products,paper,plastic,rubber,acrylic,bamboo,marble,double-color sheets,glass,wine bottles and other non-metal materials.

Multi - Function CO2 Laser Engraving Cutting Machine For Paper Wood Acrylic

Multi - Function CO2 Laser Engraving Cutting Machine For Paper Wood Acrylic

Pre-Sale and In-Sale Service

We offer consulting service, sample’s process experiment, equipment selection, training to the engineers and the user of the buyer.

Training:

After the acceptance check by the buyer, we offer free training and maintenance guidance.

Training content:

1.Laser safety protection knowledge, the basic principles of lasers and laser marking machine construction.

2.Control system operating skills, equipment operation and precautions.

3.Equipment routine maintenance, laser adjustment and parts replacement operation skills.

Warranty & Service

Our company offer Two-Year warranty and lifetime maintenance for the buyer.

During the warranty period, if there is any malfunction in the course of using the equipment (except the man-made factors and factors other than force majeure), we offer free maintenance.

The parts which need to change is also provided by us (except the consumable parts).

After the warranty period, we will charge appropriately according to the maintenance situation.
