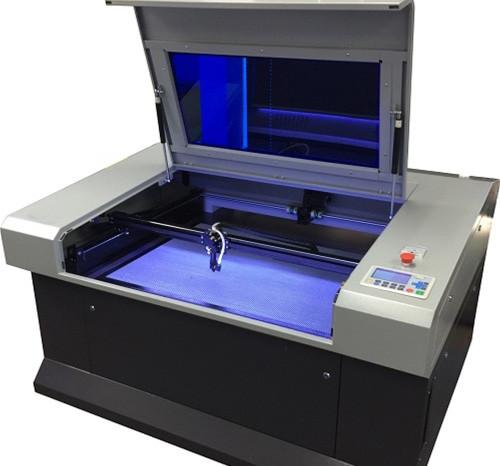

1390 100W Co2 Laser Engraving Cutting Machine Engraver Cutter Low Power Consumption For Crafts
1390 100W Co2 Laser Engraving Cutting Machine Engraver Cutter Low Power Consumption For Crafts
1390 100W Co2 Laser Engraving Cutting Machine Engraver Cutter Low Power Consumption For Crafts
1390 100W Co2 Laser Engraving Cutting Machine Engraver Cutter Low Power Consumption For Crafts
Specifications
Brand Name :
Hyunvan
Model Number :
HYY-CB100
Certification :
CE,FDA
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30Set Per Month
Delivery Time :
2 Days
Packaging Details :
Wooden Carton
Product Name :
1390 80W CO2 Laser Cutting and Engraving Machine For Non-metal Materials
Engraving speed :
0-6000mm/min
Application :
laser cutting
Cutting Area :
1300mmx900mm
Graphic Format Supported :
AI, PLT, DXF, BMP, DST, DWG, DXP
Description

1390 100W CO2 Laser Cutting and Engraving Machine For Non-metal Materials

Specifications:

* Laser school system is closed,light stability,without debugging.

* Low power consumption,long laser life,after power reduction inflatable continue to use.

* The software adjusts the power,support PLT,DXF,BMP and other file formats

* Support automatic coding,jump numbers,bar codes and two-dimensional code marking.

Technical Parameters

Product name CO2 laser engraving and cutting machine
Processing area 1300*900mm
Laser Power 40w 60W 80W 100W 150W 180W 200W 280W
Laser type Sealed Co2 glass laser tube
Cooling method Water cooling
Resetting positioning accuracy ±0.01mm
Software Laser cut 5.3, CorelDraw AutoCAD Photoshop
Machine size 1600mm*1000mm*1100mm
Cutting speed 1-6000mm/min
Engraving speed 1-1000mm/min
Cutting thickness 0-25mm acrylic(others according to material)
Position system Red dot
Interface USB
Minimum line width 0.1mm
Support graphic format DST, PLT, BMP, DXF
Driving mode DC0.8A 24V stepper motor
Cooling way Circulation water cooling
Voltage AC 110 - 240V±10%, 50 - 60Hz
Operating temperature 0-45 ℃
Operating humidity 5-95%
Options Up and down working table/Rotary
Packaging Wooden box
Warranty time 1 years,laser tube 8 months
Operation Video instruction
Machine Configuration:
1390 100W Co2 Laser Engraving Cutting Machine Engraver Cutter Low Power Consumption For Crafts

Aplication Industry:

1. Mainly used for large blister word cutting, two-color plate engraving, PMMA Plexiglas engraving and cutting,nameplate & crystal & trophy & other authorized cards engraving and cutting.

2. Handicraft industry: to carve various pattern and words in wood, bamboo, ivory, bones, leather, marble, shells etc.

3. Leather garment processing industry: for real leather, synthetic leather, artificial leather, fabrics, fur complex text graphics carving, cutting, hollowing process. Like in clothes, apparel, underwear, furniture, gloves, handbags, shoes and hats, toys and car flower industries. To make them beyond fashion, outstanding .

4. The model industry: to produce sand table construction model and aircraft model, ABS board cutting, multi-layer cutting.

5. Packaging industry: To carve printing rubber plate, plastic plate, double-decker, knife-cutting board.

6. Product marking industry: for equipment nameplate, product anti-counterfate marking etc.

7. Other industries: marble, granite, glass, crystal and other decorative materials engraving and marking, paper and greeting cards and other paper craft cutting process.


1390 100W Co2 Laser Engraving Cutting Machine Engraver Cutter Low Power Consumption For Crafts

1390 100W Co2 Laser Engraving Cutting Machine Engraver Cutter Low Power Consumption For Crafts

After Sales Service

Installation & training

After the machine reach the buyer’s site,the engineers from the seller are responsible for machine installation and commissioning by using the special tools under the help of the buyer. Buyer should pay for our engineer visa fee, air tickets, accommodation, meals etc.

Training:

The common protection knowledge of laser safety

The basic principle of module and the structure of laser cutting machine

The operation skills of laser cutting machine

Equipment operation and the application notice

Skills of equipment daily maintenance,laser module adjustment and spare parts replacement.

Installation & training time is about 5 to 7 days.

Warranty & Service

1). 12 months warranty for the whole machine

2). 8 months warranty for the co2 laser source

3). Life-long maintenance

4). In the warranty period,if it break down or some parts damaged(Except the human factors and the factors of force majeure),the seller should be responsible for repair for free,the parts need to be replaced will be provided from seller for free(Except the quick-wear part).

5). After warranty we will still supply lifetime maintenance in free. Just if parts broken, we will replace with charge.

6). After sales service response time: quick response within 8 working hours,after receive the repair call, our after sales engineer will reply as soon as possible.
