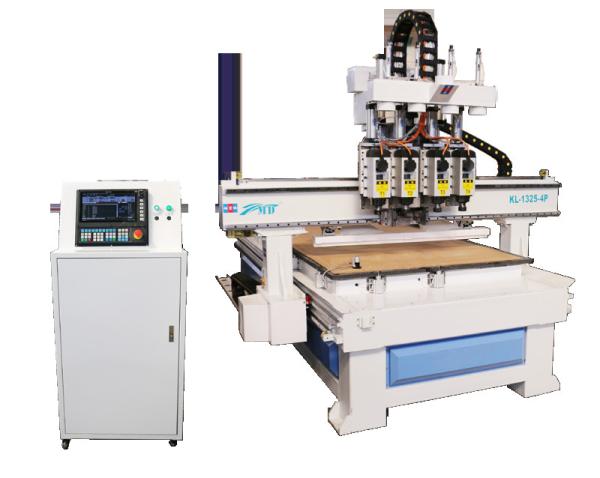

High Precision Wood Cutting CNC Router Milling Machine For MDF / Wood Board
High Precision Wood Cutting CNC Router Milling Machine For MDF / Wood Board
High Precision Wood Cutting CNC Router Milling Machine For MDF / Wood Board
High Precision Wood Cutting CNC Router Milling Machine For MDF / Wood Board
High Precision Wood Cutting CNC Router Milling Machine For MDF / Wood Board
High Precision Wood Cutting CNC Router Milling Machine For MDF / Wood Board
Specifications
Brand Name :
HYUNVAN
Model Number :
KL1325-4P
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1
Price :
NEGOTIATION
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
2DAYS
Packaging Details :
WOODEN PACKAGING
Machine Type :
KL1325-4P Wood Cutting Machines Wood CNC Router for MDF and Wood Board
Structure of the Lathe :
Cast iron lathe Bed
Machining Precision :
±0.05mm
Operating System :
95A-C
Spindle Power :
6000-18000rpm
Shape Size :
4200mm*2650mm*2000mmm
Description

High Precision Wood Cutting CNC Router Milling Machine For MDF / Wood Board

Characteristics:

* Excellent components:linear guide rail from Taiwan,X/Y axis with rack transmission,Z axis with imported screw drive features high stability,high wear resistance,high precision;

* Adds the automatic feeding system,table positioning cylinder,manual auxiliary feeding,more convenient and more efficient;

* Adopting powerful vacuum adsorption device,the table is divided into six independent areas,which can work synchronously or individually,more efficiently;

* Software compatible:open software interface,compatible with various software (such as Qingdao Harson,Gloud,Hongguang,etc.)

Product parameters:

Mode KL1325-4P
Worktable size 1300×2500mm
Machining Precision 0.05mm
Repeatable positioning accuracy 0.02mm
Mesa structure 6 areas Vacuum Absorption
The transmission structure of X,Y and Z X/Y:2000mm/min, Z:5000mm/min
Spindle power 6KW,4.5KW,3.5KW
Spindle speed 6000-18000r/min
Feeding height 200mm
Shape size 4200mm*2650mm*2000mm
Net weight 3P 1500kg/4P 1800kg
OperatingSystem 95A-3C

Machine Configuration:

High Precision Wood Cutting CNC Router Milling Machine For MDF / Wood Board

Applications:

*Panel future,furniture decoration field,cabinets,wardrobes,large area board plane-carving,antique mahogany furniture;

*Decoration field:acrylic,windows,aluminium panels,decorative materials,the medium board.

High Precision Wood Cutting CNC Router Milling Machine For MDF / Wood Board

Our service:

1. The company who initially provide 2 years warranty in the world,

2. 24-hour full after sales service.

3. All finished machine we delivered are 100% strictly tested by our QC department and engineering department.

4. OEM Service Customized and OEM orders are welcome due to our abundant experiences. All the OEM services are free.
