Computer Control Optical Fiber Laser Marking Machine All In One Design
Computer Control Optical Fiber Laser Marking Machine All In One Design
Computer Control Optical Fiber Laser Marking Machine All In One Design
Computer Control Optical Fiber Laser Marking Machine All In One Design
Specifications
Brand Name :
HYUNVAN
Model Number :
HYY-FP20
Certification :
CE FDA
Place of Origin :
CHINA
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300pcs/month
Delivery Time :
2 working days
Packaging Details :
seaworthy wooden cases,Size:940*790*1550mm
Product Name :
Optical Mini Portable Fiber Laser Marking Carving Machine for Metal Materials
APPLICATION :
Brass plate, Galvanized sheet , Aluminum
Laser repetition frequency :
20kHz~80kHz
Laser power :
20W / 30W / 50W/100W
Wave length of laser :
1064nm
Repeated Frequency :
0-100KHZ
Description

Metal Materials Optical Fiber Laser Marking Machine All In One Design

Product Description:

Fiber laser making machine is one of the most advanced laser marking equipment in the world nowadays, because the features of stable output power, great optical model, excellent quality of laser beam, fast working speed and best marking effect and efficiency. Also, it is easy to operate, has no wearing parts, low power, consumption, more incomparable advantages like:better and thinner marking lines, capable of being applied into ore advanced industries needing higher demand of depth, smoothness and precision, in order to perfectly meet requirments of consecutive working in industries.

Technical Parameters

Machine Type Optical Mini Portable Fiber Laser Marking Carving Machine for Metal Materials
Laser Source IPG, Germany brand
Raycus, best brand in China
Output Power 10w/20w/30w/50w
Wavelength 1064nm
Beam Quality <2
Repeat Frequency 10khz— 100khz
Pulse Energy 2mJ
Beam Divergence -0.3 to +0.3mrad
Laser Class IV
Resolution 18μ
Repeatablility 50μ
Marking Scope 110mmx 110mm/ 175mmx 175mm (optional 200*200mm, 300*300mm)
Linear Speed 800 character/ s
Marking Linear Speed ≤12,000mm/s
Marking Depth Max. 1.0- 1.5mm (hard steel)
Min. Line Width 0.012mm
Min. Character Size 0.15mm
Repeat Accuracy ±0.003mm
Cooling system Air cooling

Advantage:

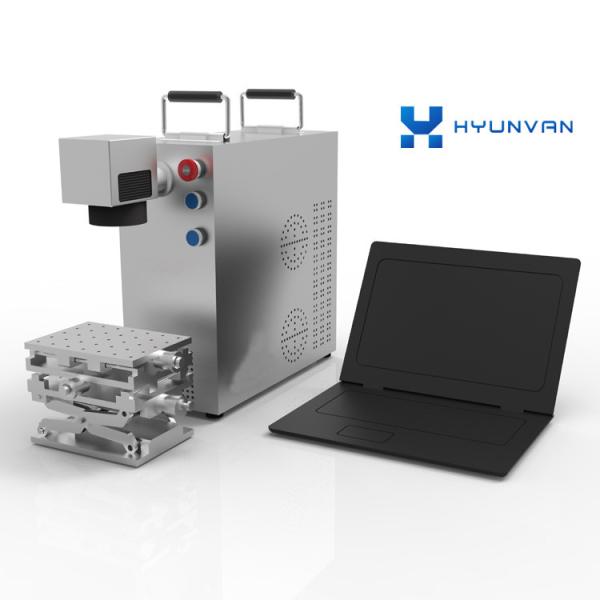

• Portable type, in small size, the whole system is just as a case of the desktop computer in size, it is the smallest fiber laser marking machine in the present market.
• Low cost, saving energy, the whole power is just only 500w. Compared to lamp-pumped and semiconductor laser marking machines, it can save using cost.
• One modular design, easy maintenance, compact size. Save your valuable floor space.

• Industrial machine type, popular layout, excellent effect of dust proof.
• All-in–one design of electric cabinet and working table.
• High space between lifting table and working table, especially used for marking on small size work piece.

Machine Configuration:

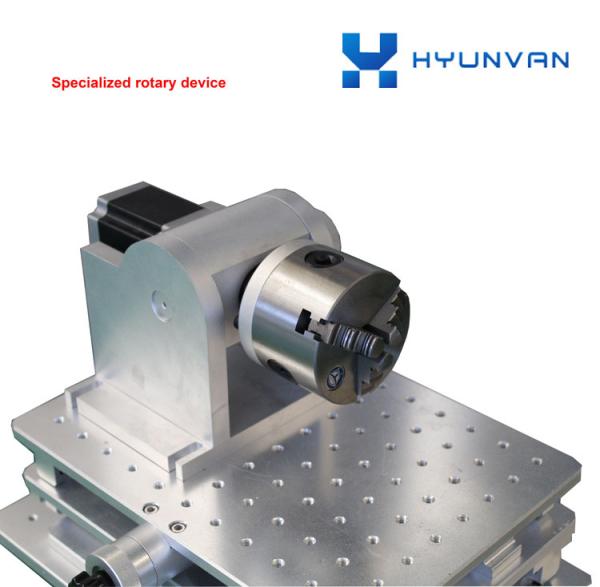

Rator:Fix the product and realize rotating marking.Any size can be customized.(the standard diameter size is 50mm,80mm,10mm)
Two-dimensional mobile workbench: can be lifting and shifting from left to right.Easy to adjust the laser focus distance
Fiber laser source:The material can equip fiber laser according to customer demands.Perfect laser beam and long life 100000 hours.
Galvanometer:High-speed Scanner Head,Excellent accuracy.Good seal,water proof and dust proof,Ultra-compact size,operate smart.

Applications:

1. All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition
2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material
