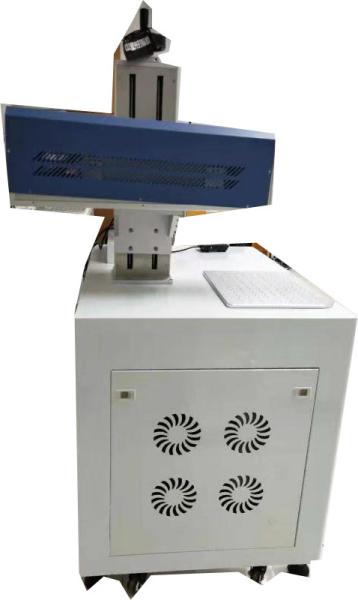

High Precision Ultraviolet Laser Marking Machine , Glass Leather UV Laser Printer
High Precision Ultraviolet Laser Marking Machine , Glass Leather UV Laser Printer
Specifications
Brand Name :
Hyunvan
Model Number :
HYY-FC
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30Set Per Month
Delivery Time :
2 Days
Packaging Details :
Wooden Carton
Product Name :
UV Laser Marking Machine for Plastic Ceramic Metal ABS Metal Glass Leather
aser wavelength :
355nm
Graphic Format Supported :
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, JPG,PNG
Marking Speed :
1-8000mm/s
Repetition precision :
0.002mm
Repetition rate :
20KHZ-200KHZ
Description

High Precision Ultraviolet Laser Marking Machine , Glass Leather UV Laser Printer

Product Description:

​Ultraviolet lasers have benefits that other lasers do not have that is Ability to limit thermal stress.This is because most UV laser systems are running at low power.

By using techniques sometimes called "cold ablation",the beam of the UV laser produces a reduced heat affected zone and minimize the effects of edge processing, carbonation, and other thermal stresses.These negative effects are usually present with higher power lasers.

Function

UV laser marking machine can mark logo, character, serial number, bar code, data matrix on both metals and some non-metals. It does not have consumable. It’s very cost effective. It boasts fast marking speed and high marking precision. It’s widely used and well accepted in prevailing international marker



Technical Parameters:

Model number UV Laser Marking Machine for Plastic Ceramic Metal ABS Metal Glass Leather
Average output power 3w/5w
Laser wavelength 0.355um
Graphics formats PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO.DXF
Marking Scope 100*100mm/150*150mm
Engraving line speed <=7000mm/s
The minimum line width 0.01mm
Power 600W/800W/1000W
Engraving Depth <=3mm
Minimum character 0.2mm
Repeatability +/-0.002mm
Marking size 100x100,150*150mm
Cooling method Air cooling
Working voltage 110/220v+-10%,50/60HZ


Product Advantages:

1) Intergrative design, compact structure.


2) Same configuration and good quality, dealer price.


3) One year warranty, engineers available to service machinery overseas.


4) Excellent light quality:
Comparing with traditional solid laser marking machine, angle of divergence is only 1/4 of diode pump laser device. It is especially suitable for precision marking.

5) Low usage cost:
Photo electric conversion efficiency max is 30%, whole machine power consumption is less than 500W, it is the 1/10 of laser pump lamp marking machine. It greatly saves the cost in power consumption.


6) Free maintenance & long service life:
Using laser diode as the source of pump, full sealing light path design, its average no-failure operation is over 100 thousand hours.

Industry Applications:

Marking materials:

Metals: carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc; rare metal and alloy steel (gold, silver,titanium, etc.); special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy)

Non-metals: plastics, rubber, resin, carton box, etc.

Applied industries:

electronic components, IC, electrical appliances, mobile phones, plastic buttons, color paper, food packaging, clocks and watches, molds, gaskets and seals, bearing, auto parts, hardware, tools, building materials, PVC tubes, etc.
