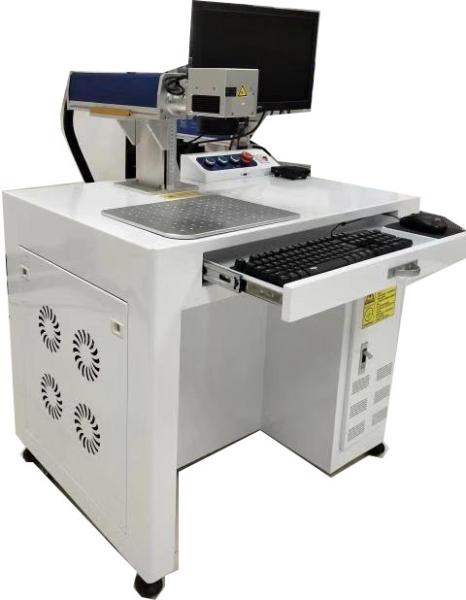

Glass Diamond Superfine UV Laser Engraving Machine Air Cooling Way Compact Design
Glass Diamond Superfine UV Laser Engraving Machine Air Cooling Way Compact Design
Glass Diamond Superfine UV Laser Engraving Machine Air Cooling Way Compact Design
Glass Diamond Superfine UV Laser Engraving Machine Air Cooling Way Compact Design
Specifications
Brand Name :
Hyunvan
Model Number :
HYY-FC
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30Set Per Month
Delivery Time :
2 Days
Packaging Details :
Wooden Carton
Product Name :
UV Laser Marking Machine for Plastic Ceramic Metal ABS Metal Glass Leather
Color :
Customizable
Graphic Format Supported :
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, JPG,PNG
Control Software :
EZCAD
Laser Power :
3W/5W/10W
Power supply :
220V/50Hz/500W
Description

Glass Diamond Superfine UV Laser Engraving Machine Air Cooling Way Compact Design

Product Description:

High quality uv laser marking engraving machine 3w laser printer for USB cable belongs to the series of laser marking machine, but its use of 355nm wavelength. It has small focus light spot, reduce material mechanical deformation. High peak power, small pulse width, small thermal effects of processing. It can do ultra-fine marking on special materials.

If you have the high requirement for the marking effect, HYUNVAN UV laser marking machine is the best choice.


.

Product Advantages:


• Hyper-fine Laser marking base on Imported UV Laser marking machine's good light beam quality and small focusing spot.
• Good processing effect and wide applicable material type base on mild heat-affected of UV Laser marking.
• High processing accuracy, high marking speed and good stability base on imported high-speed galvanometer.
• Convenient Operation: Convenient data processing with dedicated laser marking software. Interface is simple and friendly, easy operation.
• Available support file format: PLT, DXF, AI, SDT, BMP, JPG, JPEG,TGA, PNG, TIF, TIFF, etc.
• Support one-dimensional code and two-dimensional code marking such as Code39, EAN, PDF417, DATAMATRIX, etc.
• Option function: marking-on-the-fling, rotary marking and X,Y 2D platform.


Technical Parameters

Model number UV Laser Marking Machine for Plastic Ceramic Metal ABS Metal Glass Leather
Average output power 3w/5w
Laser wavelength 0.355um
Graphics formats PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO.DXF
Marking Scope 100*100mm/150*150mm
Engraving line speed <=7000mm/s
The minimum line width 0.01mm
Power 600W/800W/1000W
Engraving Depth <=3mm
Minimum character 0.2mm
Repeatability +/-0.002mm
Marking size 100x100,150*150mm
Cooling method Air cooling
Working voltage 110/220v+-10%,50/60HZ


Main Features

1. Markings are permanent with high abrasion resistance.

2. Low use-cost, high speed, high production efficiency.

3. No maintenance laser source: service time 100,000 hours.

4. Small size,low power consumption, Perfect output beam quality


Industry Applications:

Mainly based on its unique low-power laser beam. It is especially suitable for the high-end market of ultra-fine processing. The surfaces of bottles for cosmetics, pharmaceuticals, food and other high-molecular materials are marked with fine effects and clear and firm markings.

Better than ink coding and no pollution; flexible pcb board marking, dicing; silicon wafer micro hole, blind hole processing; LCD liquid crystal glass two-dimensional code marking, glass surface punching, metal surface coating marking, Plastic buttons, electronic components, gifts, communications equipment, building materials, and so on.

Electronic components, integrated chips, electrical appliances, communication equipment, tools, precision machinery, frames, watches and clocks, auto parts, crystal glass marking, plastic cases ETC.
