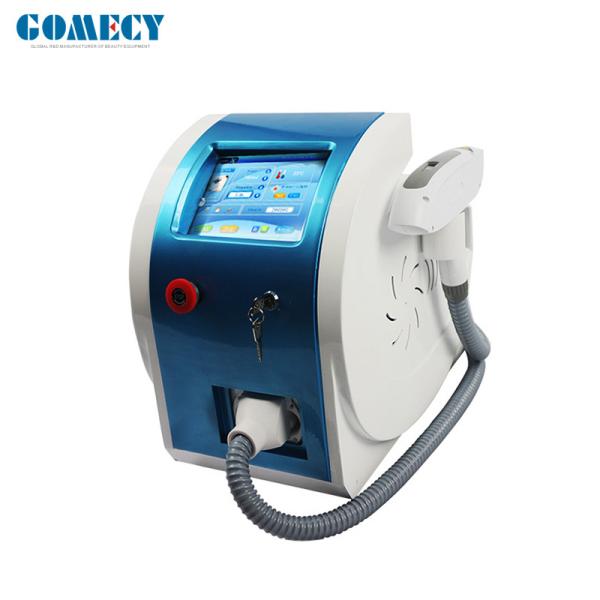

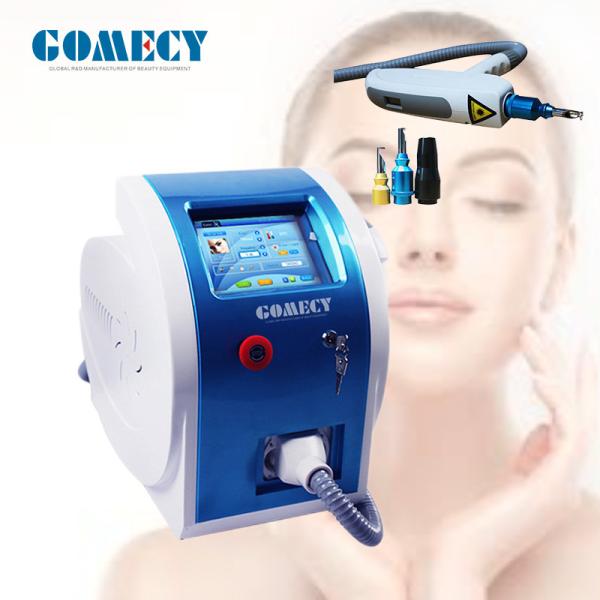

Most Popular Nd yag Tattoo Removal Laser Q-switch Machine For Skin Whitening
Theory:
The Q-Switched Nd:YAG laser with multiple wavelengths (532nm, 1064nm, and 1320nm) is a highly versatile laser
system used in various medical and cosmetic procedures. Each of these wavelengths targets specific skin concerns
and conditions effectively. Here's an overview of each wavelength's applications:
532nm Wavelength:
Indications: The 532nm wavelength is in the green spectrum of light and is primarily used for superficial skin concerns.
Applications:
Pigmented Lesions: It is effective in treating superficial pigmented lesions like freckles, sunspots, and some red and brown birthmarks.
Tattoo Removal: It can target specific tattoo ink colors, particularly red, orange, and some yellows.
Skin Rejuvenation: The 532nm wavelength can stimulate collagen production and improve overall skin texture and tone.
1064nm Wavelength:
Indications: The 1064nm wavelength is in the infrared spectrum and penetrates deeper into the skin, making it suitable
for more extensive skin concerns.
Applications:
Deeper Pigmented Lesions: It is used for treating deeper pigmented lesions, including darker birthmarks, melasma,
and deep-set tattoos, especially black and dark blue inks.
Skin Rejuvenation: It can help with skin tightening, collagen production, and overall skin rejuvenation.
1320nm Wavelength:
Indications: The 1320nm wavelength is often referred to as the "non-ablative" wavelength and is absorbed by water
in the skin.
Applications:
Skin Resurfacing: It is used for non-ablative skin resurfacing, helping to improve skin texture, reduce fine lines, wrinkles,
and acne scars.
Skin Tightening: The 1320nm wavelength stimulates collagen production, leading to improved skin elasticity and firmness.
Overall Skin Rejuvenation: It can enhance overall skin quality and appearance without the downtime associated with more
aggressive skin resurfacing treatments.
Application:
1064nm +532nm + Carbon Peel (1320nm)
1. Remove tattoo, tattoo eyebrow, eyeline, lip line
2. Remove birthmark, Mole, age spot
3. Skin rejuvenation with carbon cream
Application:
Specification:
Operation Interface | 8.4” TFT True color LCD screen |
Wavelength | 1064nm/532nm/1320nm |
Spot Diameter | 1-5mm |
Width of pulse | <10nm |
Pulse energy | 532nm/1064nm(1-2000mJ)/1320nm |
Energy | 1 - 120J/cm² (HR Mode) |
YAG Bar size | Φ6 |
Repetition Rate | 1-10 Hz adjustable |
Power | 400W |
Aiming beam | Guided by red light |
Cooling system | Air cooling+ Close Water Circulation |
