Technical parameter:
Technology | IPL | Input Power | 1800W |
Light Guide | Crystal Optical System | Cooling System | Semiconductor+built-in Water+Air Cooling Triple Systems |
IPL Energy Density | 1-60J/cm2 | Pulse duration/width | 1-30ms |
SHR Energy Density | 1-60J/cm2 | SHR Frequency | 1-10Hz |
Trait and advantage:
2018 IPL+SHR laser from china
Permanent Hair-removal;
Simple Operation and Maintenance;
Safe and Comfortable Treatment;
Effective and Lasting Treatment Effect
IPL working principle:
IPL treatment can destroys small spider veins capillaries and excess blood that has leaked into the skin. for the pulses of light are controlled and precise, they can treat the spider veins successfully without affecting surrounding tissue.
The pulses of light emit heat that selectively damages or destroys abnormal veins. Eventually, the treated veins are absorbed by the body and disappear.
It is diffrent from laser treatment, because IPL treatment is suitable for treating veins that are slightly deeper in the skin.
The treatment results of IPL treatment last for approximately a year or longer. A total of 2 to 4 treatments are typically required in order to achieve optimal results.
Specification:
Light Source: | Intense Pulsed Light | Wave Length: | 530-1200 nm,640-1200 nm |

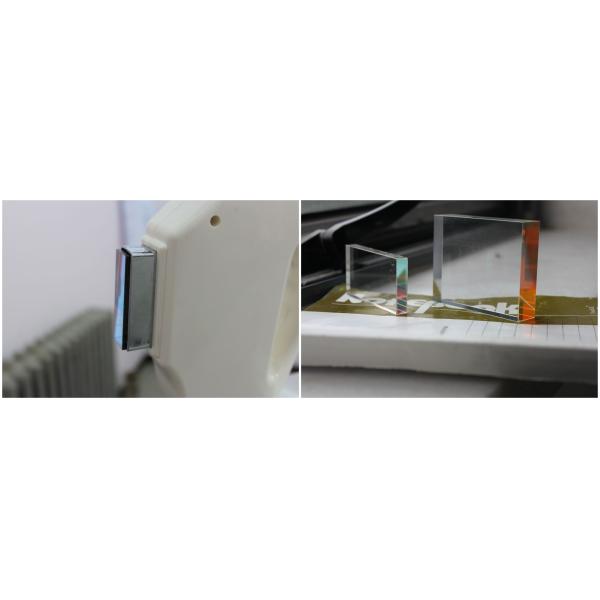

Light guide: | Crystal light guide | Control Mode | Touch Control |
Safety Classification | Class I, Type B | Energy density | 10-60J/cm2 (Deviation≤±2%) |
Pulse duration/width | 1-30ms | Frequency | ≤1P/3S |
Spot size | 8×34mm(SR/VR) 16×57mm (HR) (Deviation ≤0.2mm) | Spot Surface Temperature | 0-5 Degrees Celsius |

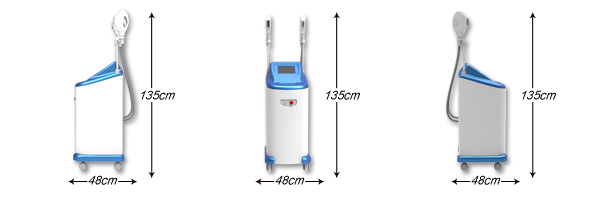

Cooling system | Semiconductor Refrigeration +Water Cooling +Wind Cooling | Size | length Width Height 470×360×1040mm |
Weight | 40kg | Fuse Specification | Ø5×25 10A |
Input Power | 1800W | Power requirement | AC220V±10% 10A 50HZ , AC110V±10% 10A 60HZ |
Treatment scope:
