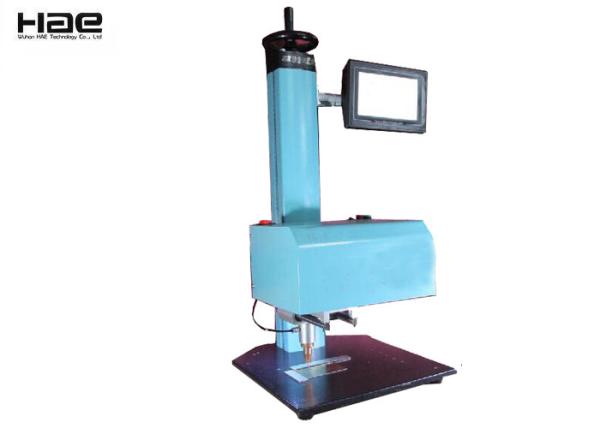

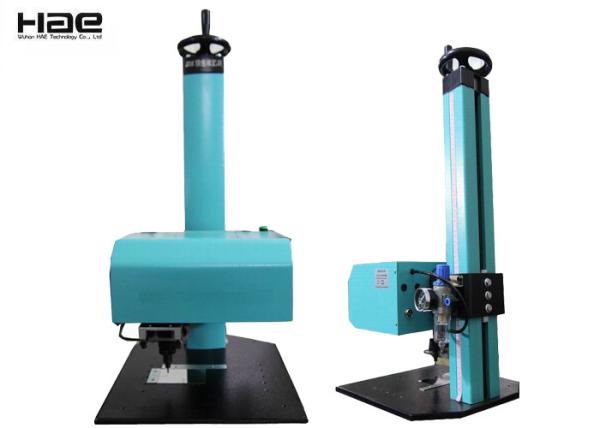

Industrial Auto Parts Electric Dot Peen Marking Machine

Product Description

The device comes with 7 inch touch screen, can be on touch screen touch directly input, no air, no

computer!Plug can be used.

Standards for two-way cylindrical guide (very stable), print range 170 * 110 mm (there are more 250-300

* 200 mm * 150 mm).

Specification :

Model : HAE-E170 Electric engraving machine

Operation System: Windows2000, Windows XP, Windows 7

Marking Area: 170×110 mm customize 250 x 150 mm, 300 x 200 mm

Min Character: 1×1 mm (character size controlled by software)

Marking Speed: 30-200 mm/s(3-6 character/second)

Marking Depth: 0- 1 mm (depends on material)

Lifting Height: 0-50 mm

Marking Pin Hardness: HRC95°

Impact Frequency: 300-400 times/second

Marking Material: All kinds of materials up to a hardness of HRC95

Multiple Fonts: Numerous fonds up to more than 100,supporting edit fonts

Graphics: Compatible with AutoCAD,CorelDRAW, CAXA

Accuracy Guarantee: Character marking accuracy≤0.01 after 5 years working

N.W/G.W : 33/40kg

Dimensions: 400 mm L×500 mm W×800 mm H

Feature:

1. Patent Portable Light Electric Type

2. Marking speed:3-6 character/second

3. Marking depth:0-1mm/depents

4. Graphics preview function

5. Alloy marking pin hardness HRA95

6. USB interface, No need Laptop

Packaging & Shipping :

Our delivery time is depends on the order quantity ,generally in 3 -8 days .

Our packing boxes are three layer of corrugated board boxes,ensure that the product can arrive safely to

your hands.

According to different products,our packing method is different .

We have two types of packing: suit for air and ocean transportation.

Packing by wooden case, more security delivery with heavier weight and reasonable freight
